AR00.19-P-0120-12A Remove contacts from FIN sensor contact coupling

AR00.19-P-0120-12A Remove Contacts From FIN Sensor Contact Coupling







220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers







220 589 01 99 56, LSK 8 blade

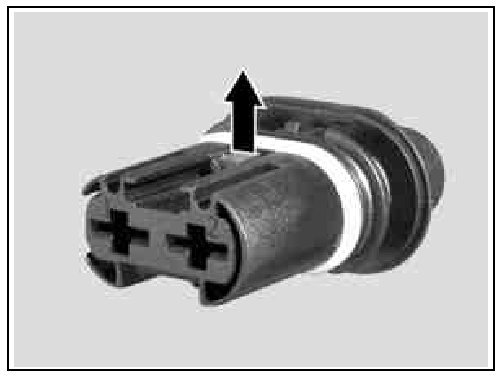

Unfasten secondary release on version with spring (shown on laminated sensor contact, Junior Power Timer coupling)







1 Insert a suitable tool between the spring and the housing.
2 Press out the spring .

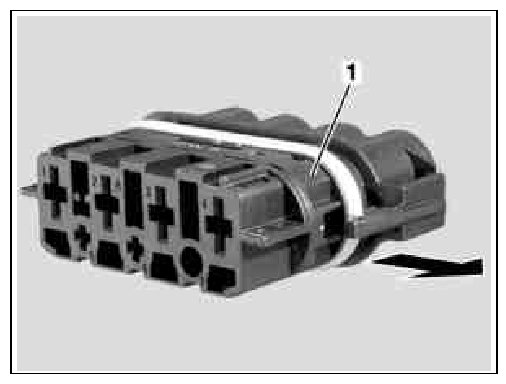

Unfasten secondary release on version with slide (shown on laminated sensor contact, Junior Power Timer coupling)







3 Push (1) slider out of locked position in direction of arrow.

Unfasten secondary release on version with pin







4 Using a suitable tool, push pin out of last detent in direction shown by arrow.

Unpin female contacts from coupling

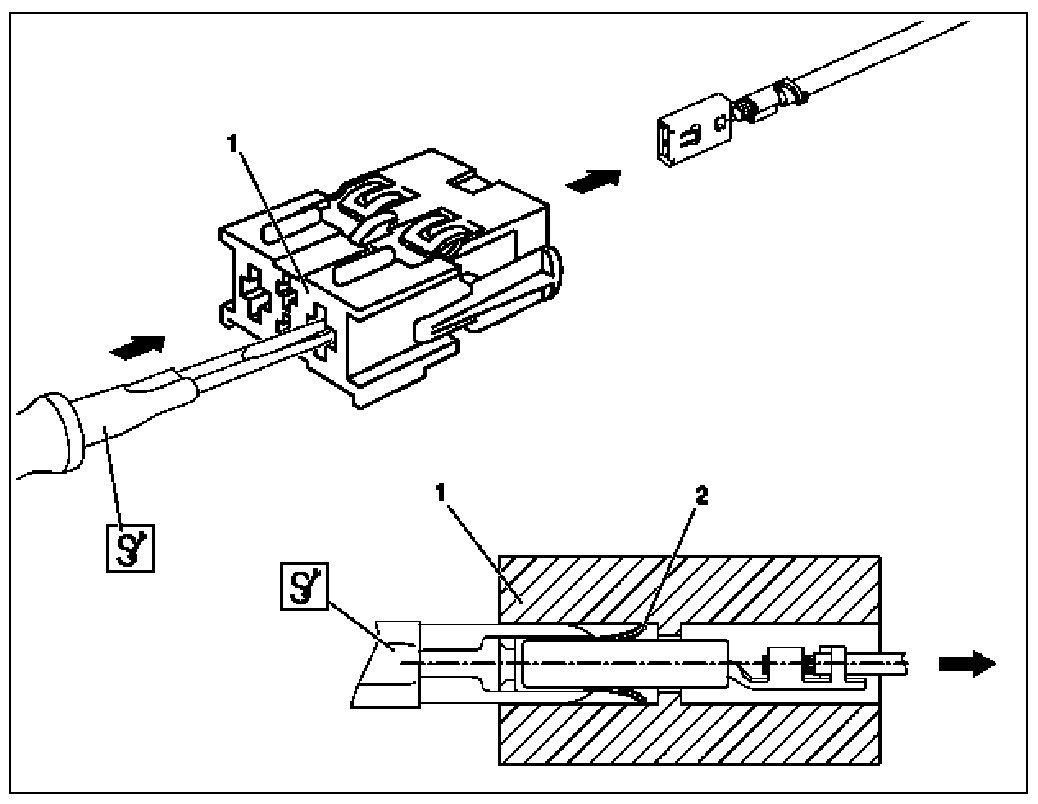

5 Insert blade holder with clamping pliers and LSK 8 blade from front side though openings at contact cavity of coupling (1).
This step compresses the spring shackles (2) on the female contact.
6 A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
