AR00.19-P-0120-03B Remove Contacts From Micro Quadlock System Connector

AR00.19-P-0120-03B Remove Contacts From Micro Quadlock System Connector
- Micro-Quadlock-System-Connector Version 2







220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers







220 589 01 99 60, MQS blade


Unfasten secondary release on version with lock tab

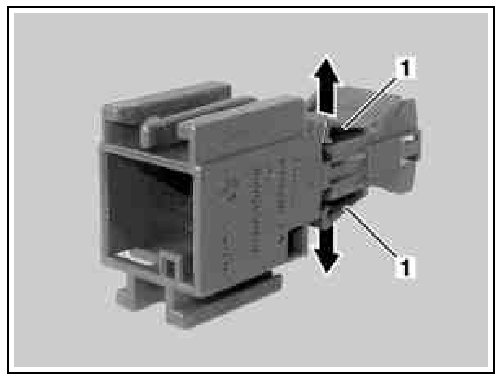

1 Push suitable tool underneath locking shackles (1).
2 Pry up the lock tabs (1) in direction shown by arrow.


Unpin contact pins from the connector

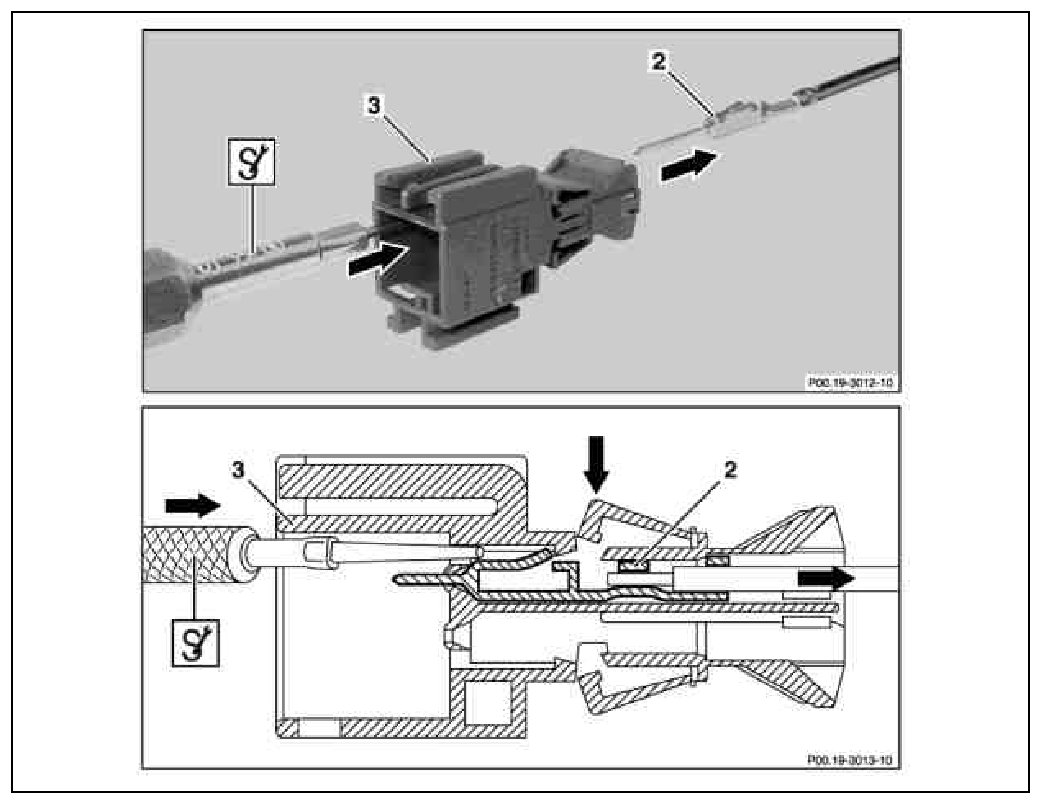

3 Insert blade holder with clamping pliers and MQS blade from front side though opening above contact cavity of connector housing (3).
This presses down the spring shackle at the contact pin (2).
4 A slight tug on the corresponding cable will pull the contact pin (2) out of the cavity of the plug.
Foil contacts must be unpinned at the same time. Tug on the foil while pressing down the spring to remove the foil.
