Relay Box: Description and Operation

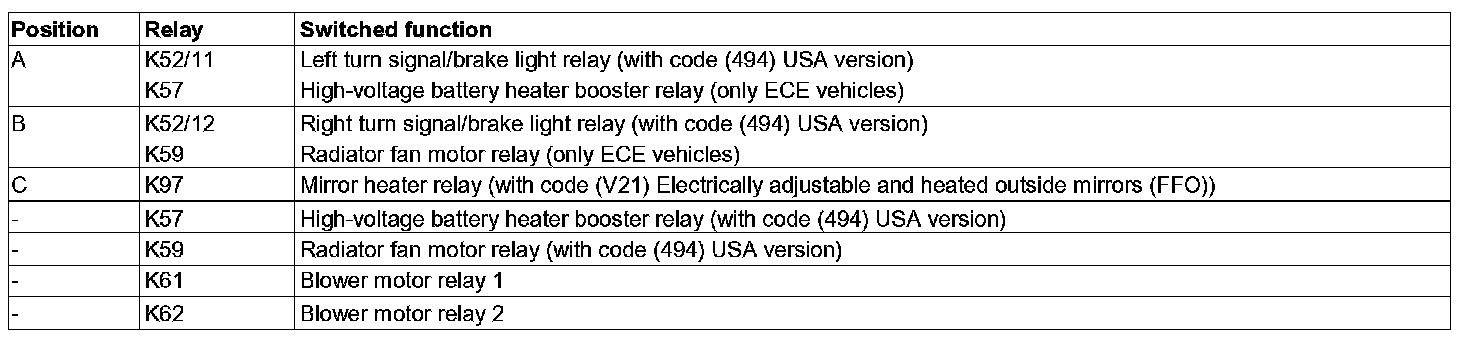

GF54.15-P-1255-21MEV Fuse And Relay Box Relay Assignment

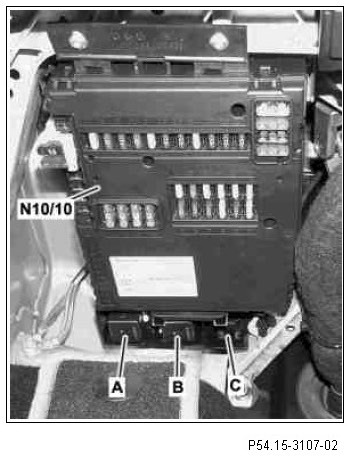

With Economic Commission for Europe (ECE) vehicles
N10/10 SAM control unit
A to C Relay sockets

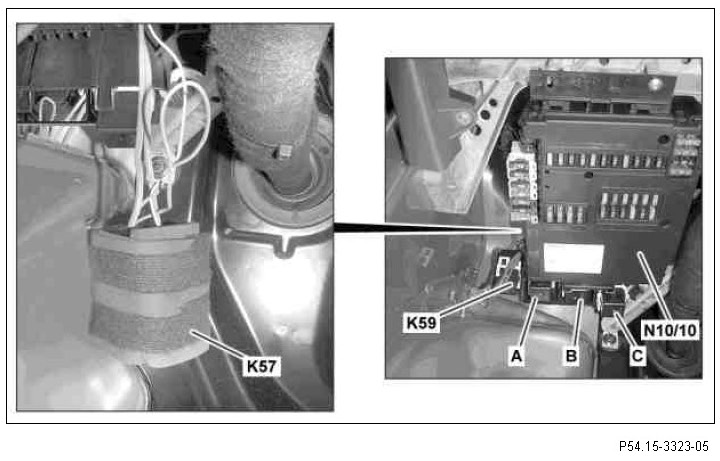

With code (494) USA version
N10/10 SAM control unit
A to C Relay sockets
K57 High-voltage battery heater booster relay
K59 Radiator fan motor relay

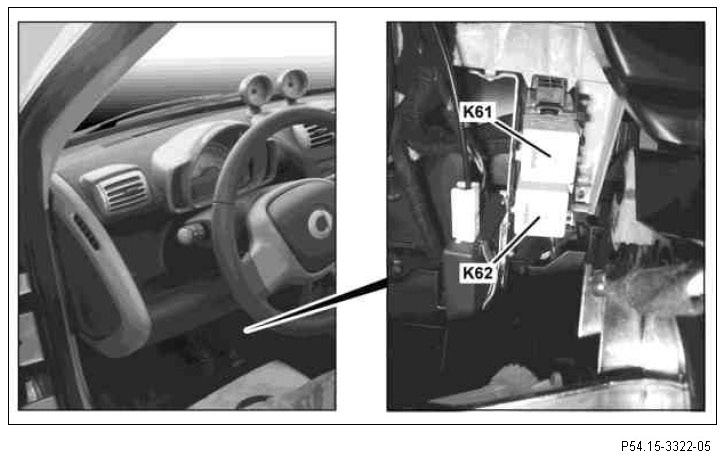

K61 Blower motor relay 1
K62 Blower motor relay 2
