Power and Ground Distribution: Description and Operation

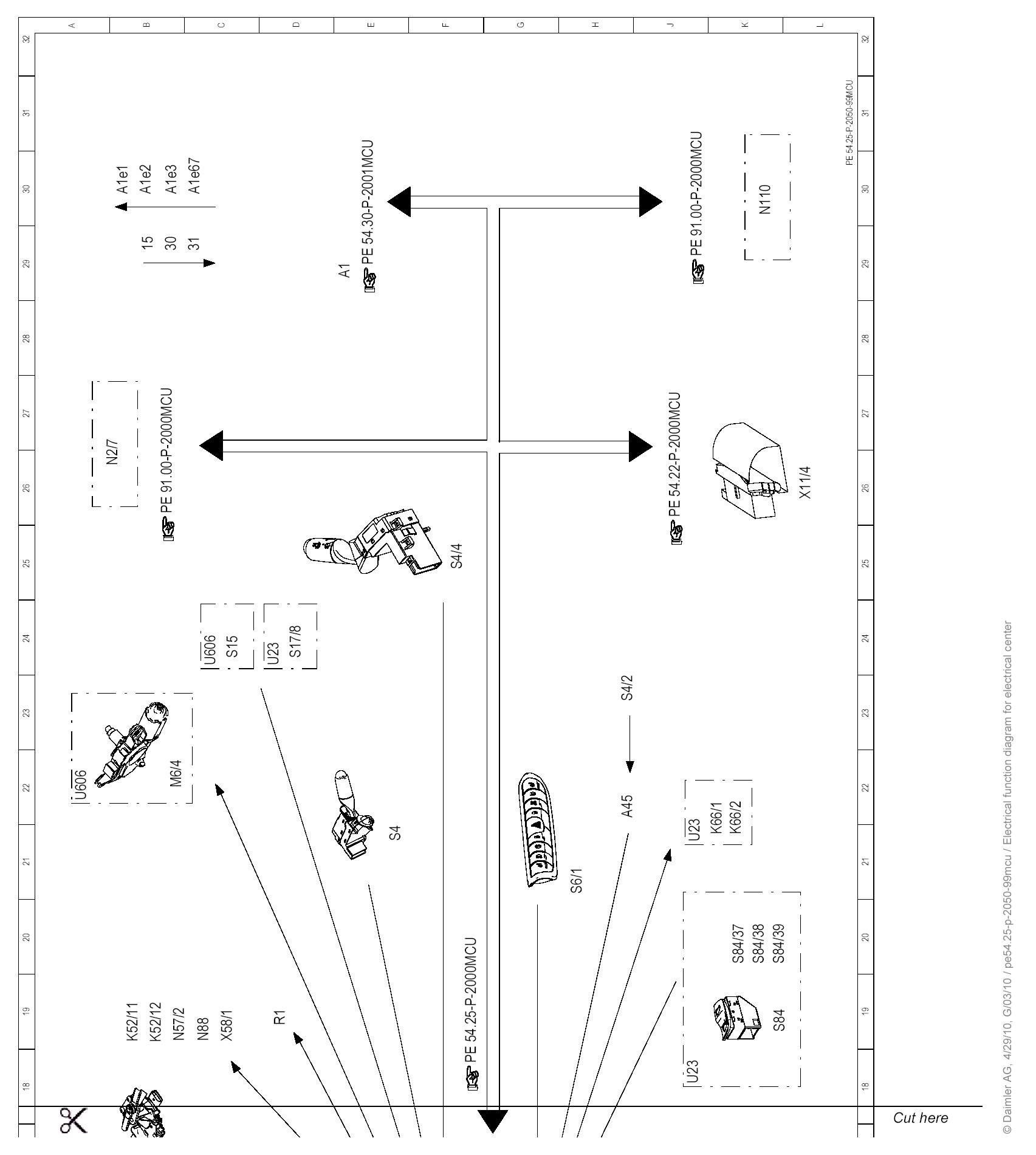

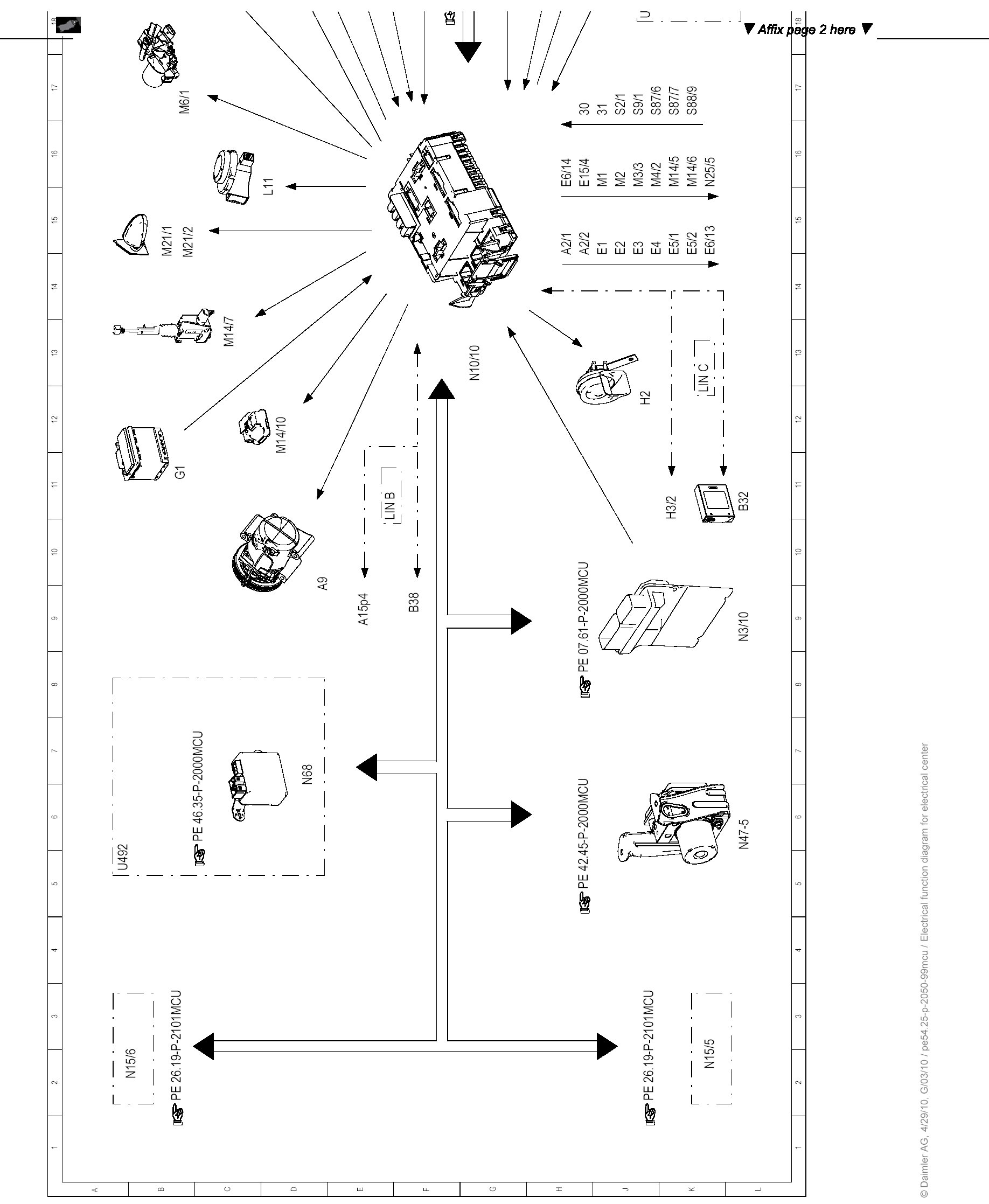

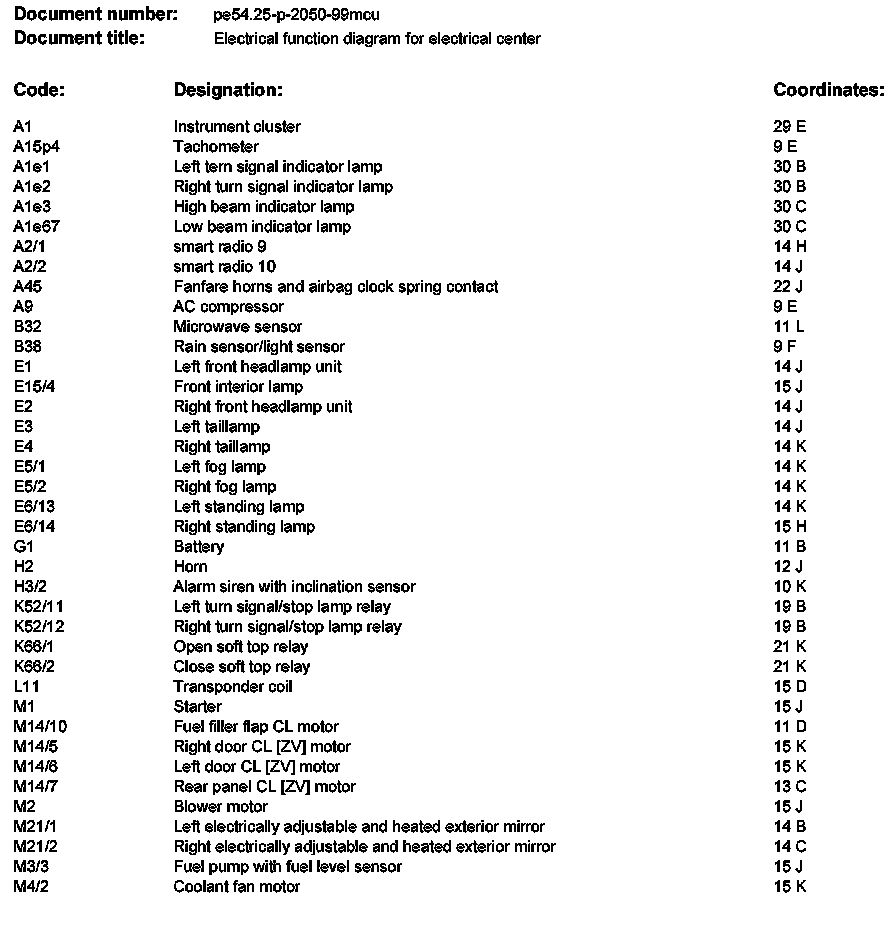

pe54.25-p-2050mcu Electrical Function Diagram For Electrical Center
