Home >> Smart >> 2012 >> ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Frame >> Rear Subframe

Rear Subframe

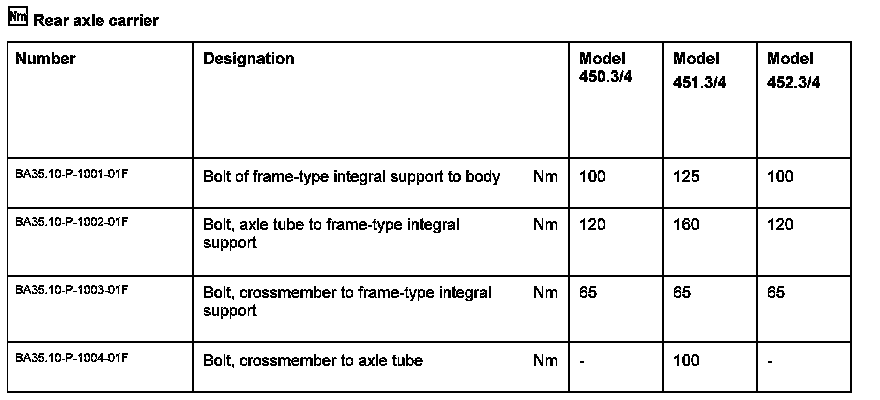

BA35.10-P-1000-01F Rear Axle Carrier
