Seat Belt Tension Sensor: Description and Operation

GF91.60-P-4108MCU Belt Tension Sensor Component Description

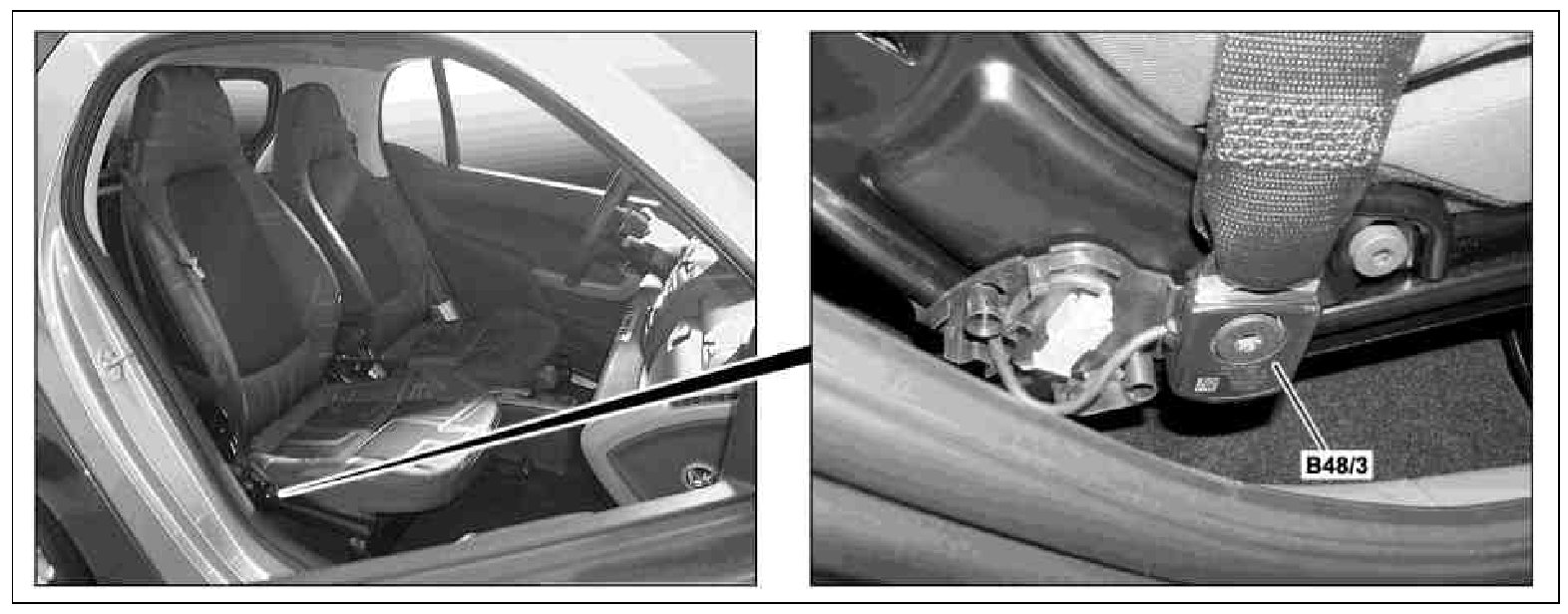

B48/3 Belt tension sensor

Location
The belt tension sensor is located at the belt end fitting of the seat belt on the front passenger seat.

Task
The belt tension sensor measures the tension of the belt. This value is read in by the Weight Sensing System (WSS) control unit (N110) to enable any corrections to be made to the weight classification.
