Brake Light Switch: Service and Repair

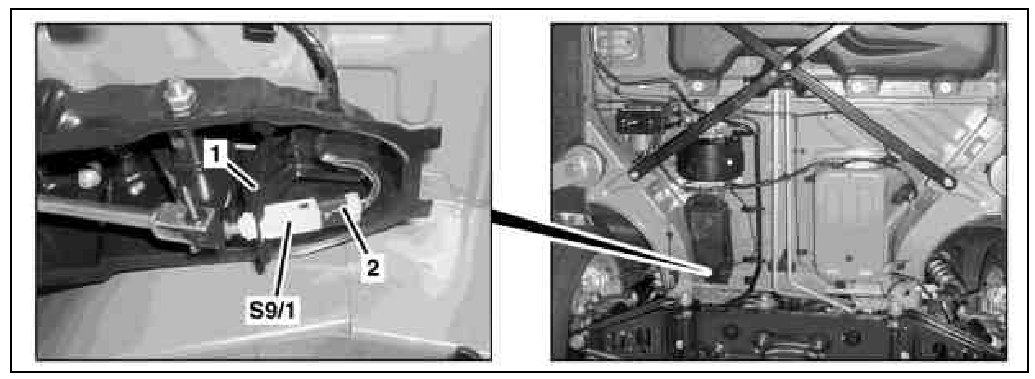

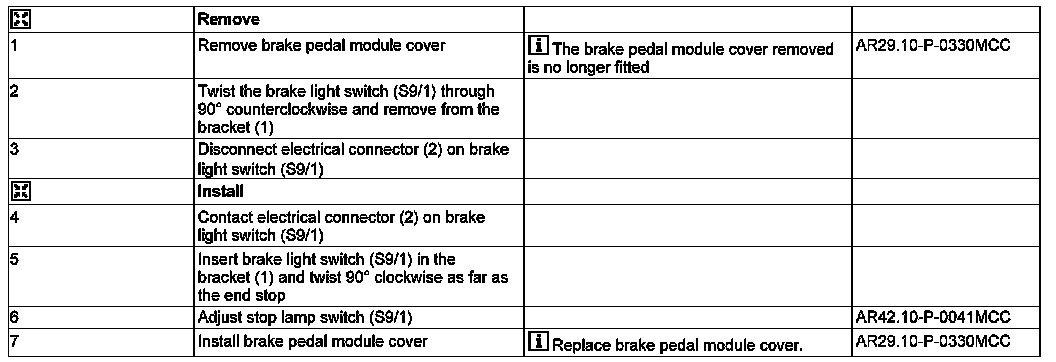

AR42.10-P-0040MCC Remove/Install Mechanical Stop Lamp Switch








1 Bracket
2 Electrical connector
S9/1 Stop lamp switch
