Seat Belt Guide Track: Service and Repair

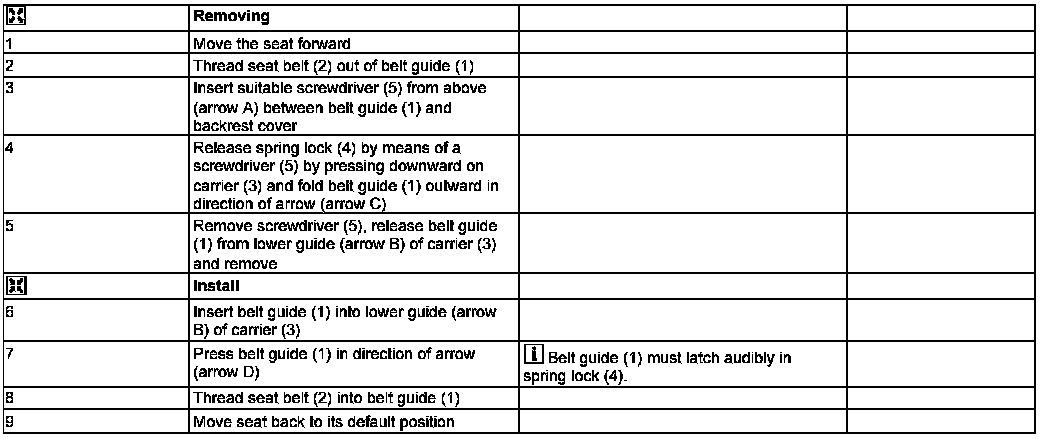

AR91.45-P-0500MCC Remove/Install Seat Belt Guide


Removal of belt guide is shown with the foam section removed for sake of clarity







1 Seat belt guide
2 Seat belt
3 Carrier
4 Spring lock
5 Screwdriver
