AR91.40-P-1515MCU Remove/Install Seat Belt Buckle (Front Seat)



AR91.40-P-1515MCU Remove/Install Seat Belt Buckle (front Seat)

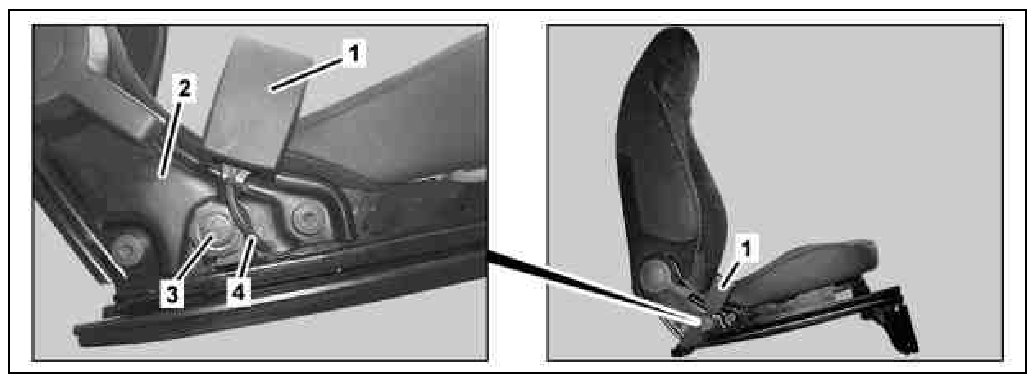

1 Seat belt buckle
2 Backrest frame
3 Screw
4 Seat belt buckle wiring harness
