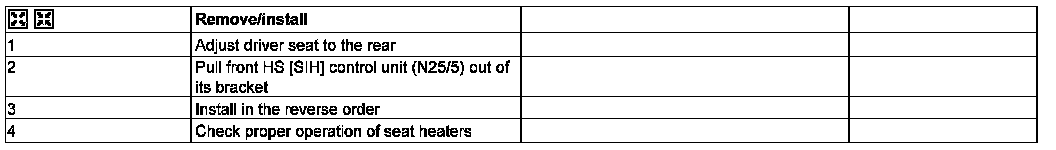

AR91.30-P-0030MCU Remove/Install Heated Seats Control Unit



AR91.30-P-0030MCU Remove/Install Heated Seats Control Unit
- with CODE (S17) Seat heaters (FFO)

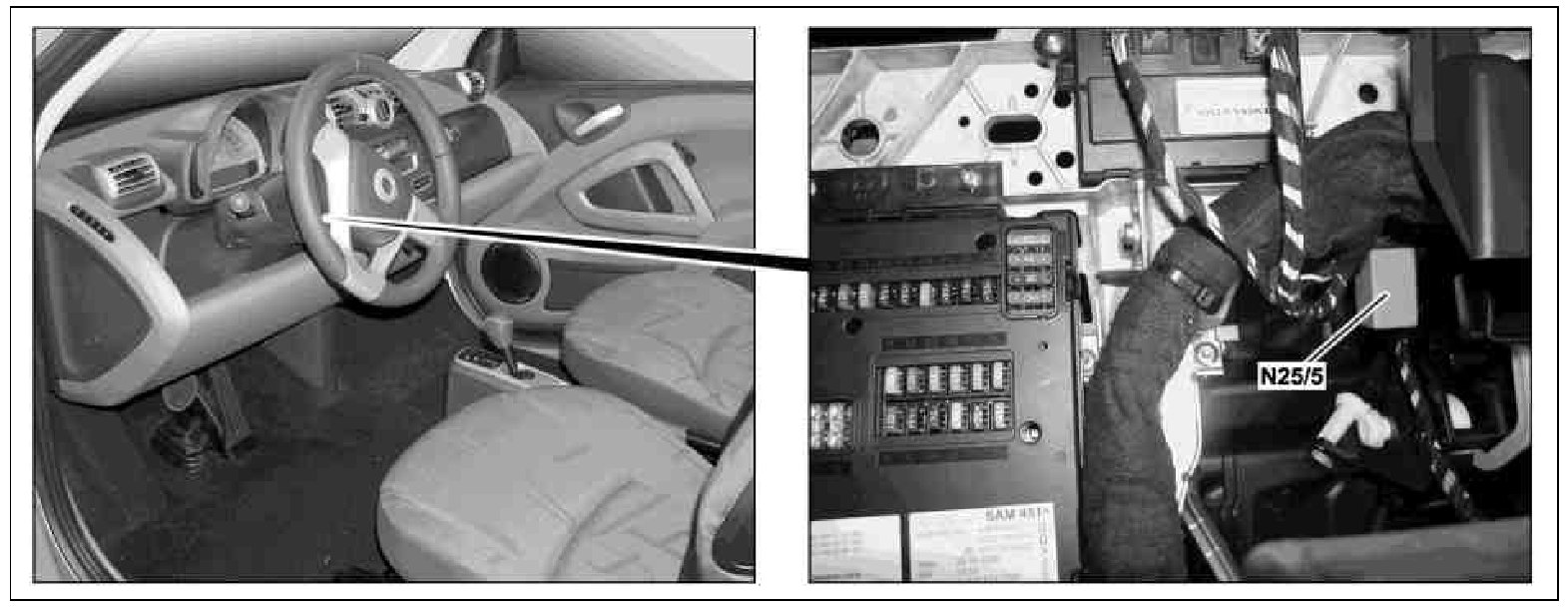

N25/5 Front HS [SIH] control unit
