AR00.19-P-0120-07A Remove Contacts From Junior Power Timer Coupling

AR00.19-P-0120-07A Remove Contacts From Junior Power Timer Coupling







220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers







220 589 01 99 61, JPT / SPT blade







000 589 13 99 30, MCP 2.8 / Fl blade. 2.8 / JPT / SPT

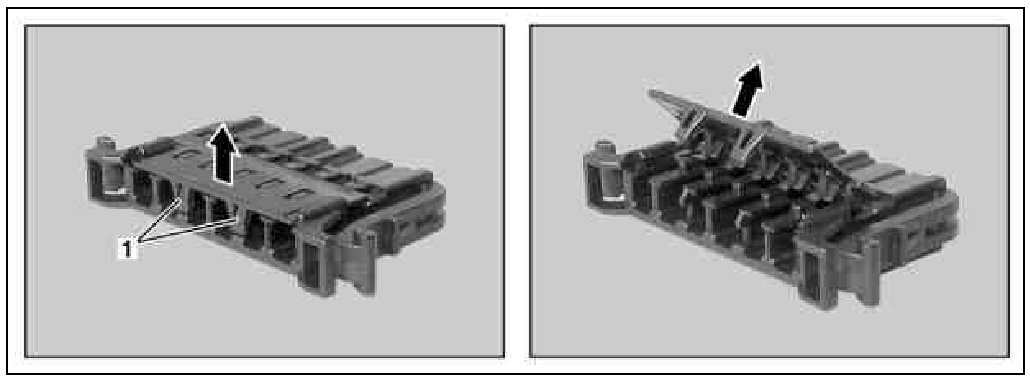

Unfasten secondary release on version with tab







1 Using a suitable tool, at the line side unlock the lugs (1) on lock tab.
2 Open the tab.

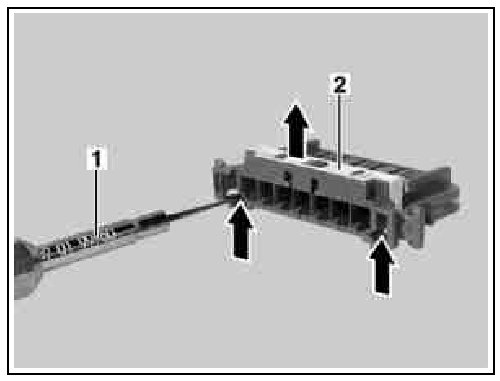

Unfasten secondary release on version with securing clip







3 Lift side tabs of retainer (2) using a suitable tool (1).
4 Pull retainer in direction of arrow.

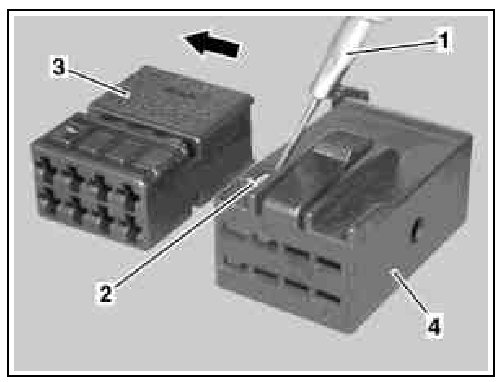

Unfasten secondary release on version with cap







5 Lift locking catch (2) of cap (4) using a suitable tool (1).
6 Pull coupling housing (3) out of cap in direction of arrow.

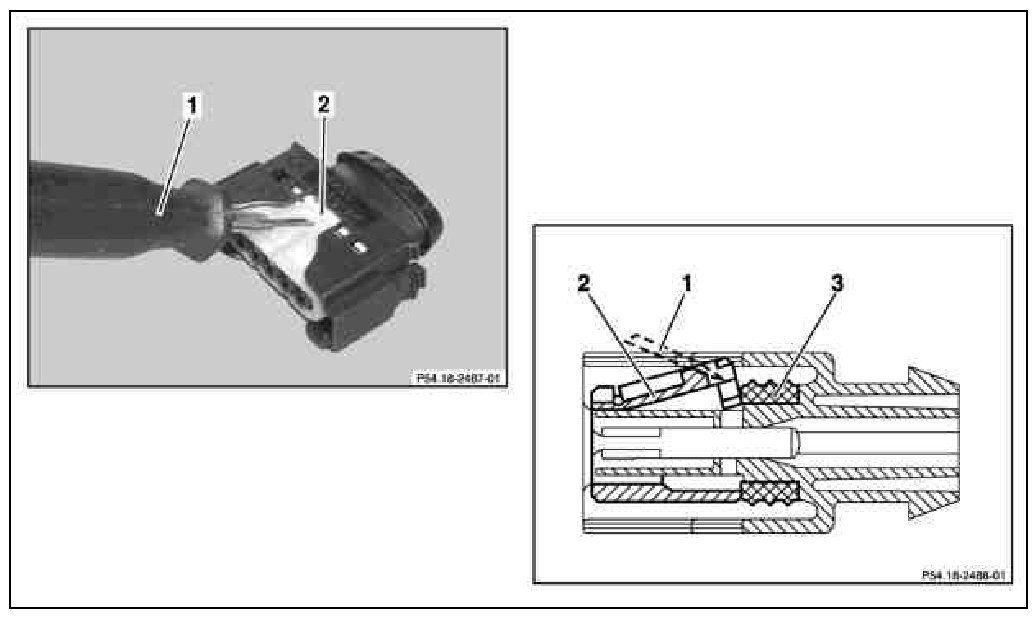

Unfasten secondary release on version with locking striker







7 Lever off locking striker (2) using a suitable tool (1).
The seal (3) may be damaged if the tool (1) is inserted too far. Prying up the locking striker (2) beyond the stop may destroy the locking striker (2).
The locking striker (2) remains unlocked when the female contacts are unpinned.

Unfasten secondary release on version with sliding plate (shown on Junior Power Timer coupling, micro quadlock system coupling)







8 Using a suitable tool, move both sliding plates (1) in housing in direction of arrow over catch mechanism.

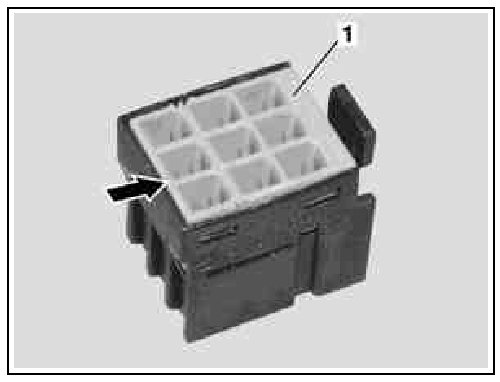

Unfasten secondary release on version with contact retainer







9 Using a suitable tool, move contact retainer (1) in direction of arrow out of locked position.

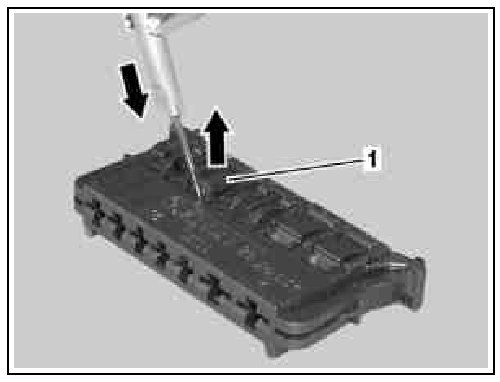

Unfasten secondary release on version with spring (shown on Standard Power Timer, Junior Power Timer coupling)







10 Insert a suitable tool between spring (1) and housing and press out spring (1).

Unfasten secondary release on version with slide (shown on laminated sensor contact, Junior Power Timer coupling)







11 Push (1) slider out of locked position in direction of arrow.

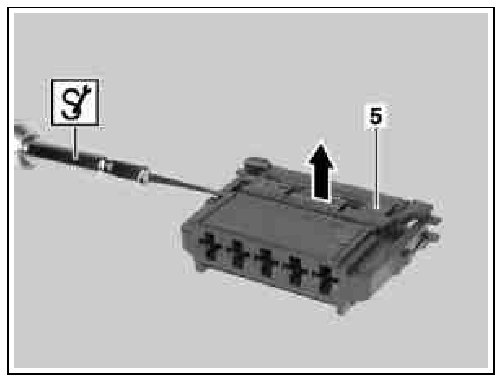

Unfasten secondary release on version with lock tab







12 Insert a suitable tool from the side under the lock tab on coupling (5).
13 Open the lock tab in direction of arrow.

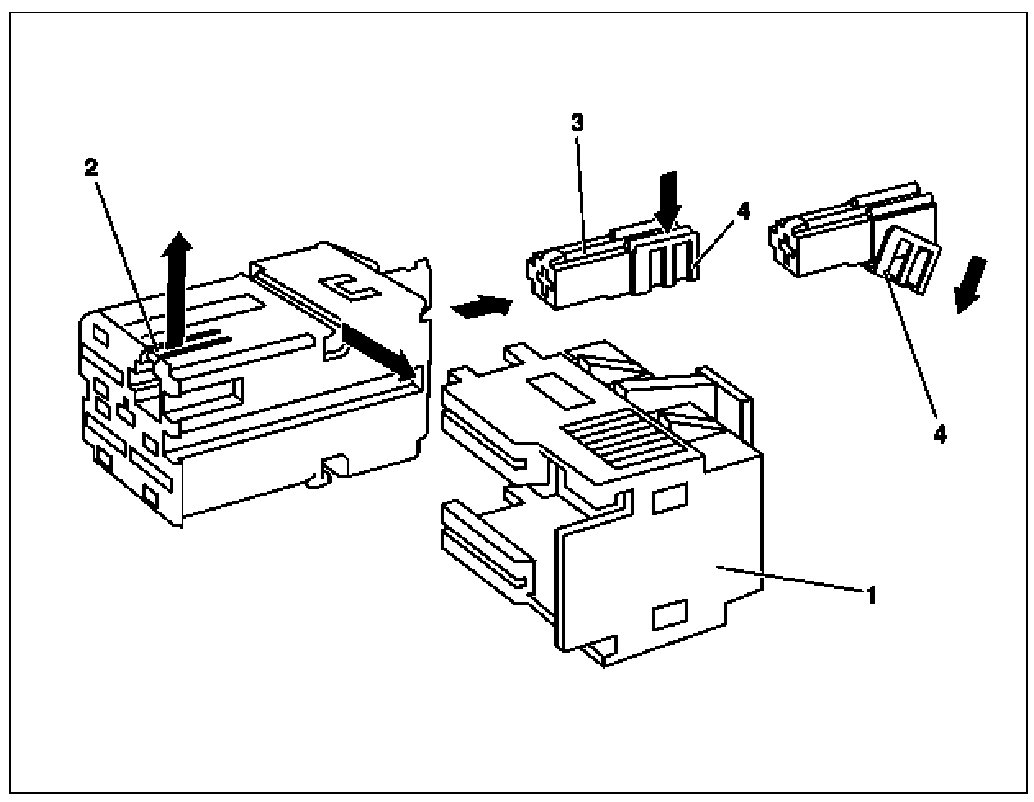

Unfasten secondary release on version with securing clip in internal coupling (shown on Junior Power Timer, Maxi Power Timer coupling)







14 Press locking catches of retaining cap (1) using a suitable tool and remove retaining cap.
15 Lift spring at coupling housing (2) using a suitable tool and push out internal JPT coupling (3).
16 Press tabs of retainer (4) out of detent.
17 Open retainer (4).

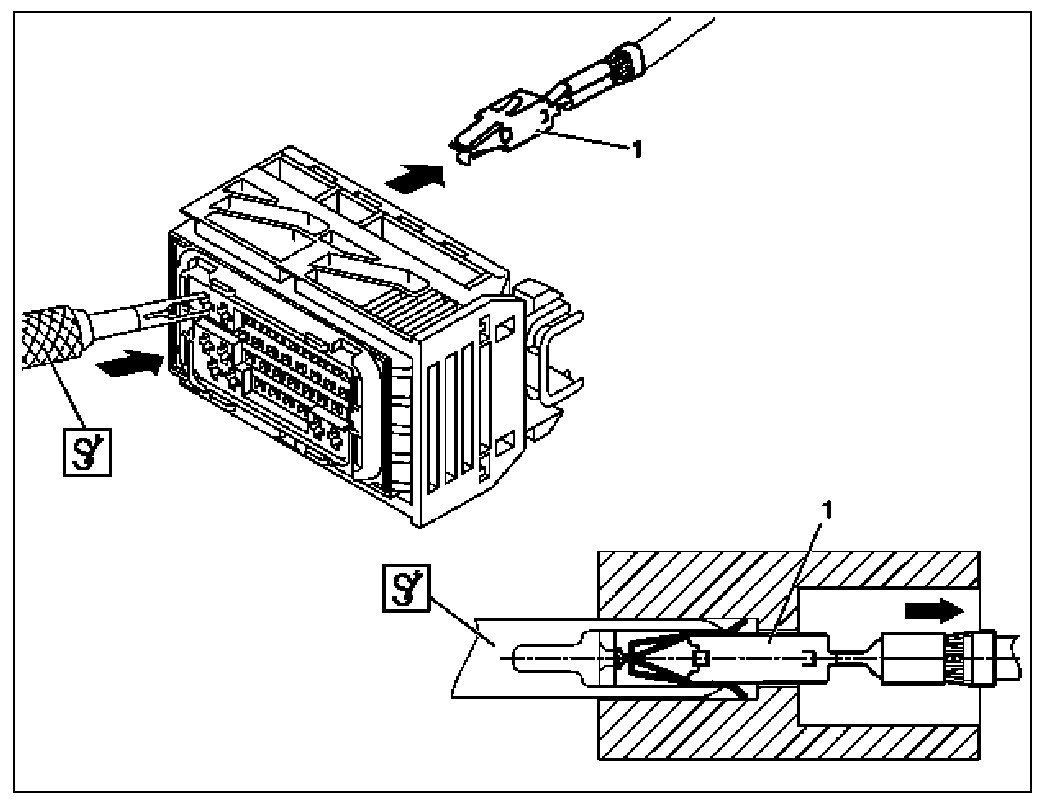

Unpin female contacts from coupling







18 Insert blade holder with clamping pliers with JPT/SPT blade or MCP 2.8/Fl. 2.8/JPT/SPT blade from the front through the openings in contact cavity of coupling.
This presses together the springs of the female contact (1).
19 A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
