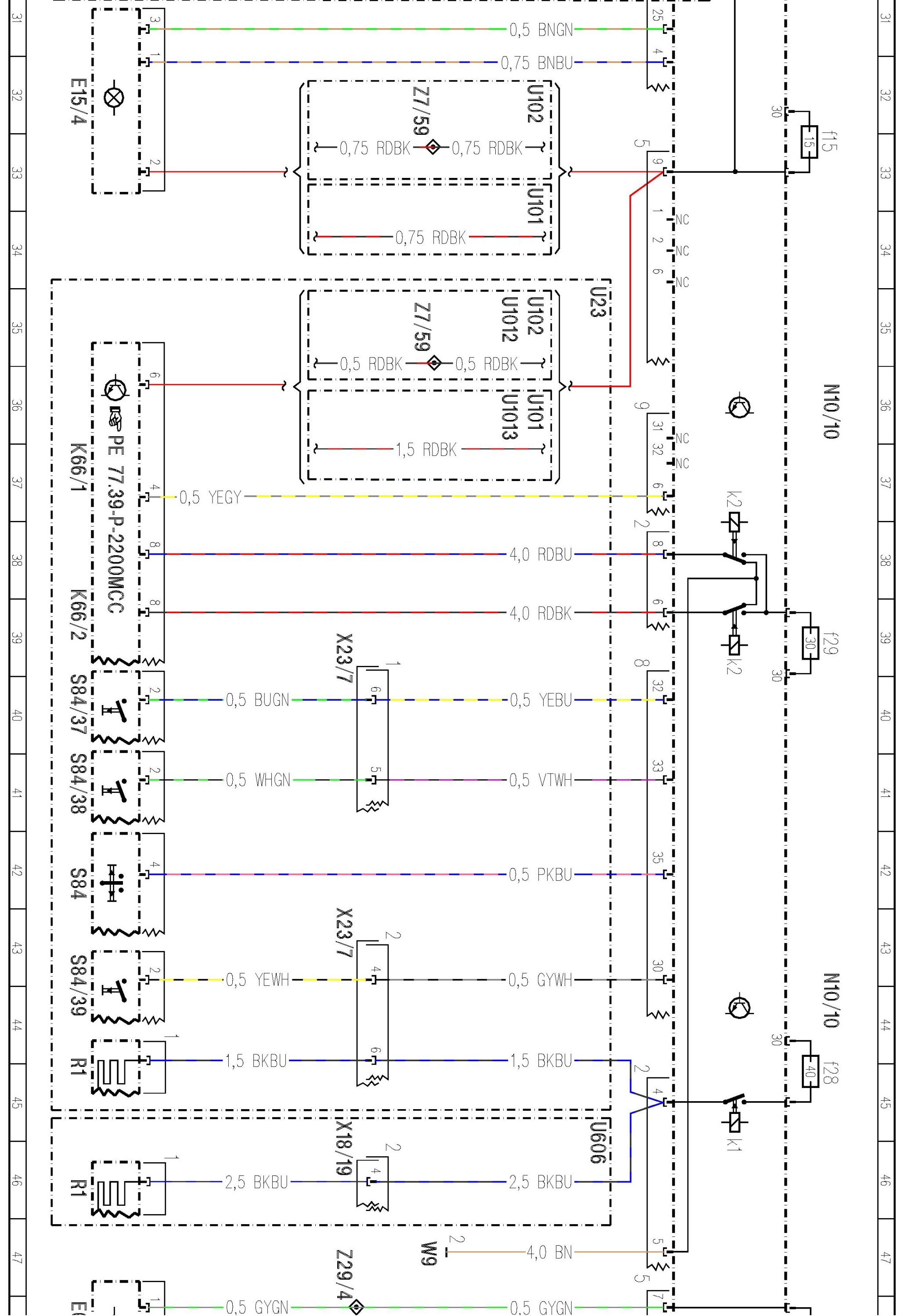

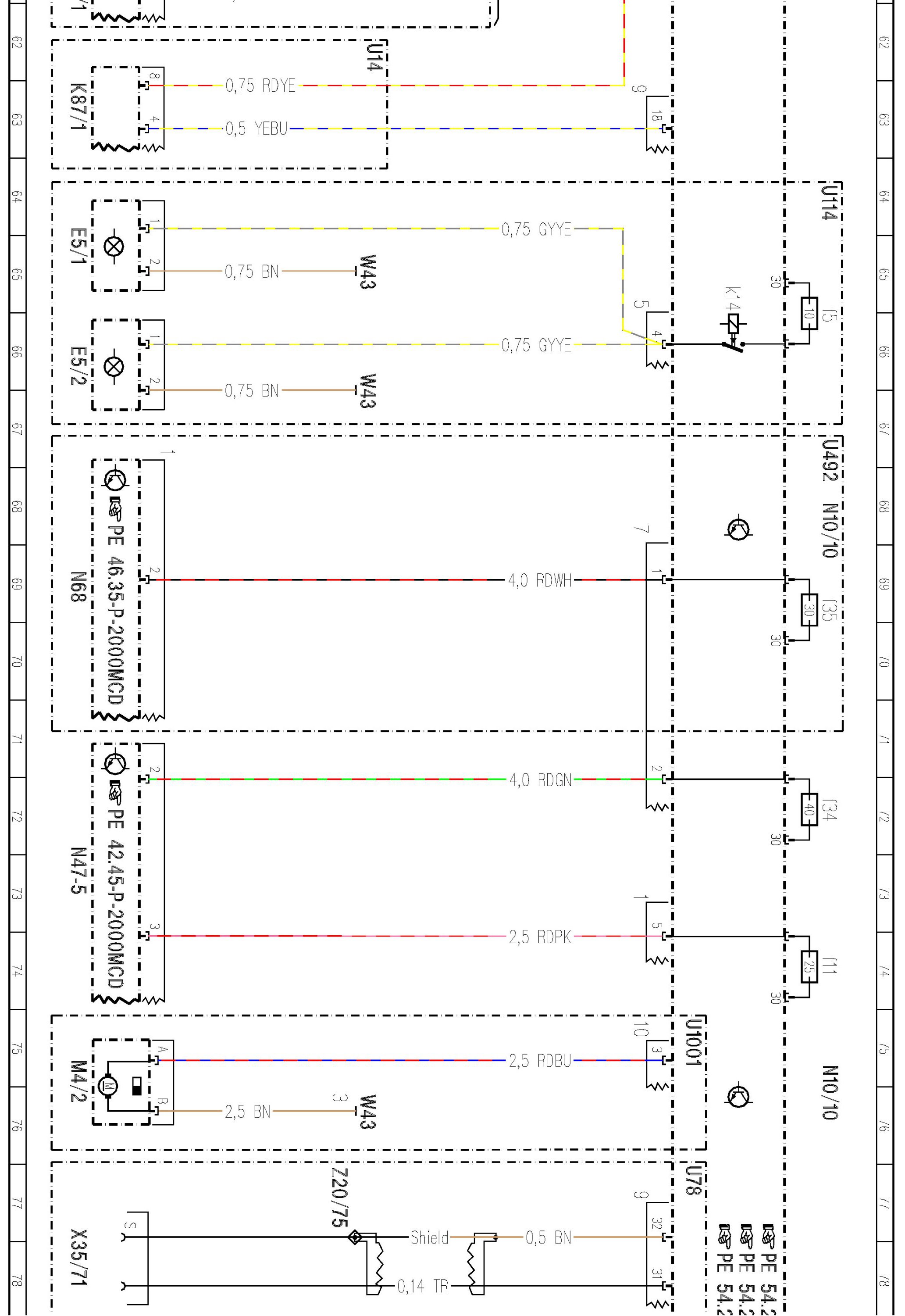

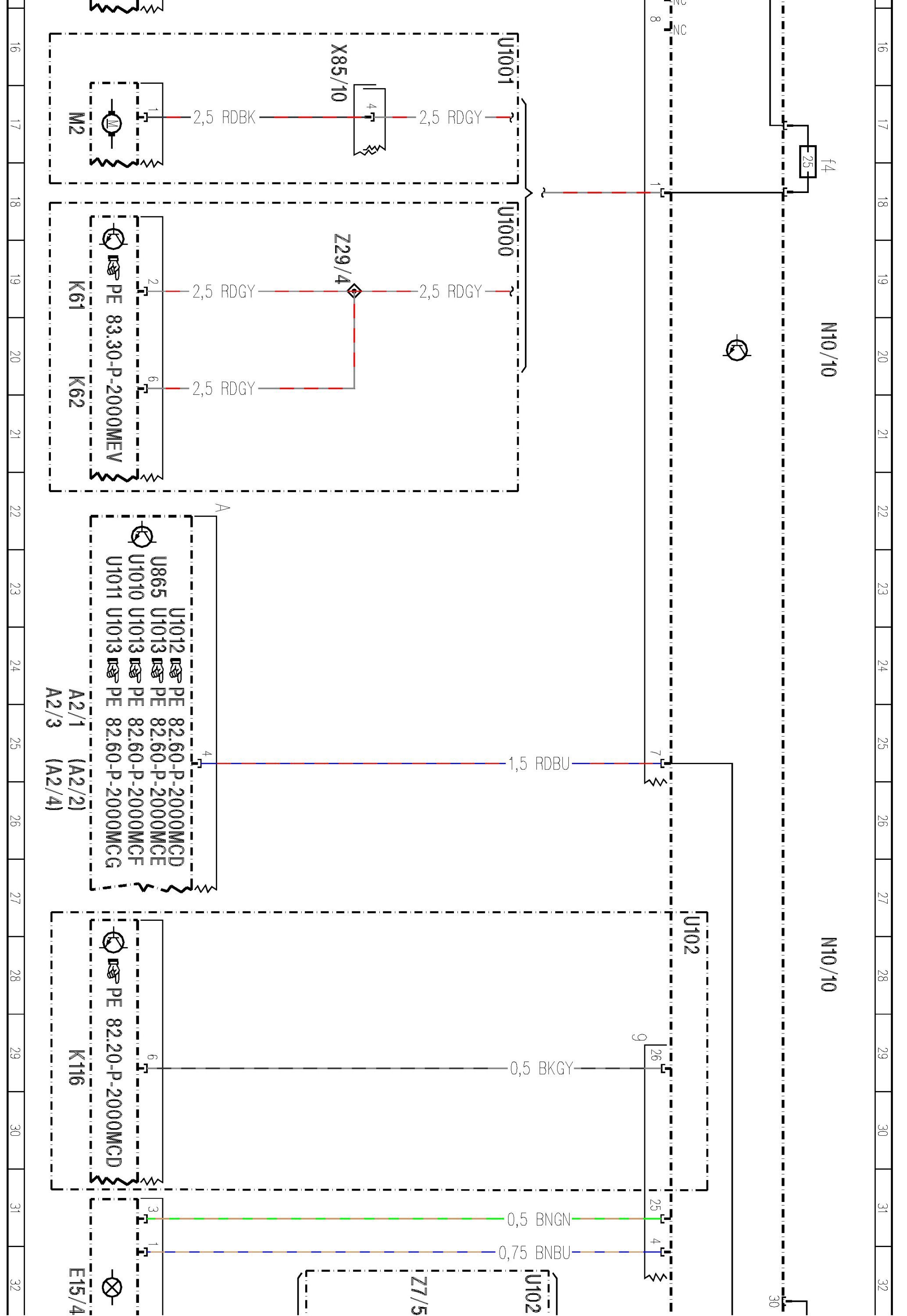

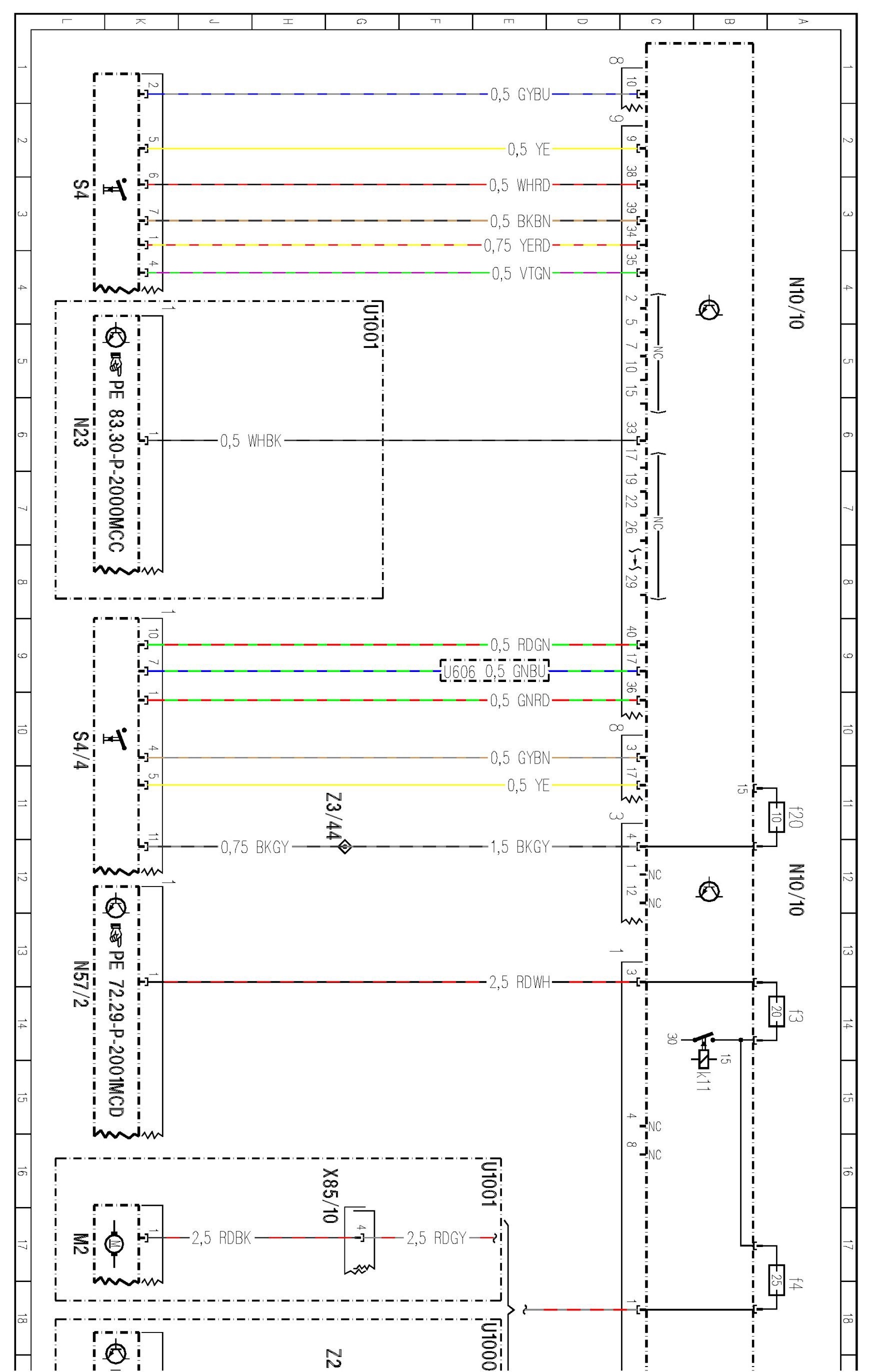

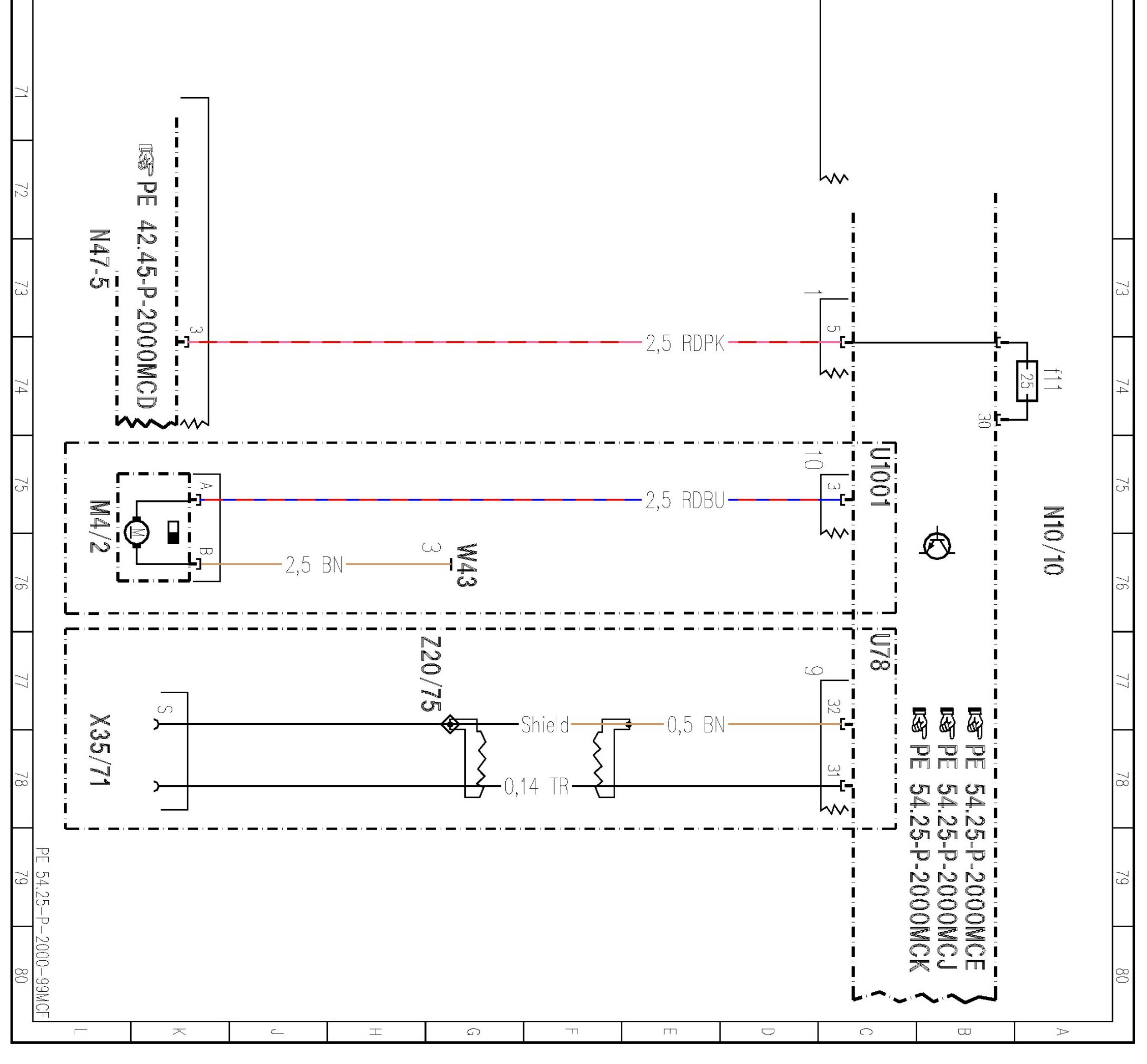

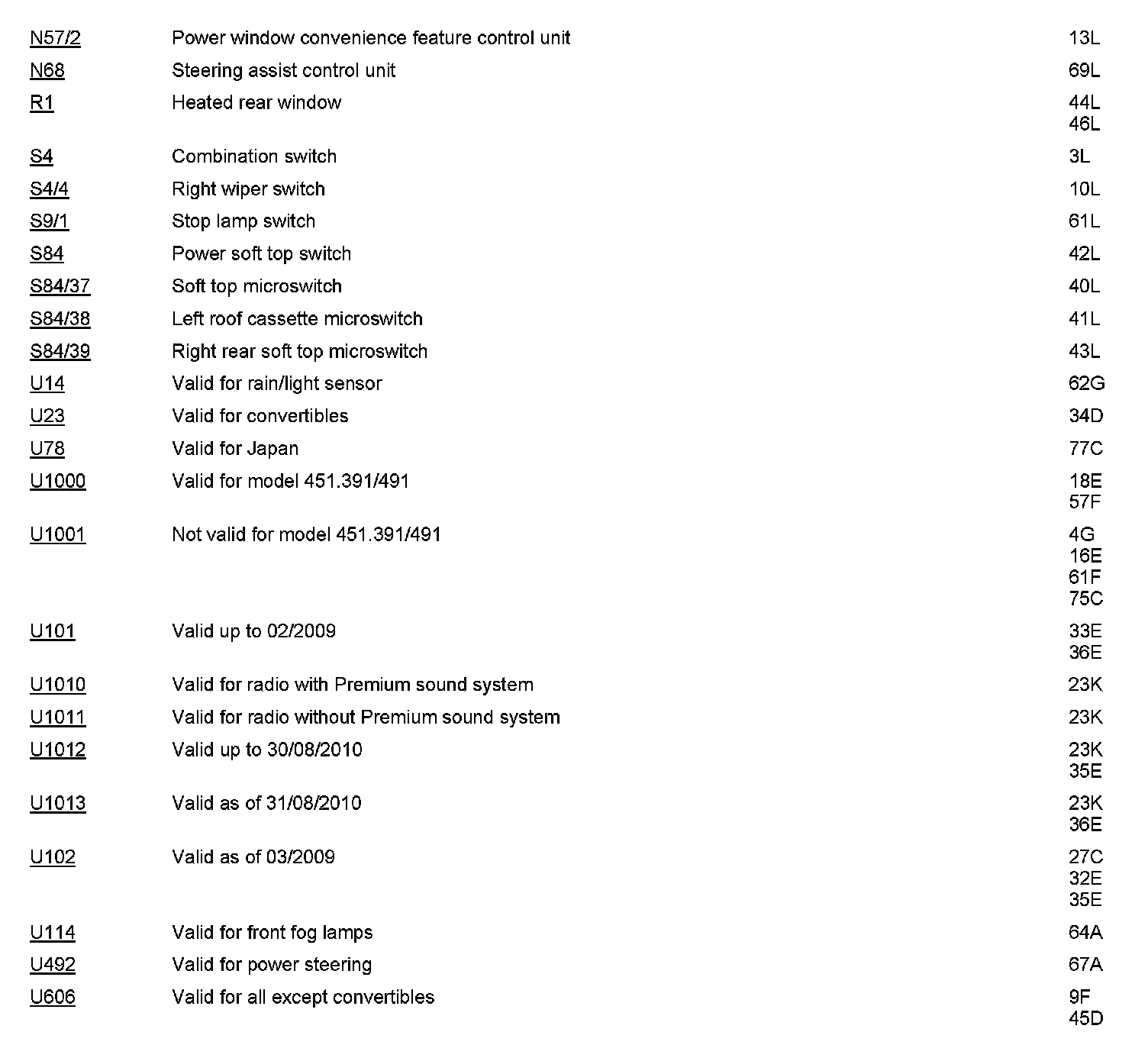

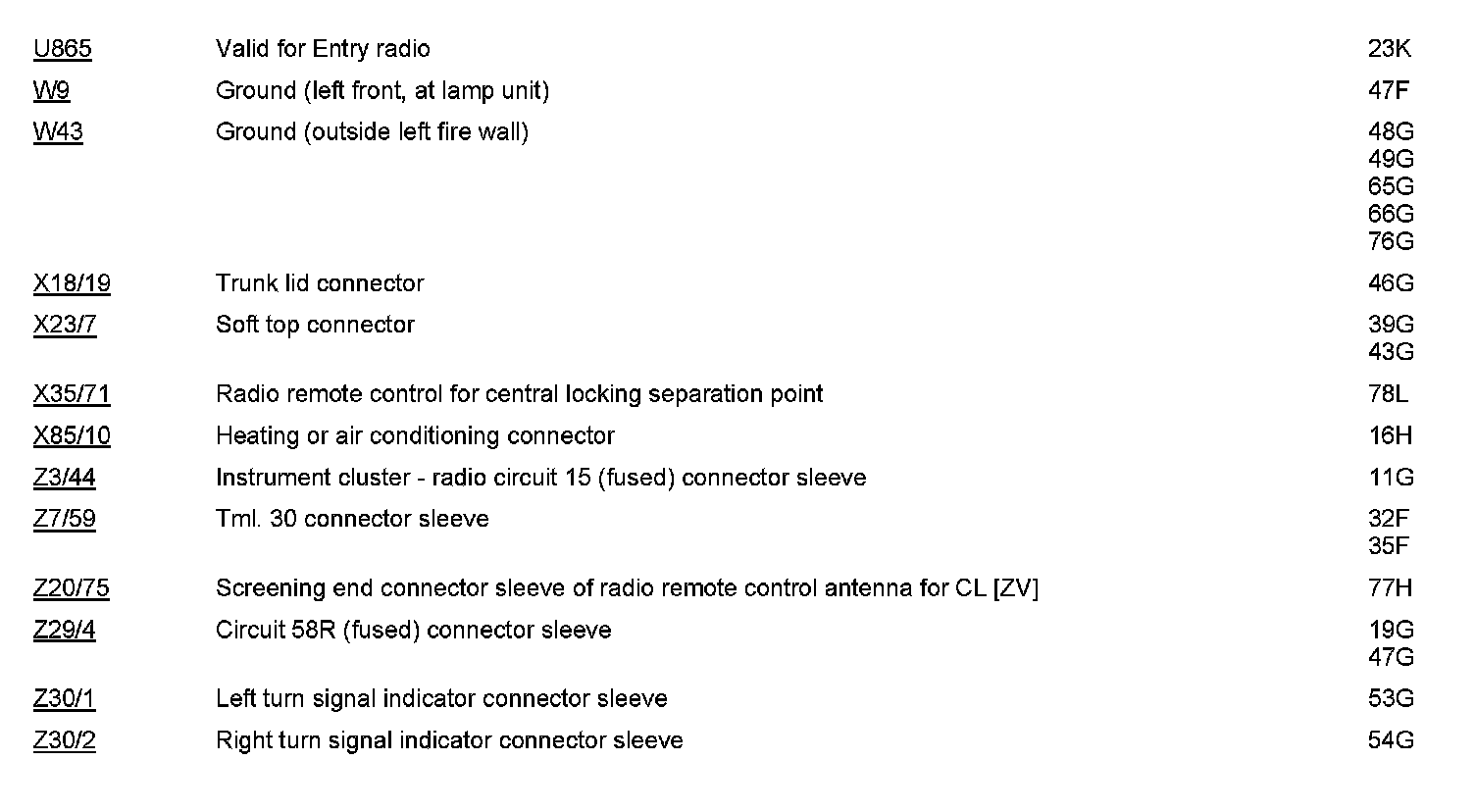

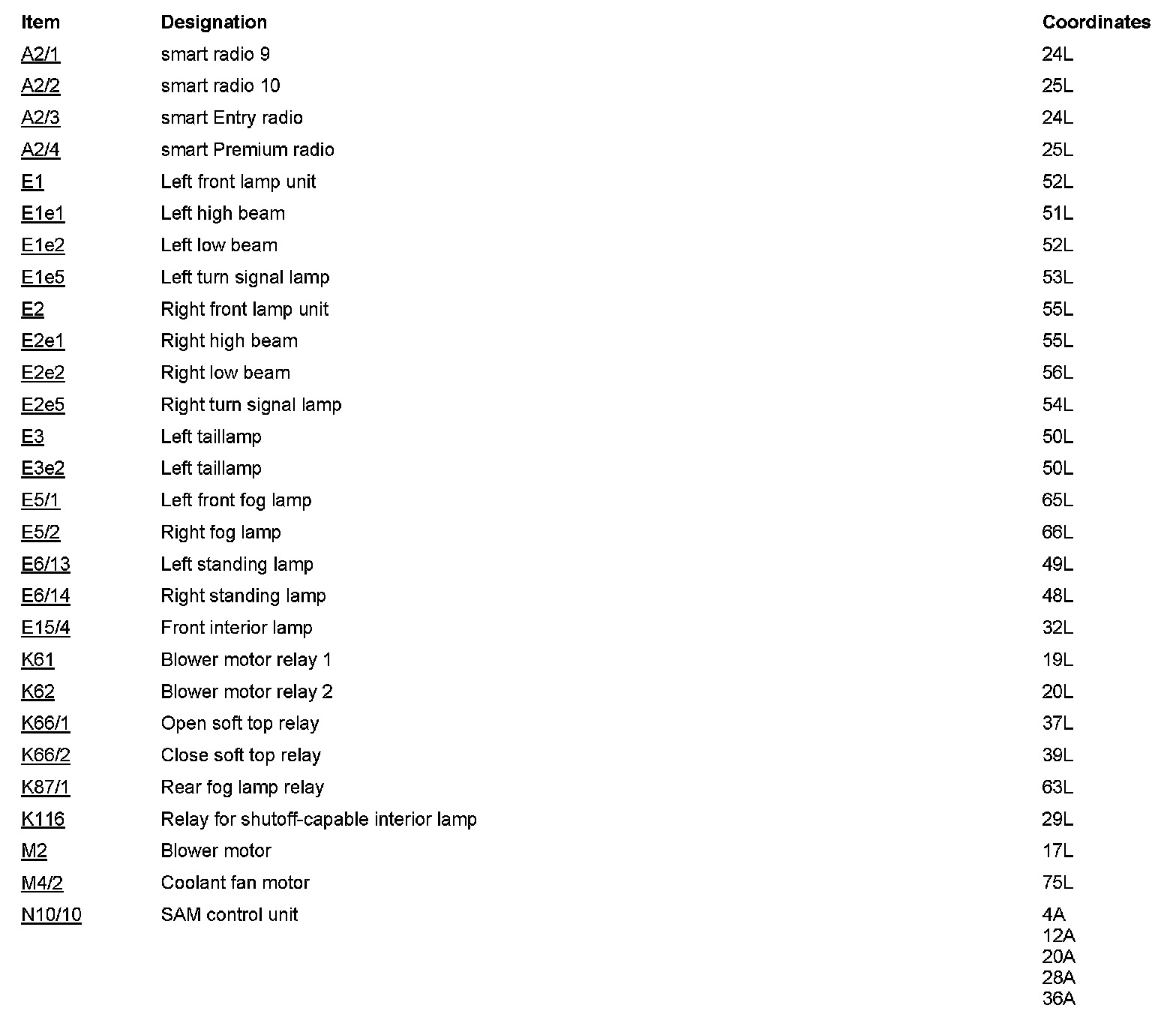

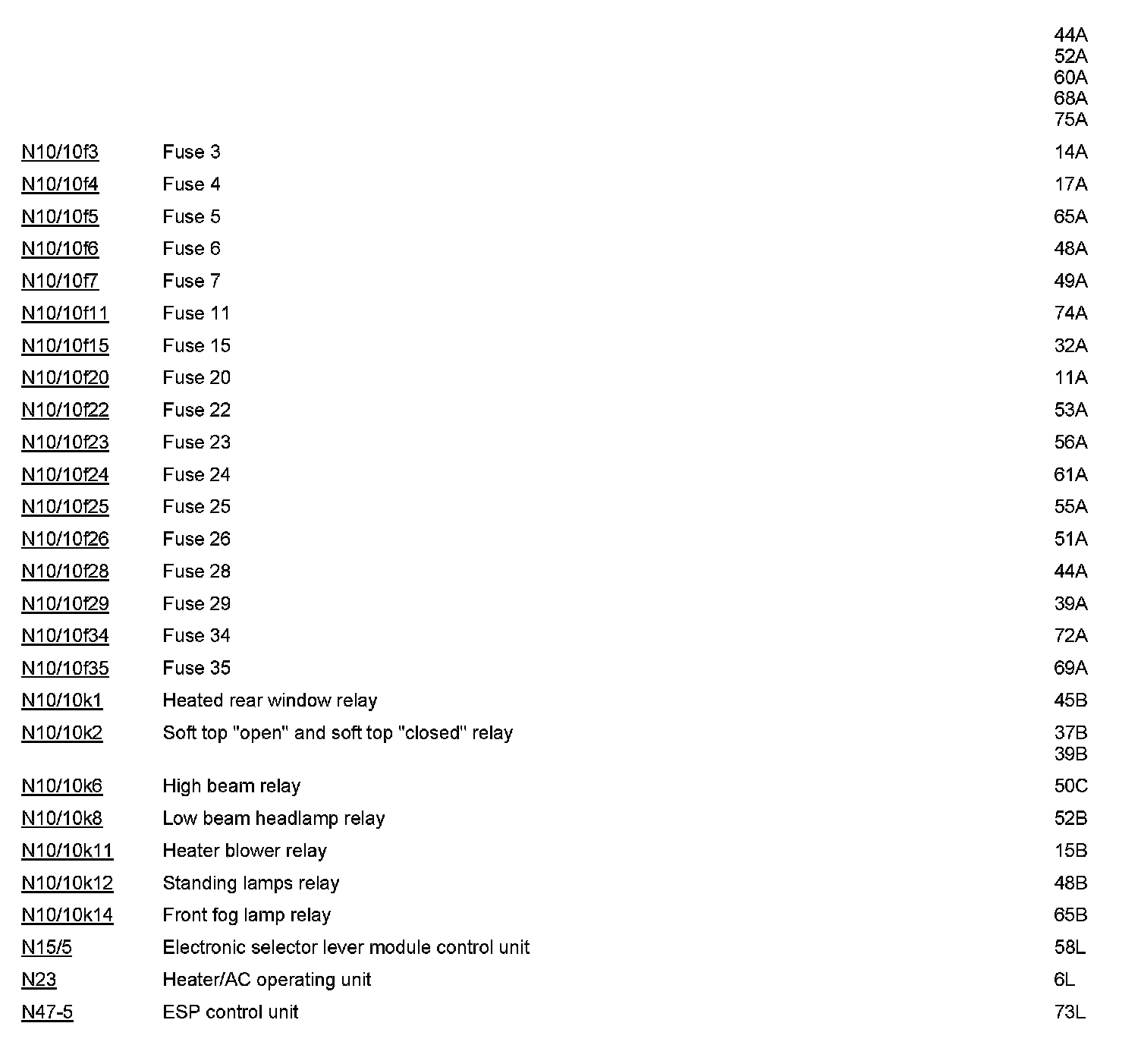

PE54.25-P-2000MCF Electrical Center



PE54.25-P-2000MCF Electrical Center

451 54 Electrical Systems - Equipment and Instruments
MODEL 451 as of 013645, except 451.334/ 380/ 480 Sheet 2
