Fuse Block: Service and Repair

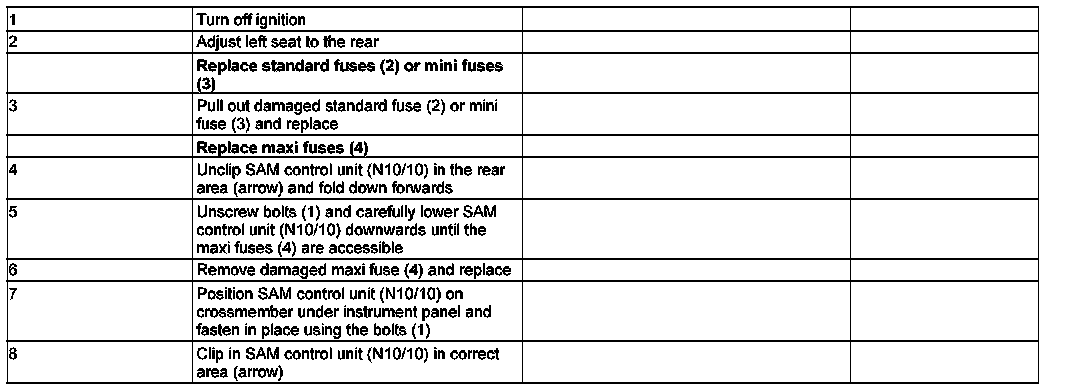

AR54.15-P-2001MCC Replace SAM Fuses

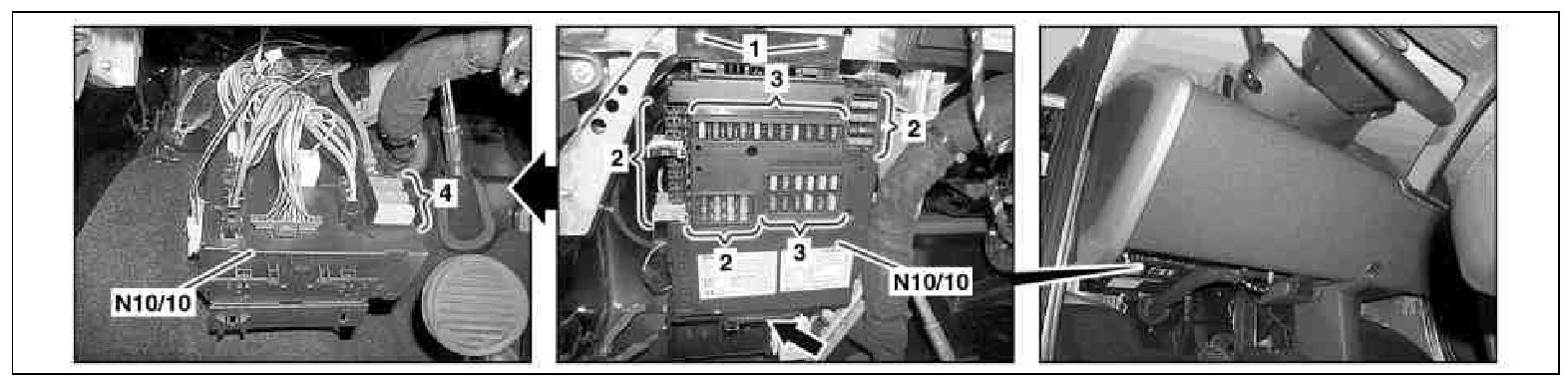

1 Bolts
2 Standard fuses
3 Mini fuses
4 Maxi fuses
N10/10 SAM control unit
