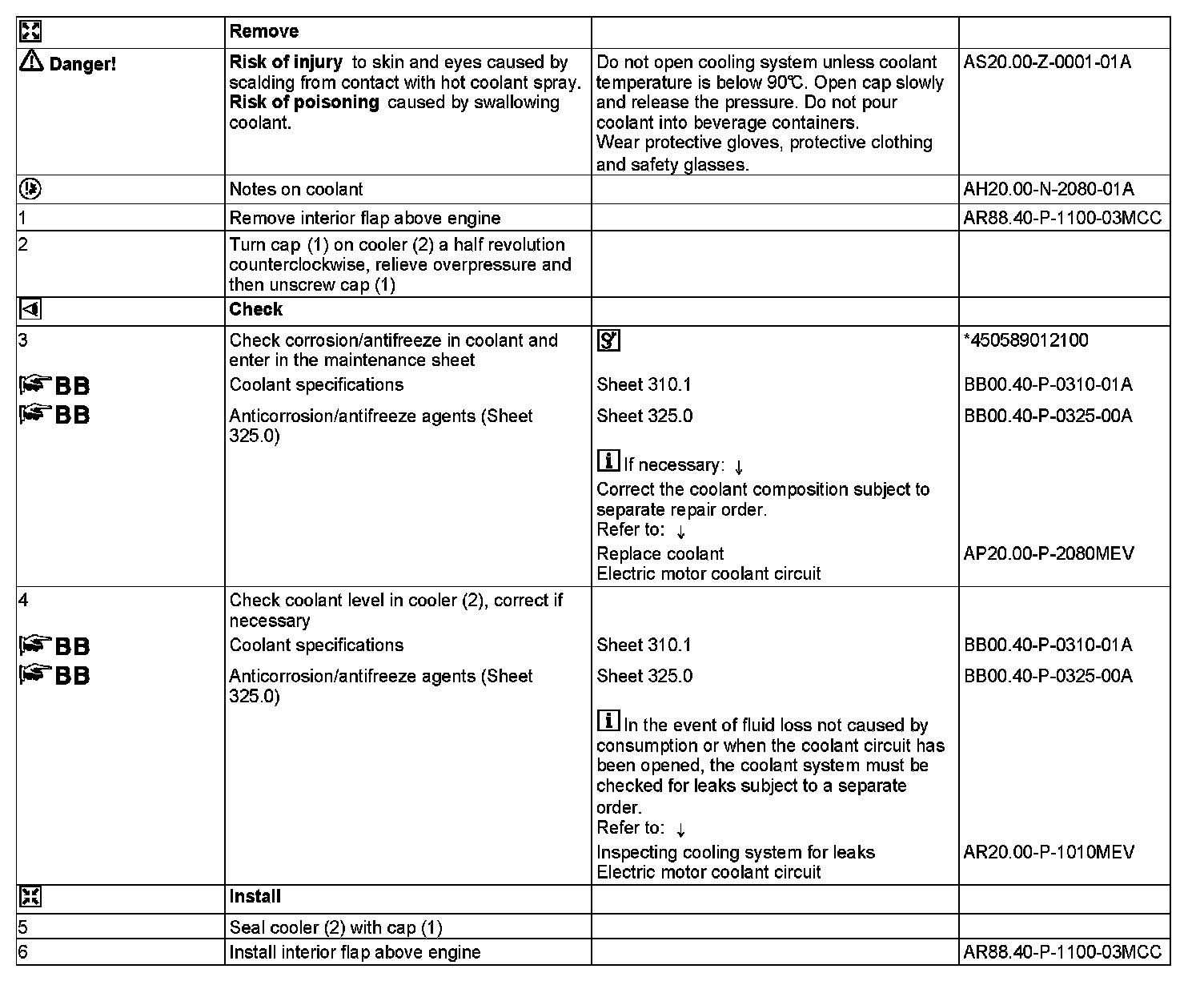

AP20.00-P-2010MEV Engine Cooling System - Check Fluid Level, Adjust to Correct Level. Inspect Anticorrosion/Antifreeze




AP20.00-P-2010MEV Engine Cooling System - Check Fluid Level, Adjust To Correct Level. Inspect Anticorrosion/antifreeze Protection, Adjust To Correct Concentration
- MODEL 451.391 /491 with ENGINE 780.009

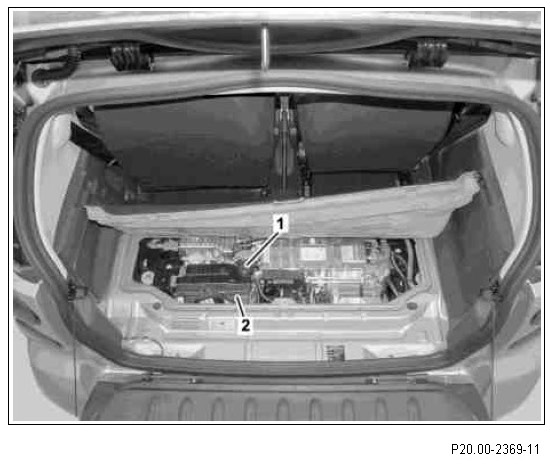

1 Cap
2 Radiator
