ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009)
>>
Repair and Diagnosis
>>
Maintenance
>>
Fluids
>>
Brake Fluid
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement

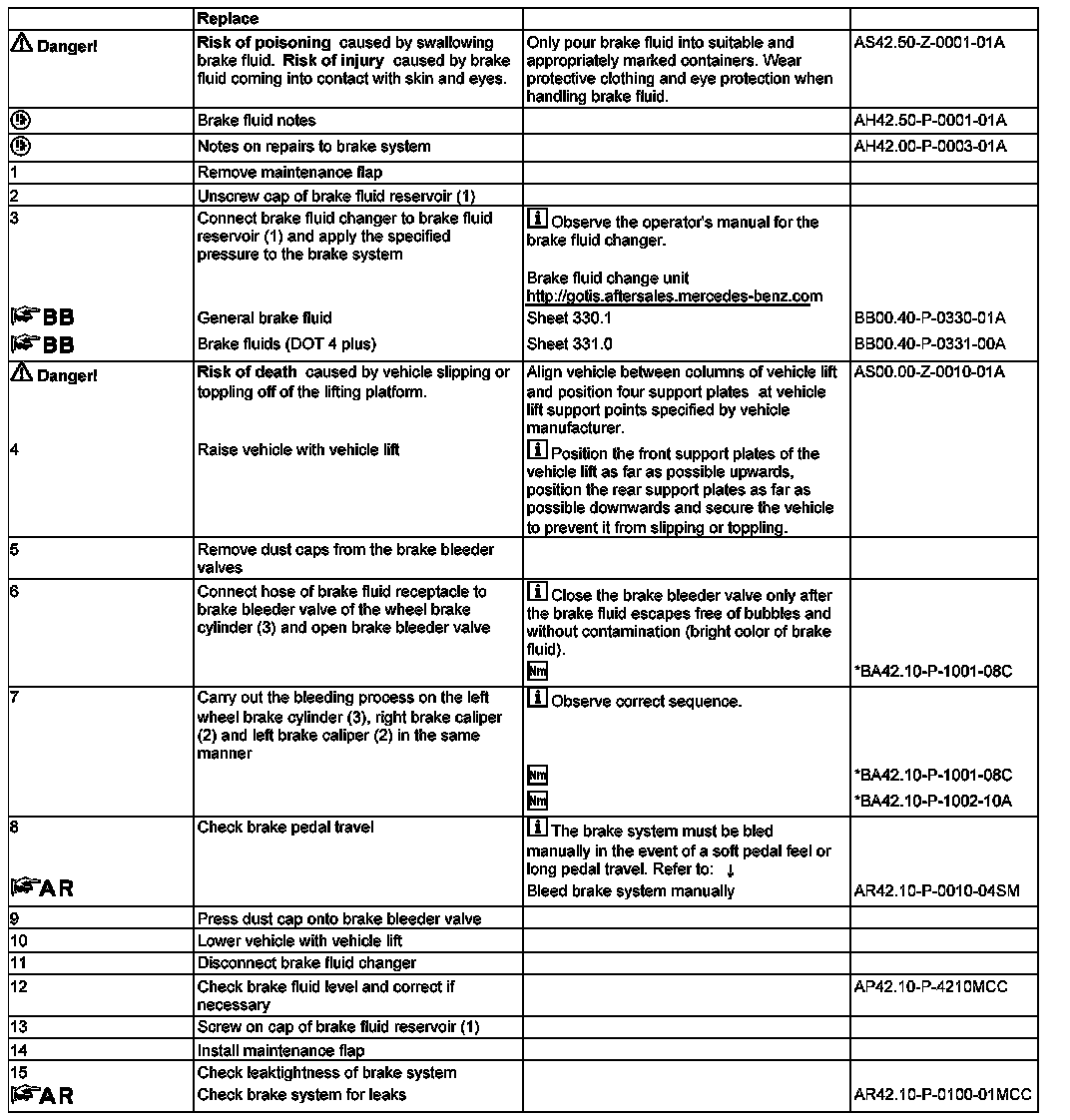

AP42.00-P-4280MCC Replace
Brake Fluid
1
Brake fluid reservoir
2
Brake caliper
3
Wheel brake cylinder
