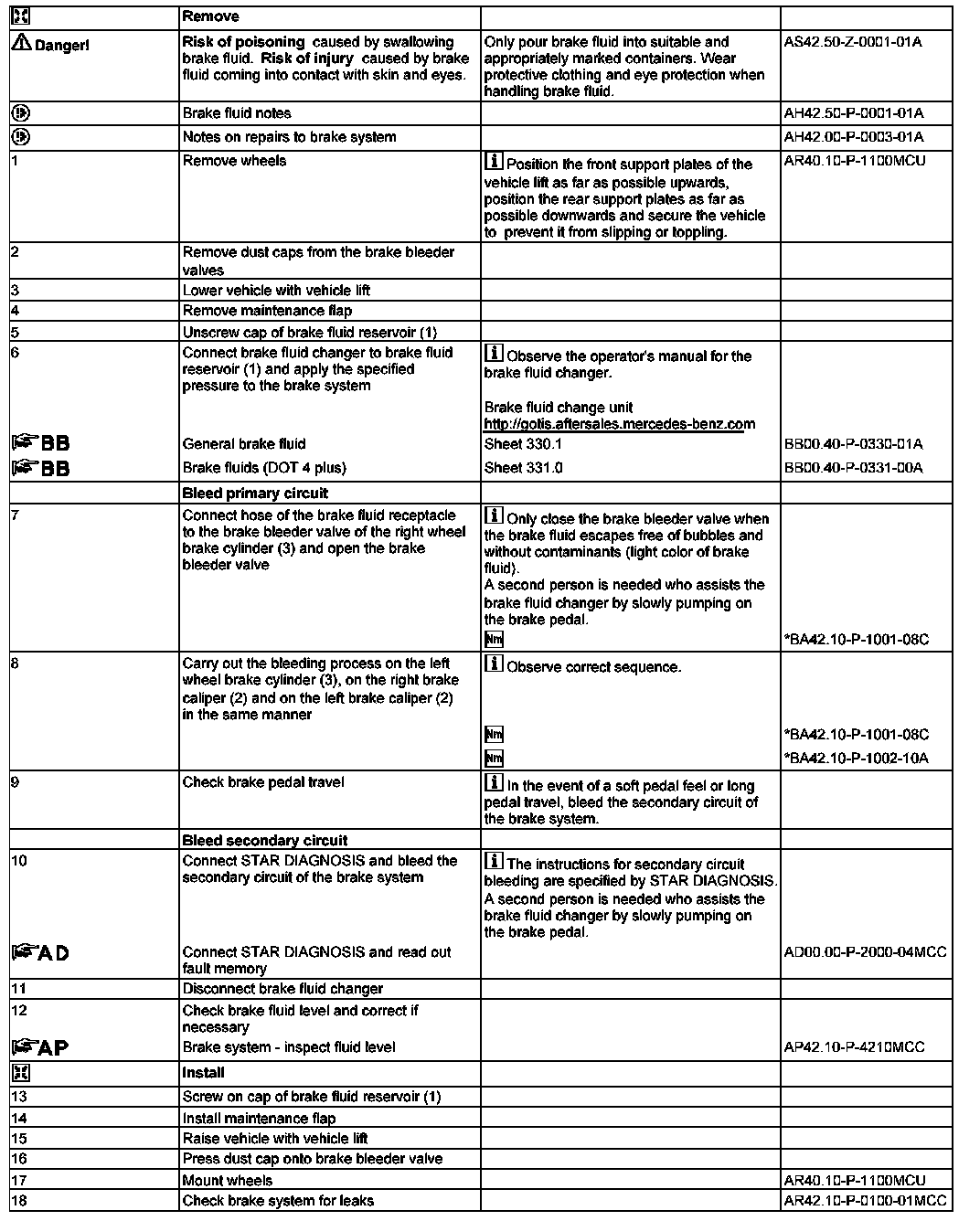

AR42.10-P-0010MCU Bleed Brake System
AR42.10-P-0010MCU Bleed Brake System
AR42.10-P-0010MCU Bleed Brake System
1
Brake fluid reservoir
2

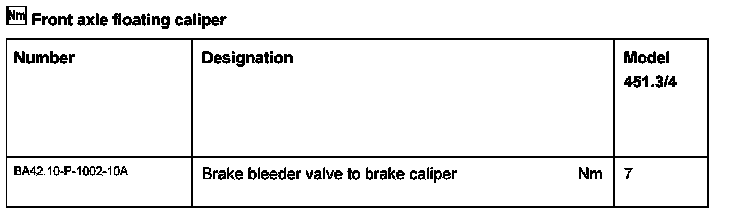

Brake caliper
3

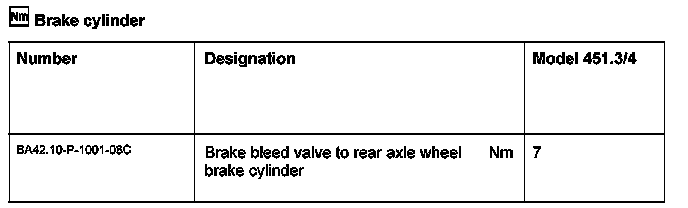

Wheel brake cylinder
