AR40.20-P-0303MCC Record Vehicle Level At Front And Rear Axles Using Electronic Inclinometer

AR40.20-P-0303MCC Record Vehicle Level At Front And Rear Axles Using Electronic Inclinometer

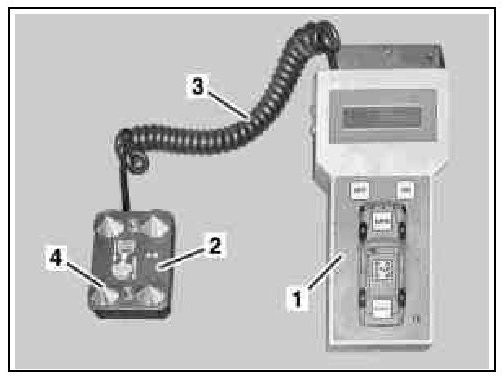

Inclinometer with sensor for front axle and rear axle







1 Inclinometer
2 Measuring sensor
3 Measuring sensor connecting cable
4 Measuring tip

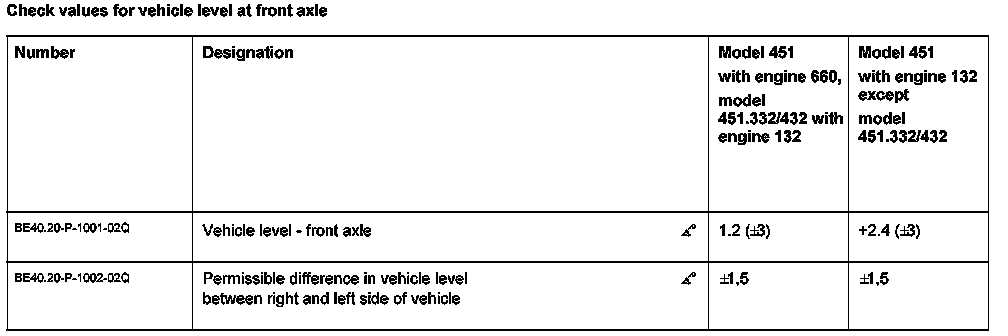

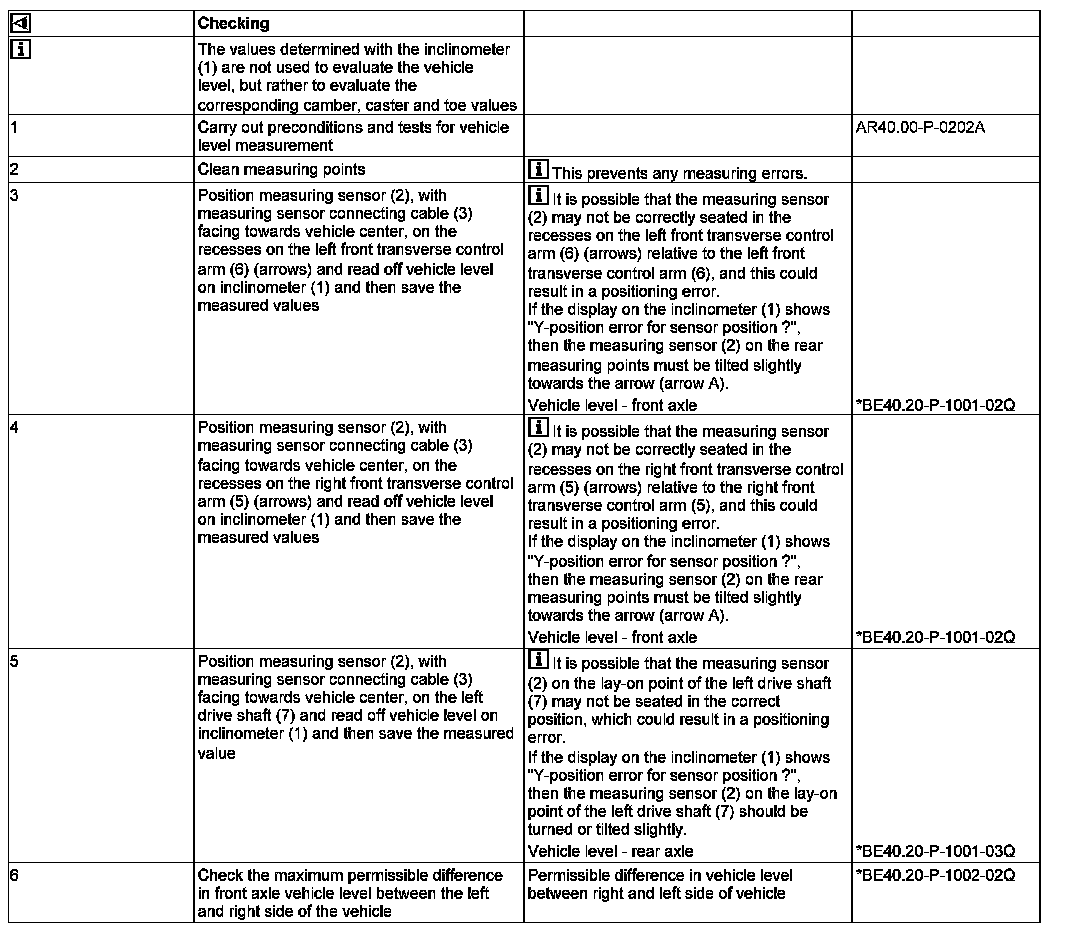

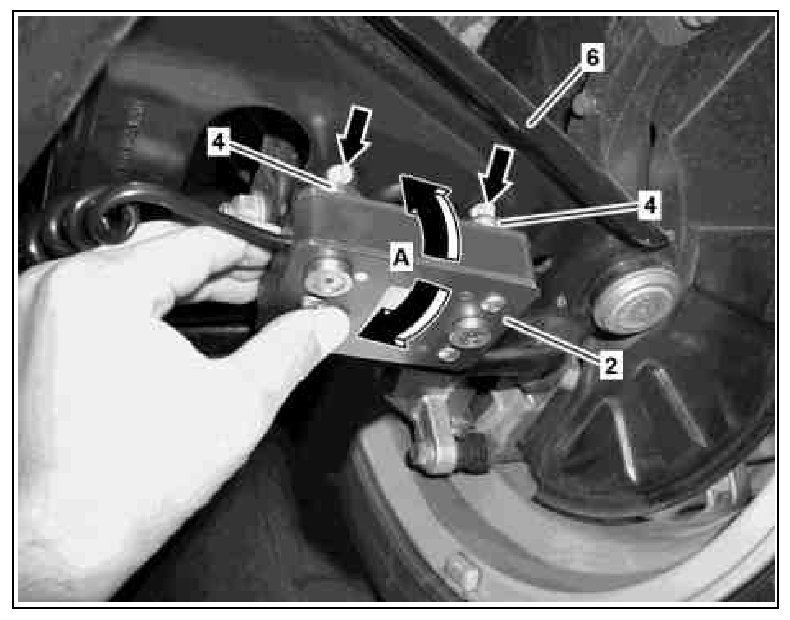

Shown on measuring point 2 (left front)







2 Measuring sensor
4 Measuring tip
6 Front left transverse control arm

Shown on measurement point 1 (right front)







1 Inclinometer
2 Measuring sensor
3 Measuring sensor connecting cable
5 Front right transverse control arm

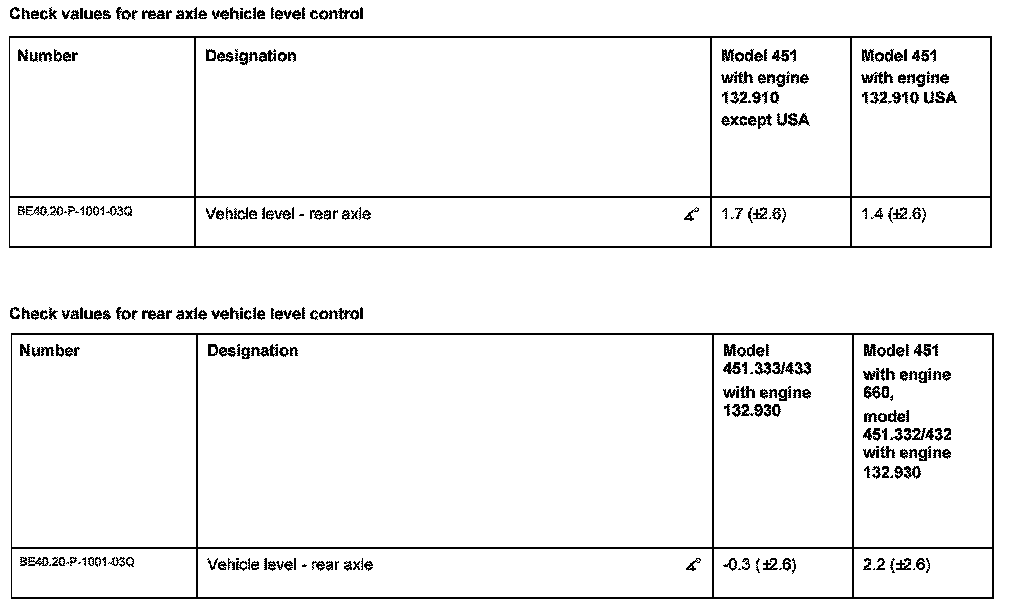

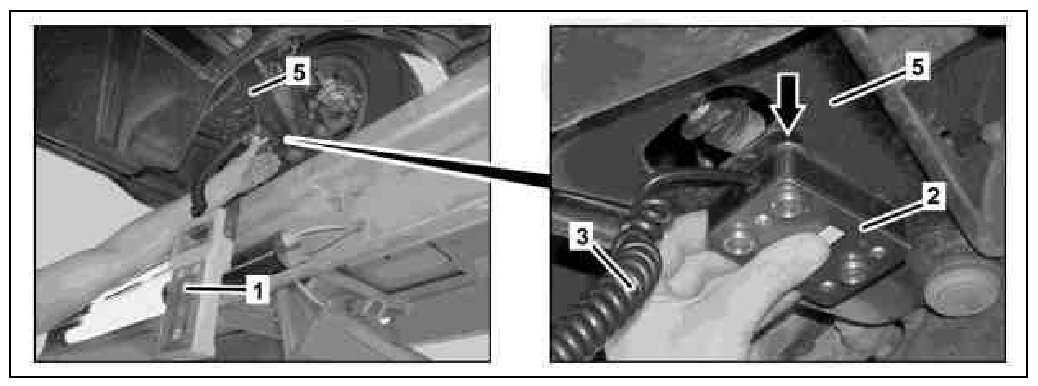

Shown on measuring point 3 (left rear)







1 Inclinometer
2 Measuring sensor
3 Measuring sensor connecting cable
7 Left drive shaft
