Combination Switch: Service and Repair

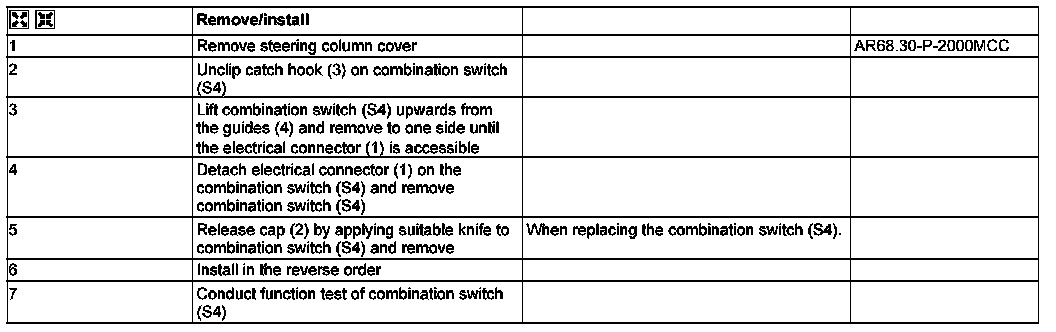

AR54.25-P-2800MCC Remove/Install Combination Switch







1 Electrical connector
2 Cap
3 Catch hook
4 Guide
S4 Combination switch
