Dome Lamp: Service and Repair

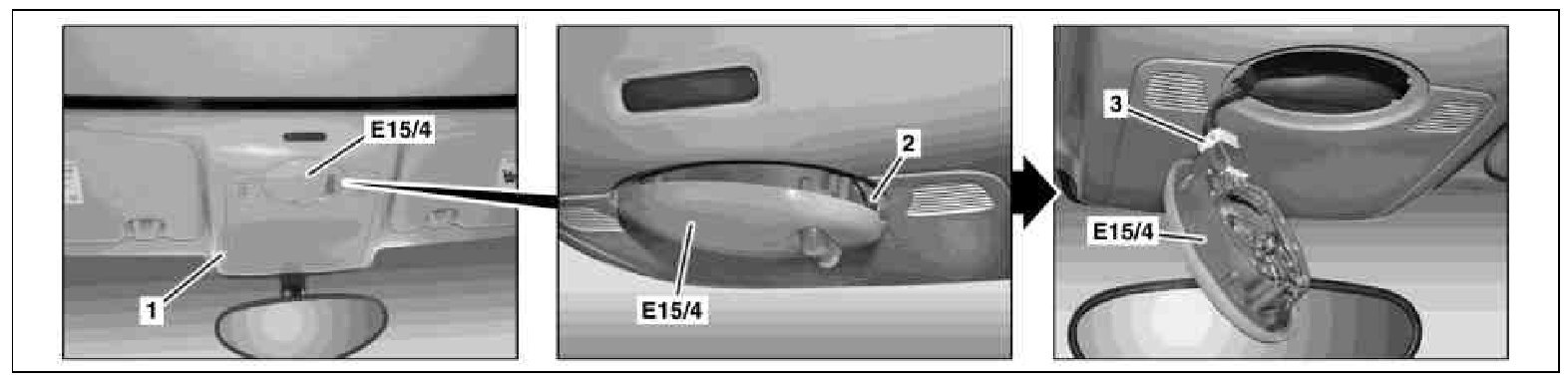

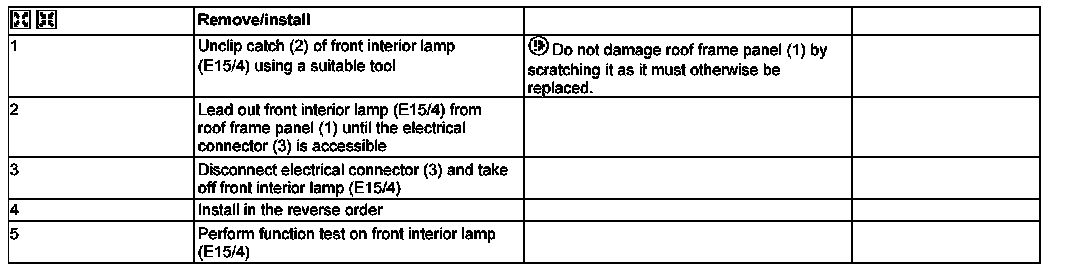

AR82.20-P-0110MCU Remove/Install Front Dome Lamp







1 Roof frame paneling
2 Catch
3 Electrical connector
E15/4 Front interior lamp
