AZ82.20-P-0010-03MCC Retrofit Ambiance Illumination In Inside Rearview Mirror

AZ82.20-P-0010-03MCC Retrofit Ambiance Illumination In Inside Rearview Mirror

450 589 01 70 00, Twist drill bit set

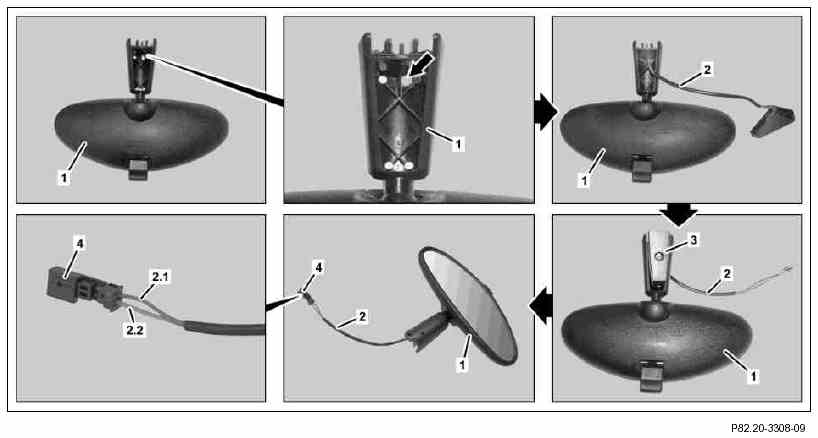

1. Drill hole in marked area (arrow) at inside rearview mirror (1) with a diameter of 4.5 mm.
Hand drill

2. Lead wiring harness (2) through hole and clip bracket with ambiance illumination (3) into inside rearview mirror (1).
3. Plug pin of brown wire (2.1) into slot 1 and pin of gray/blue line (2.2) into slot 2 of connector (4).
The slots in the connector (4) are marked.







4. Install inside rearview mirror (1).

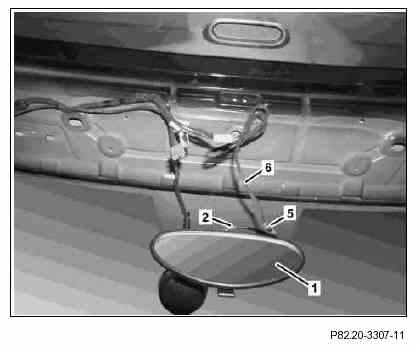

5. Create electrical connections (5) between wiring harness (2) and main ambiance illumination wiring harness (6).
