AZ82.20-P-0010-02MCC Retrofit Ambiance Illumination In Footwell

AZ82.20-P-0010-02MCC Retrofit Ambiance Illumination In Footwell

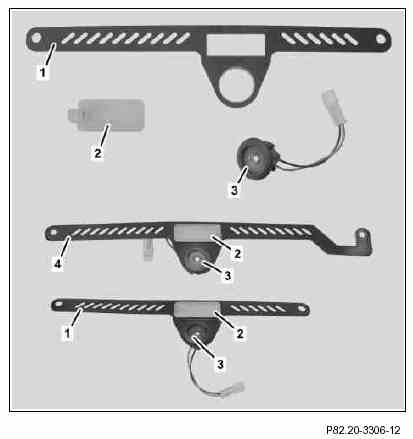

1. Clip lamps (2, 3) into driver footwell lighting strip (4).
2. Clip lamps (2, 3) into front passenger footwell lighting strip (1).

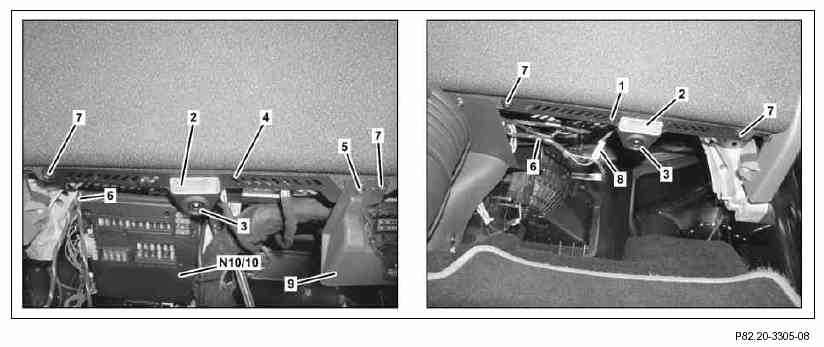

3. Remove bolt (5) from vertical strut paneling (9)
4. Carefully push down vertical strut paneling (9) and position driver footwell lighting strip (4) behind vertical strut paneling (9).
5. Screw driver footwell lighting strip (4) in position using bolts (7).
6. Position front passenger footwell lighting strip (1) at lower section of instrument panel and tighten using screws/bolts (7).
7. Create all four electrical connections (8) between the ambiance illumination main wiring harness (6) and the lamps (2, 3).
The connectors and couplings of the electrical connectors (8) are coded.

8. Tighten bolt (5) of vertical strut paneling (9).
9. Fasten main ambiance illumination wiring harness (6) in place at driver footwell lighting strip (4) and front passenger footwell lighting strip (1) using cable ties.
