Removal and Replacement

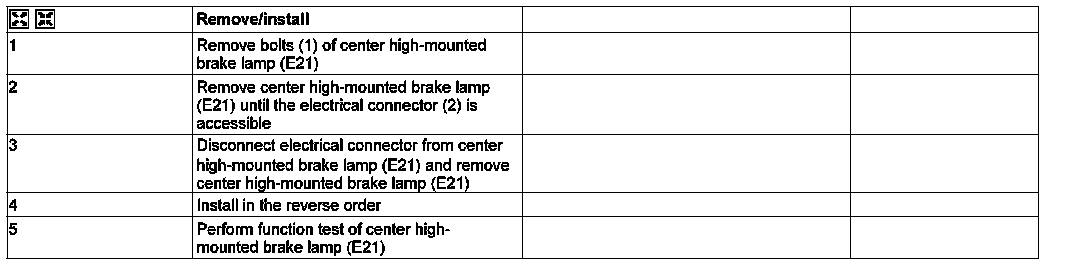

AR82.10-P-5375MCC Remove/Install Center High-mounted Stop Lamp

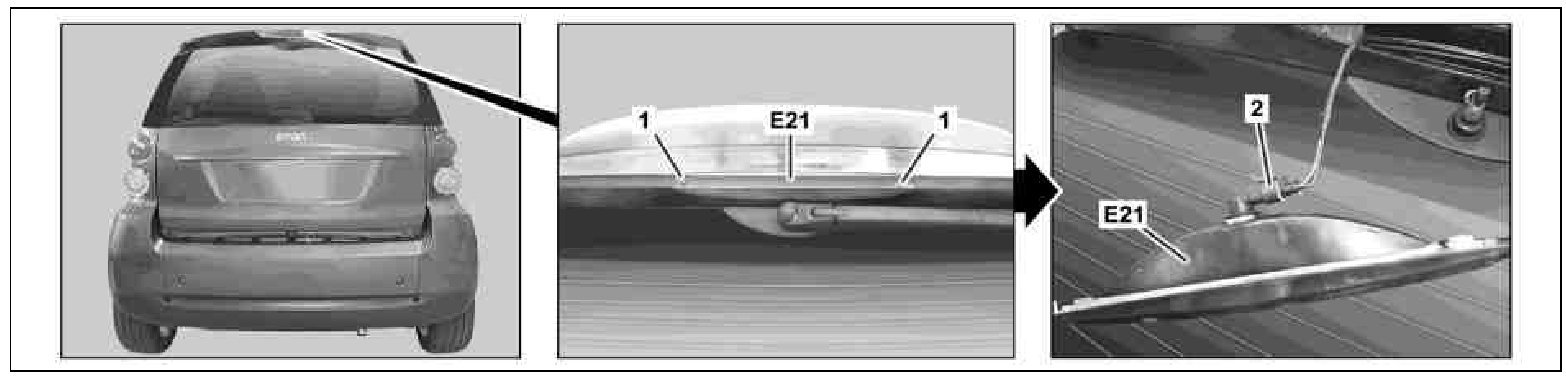

1 Screw
2 Electrical connector
E21 Center high-mounted stop lamp
