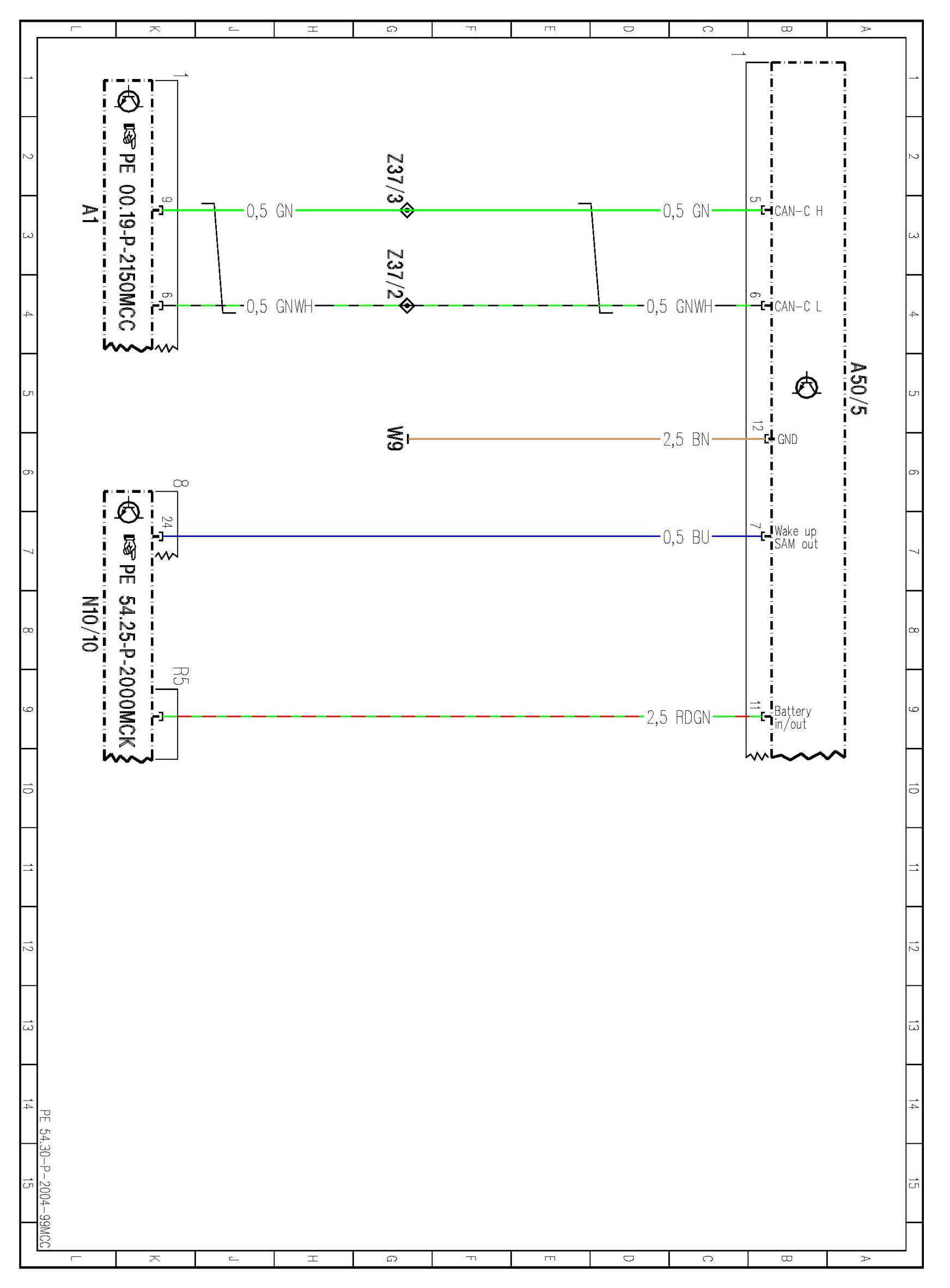

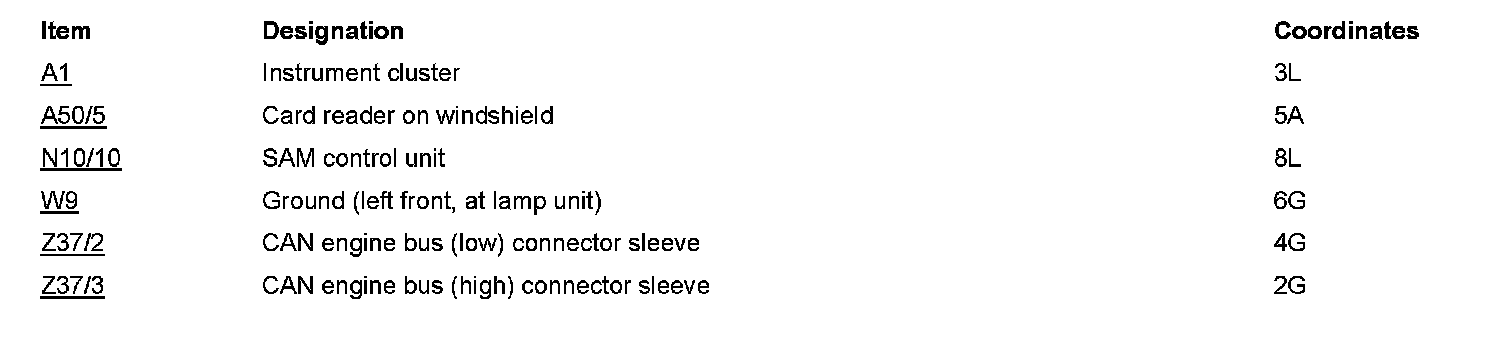

PE54.30-P-2004MCC Card Reader Behind Windshield



PE54.30-P-2004MCC Card Reader Behind Windshield

451 54 Electrical Systems - Equipment and Instruments
MODEL 451 with CODE (P02) car2go
