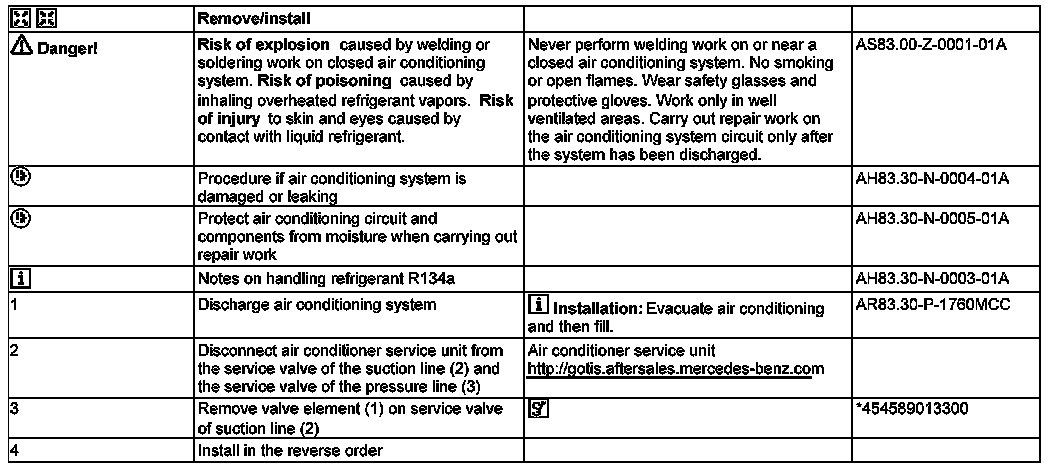

AR83.30-P-5535MCC Remove/install intake manifold filling valve

AR83.30-P-5535MCC Remove/Install Intake Manifold Filling Valve
- with CODE (I01) Air conditioning Plus

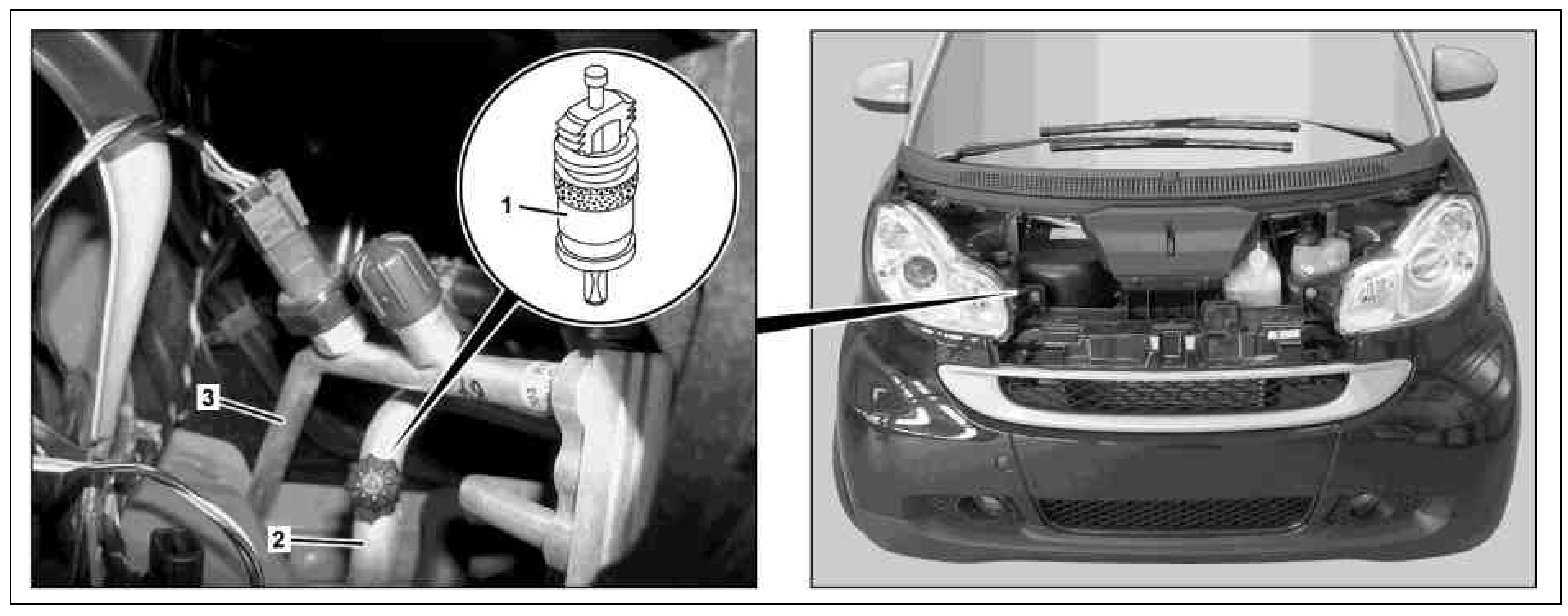

1 Valve element
2 Suction pipe
3 Pressure line












454 589 01 33 00, Turn out device
