AR83.30-P-5200MEV Remove/Install Air Conditioner Housing

AR83.30-P-5200MEV Remove/install Air Conditioner Housing
- MODEL 451.391/ 491

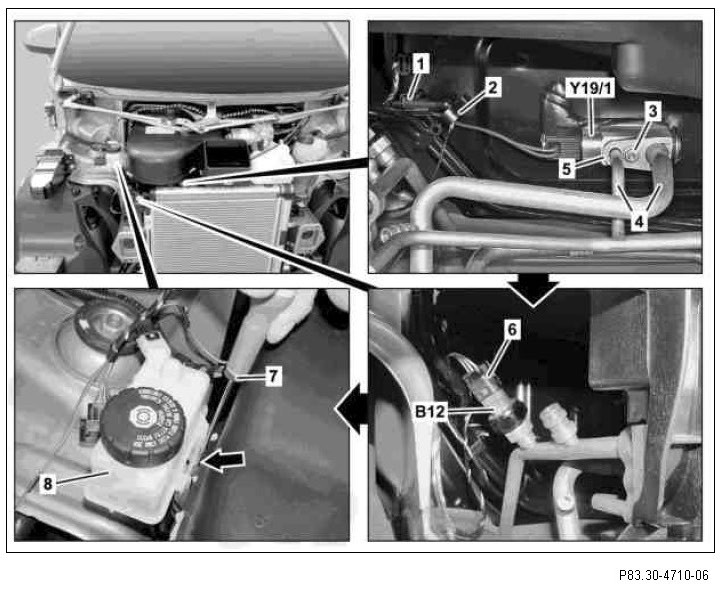

1 Electrical connector
2 Clip
3 Nut

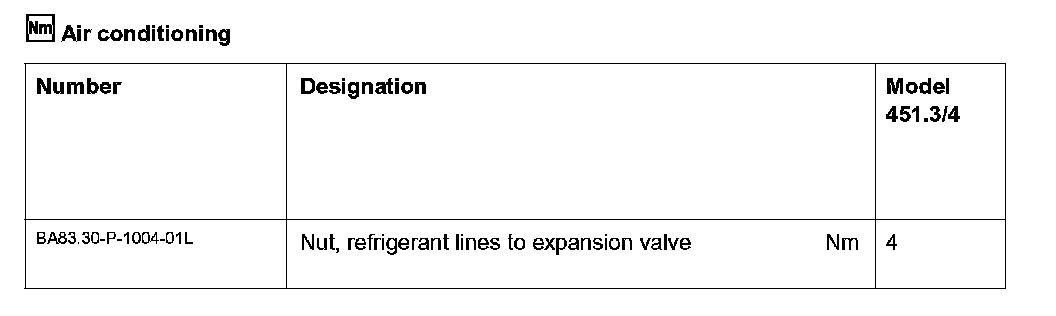

4 Refrigerant lines
5 Retaining plate
6 Electrical connector
7 Screwdriver
8 Brake fluid reservoir

B12 Refrigerant pressure sensor
Y19/1 Interior air conditioning expansion valve

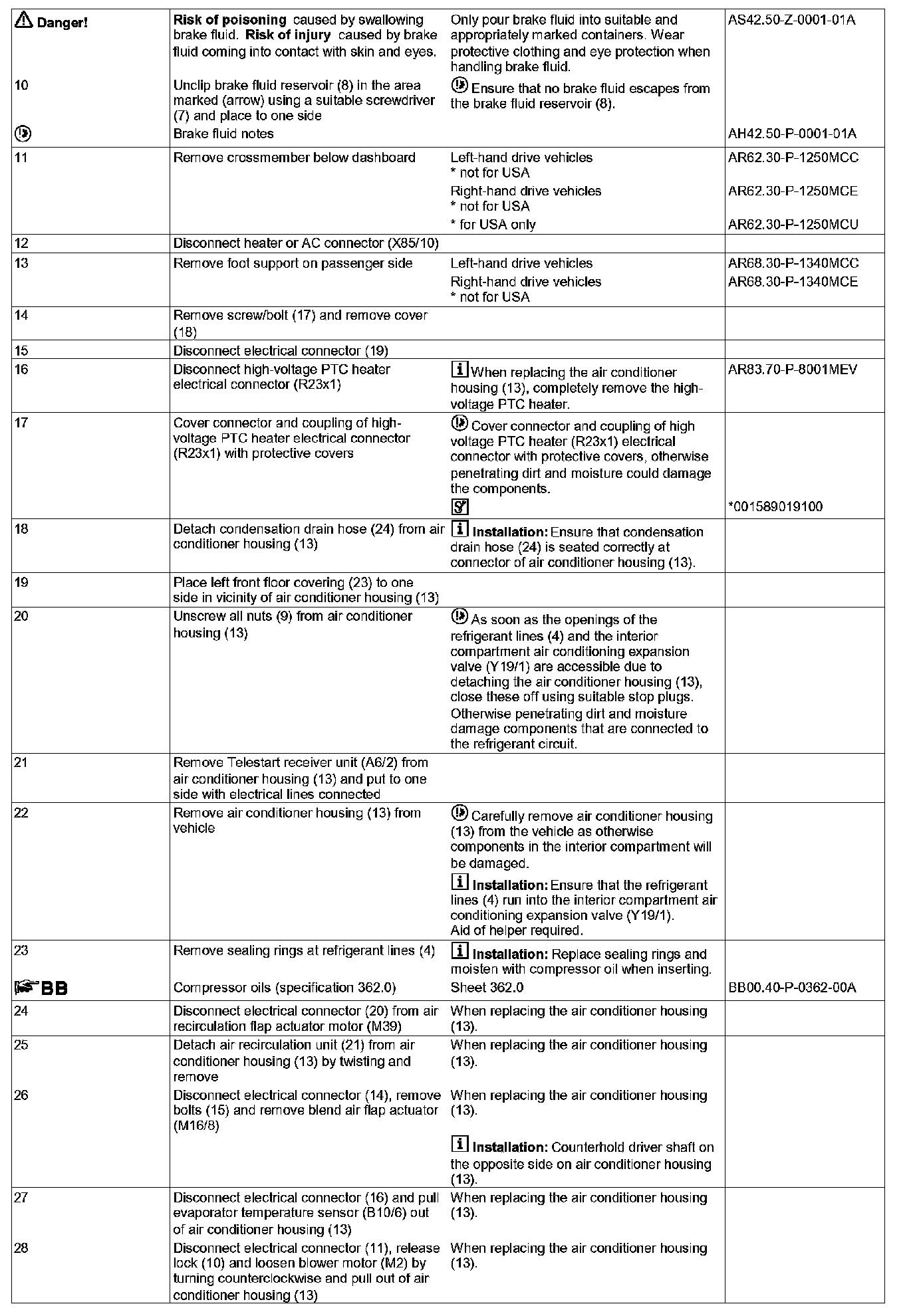

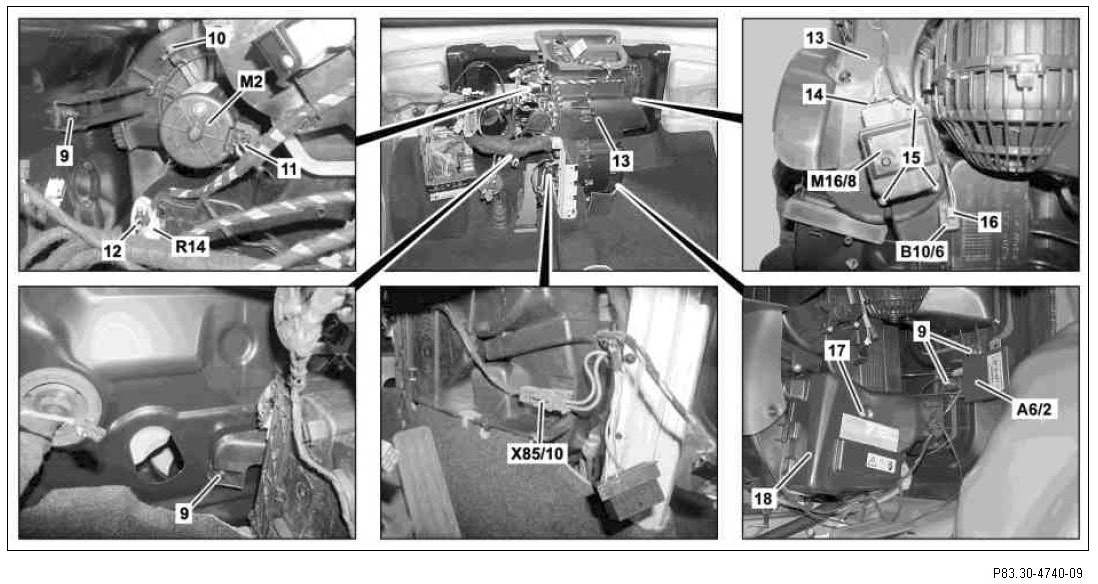

9 Nuts
10 Lock
11 Electrical connector
12 Electrical connector
13 AC housing
14 Electrical connector
15 Bolts
16 Electrical connector
17 Screw
18 Cover

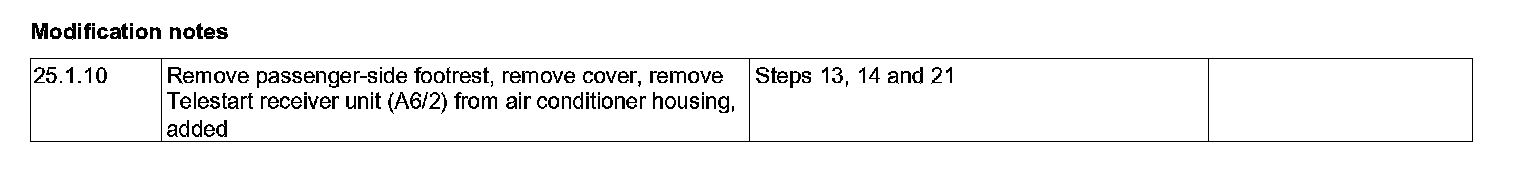

A6/2 Telestart receiver
B10/6 Evaporator temperature sensor
M2 Blower motor
M16/8 Blend air flap actuator
R14 Blower motor series resistor group
X85/10 Heating or air conditioning connector

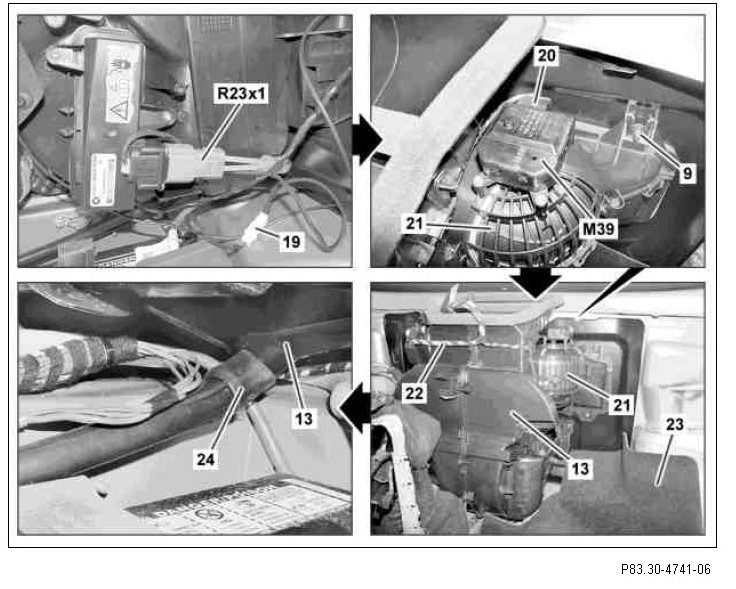

9 Nut
13 AC housing
19 Electrical connector
20 Electrical connector

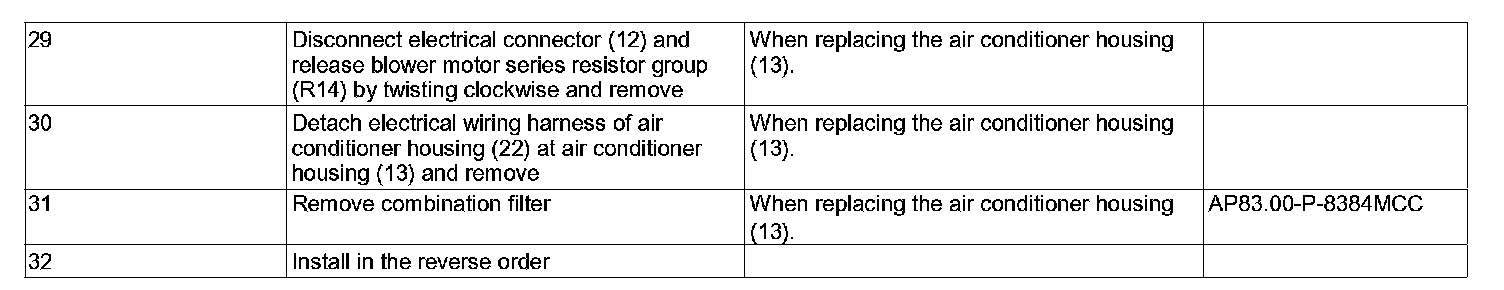

21 Air recirculation box
22 Air conditioner housing electrical wiring harness
23 Floor Covering
24 Condensation drain hose

M39 Air recirculation flap actuator motor
R23x1 High-voltage PTC heater electrical connector
