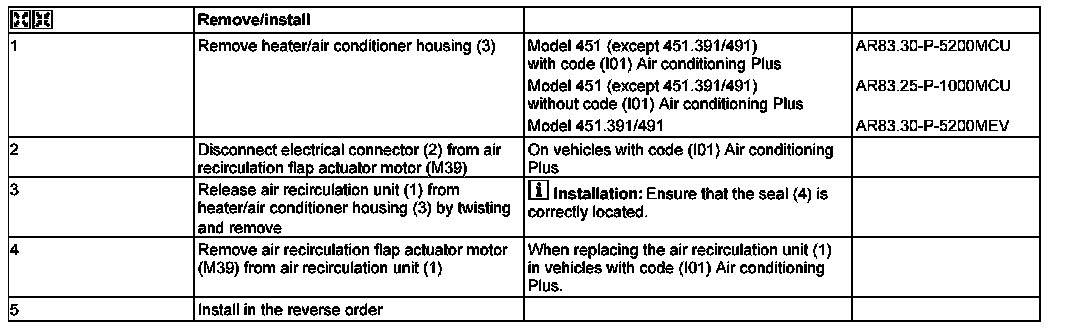

AR83.10-P-0100MCU Air recirculation unit, remove/install

AR83.10-P-0100MCU Air Recirculation Unit, Remove/Install

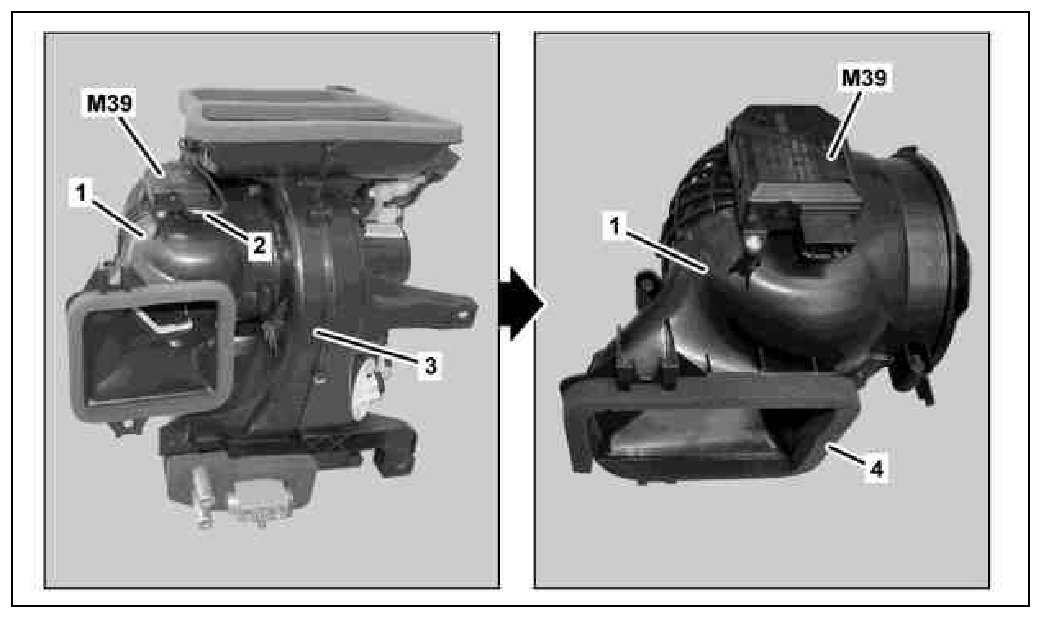

1 Air recirculation box
2 Electrical connector (with code (I01) Air conditioning Plus)
3 Heater/air conditioner housing
4 Gasket
M39 Air recirculation flap actuator motor (with code (I01) Air conditioning Plus)
