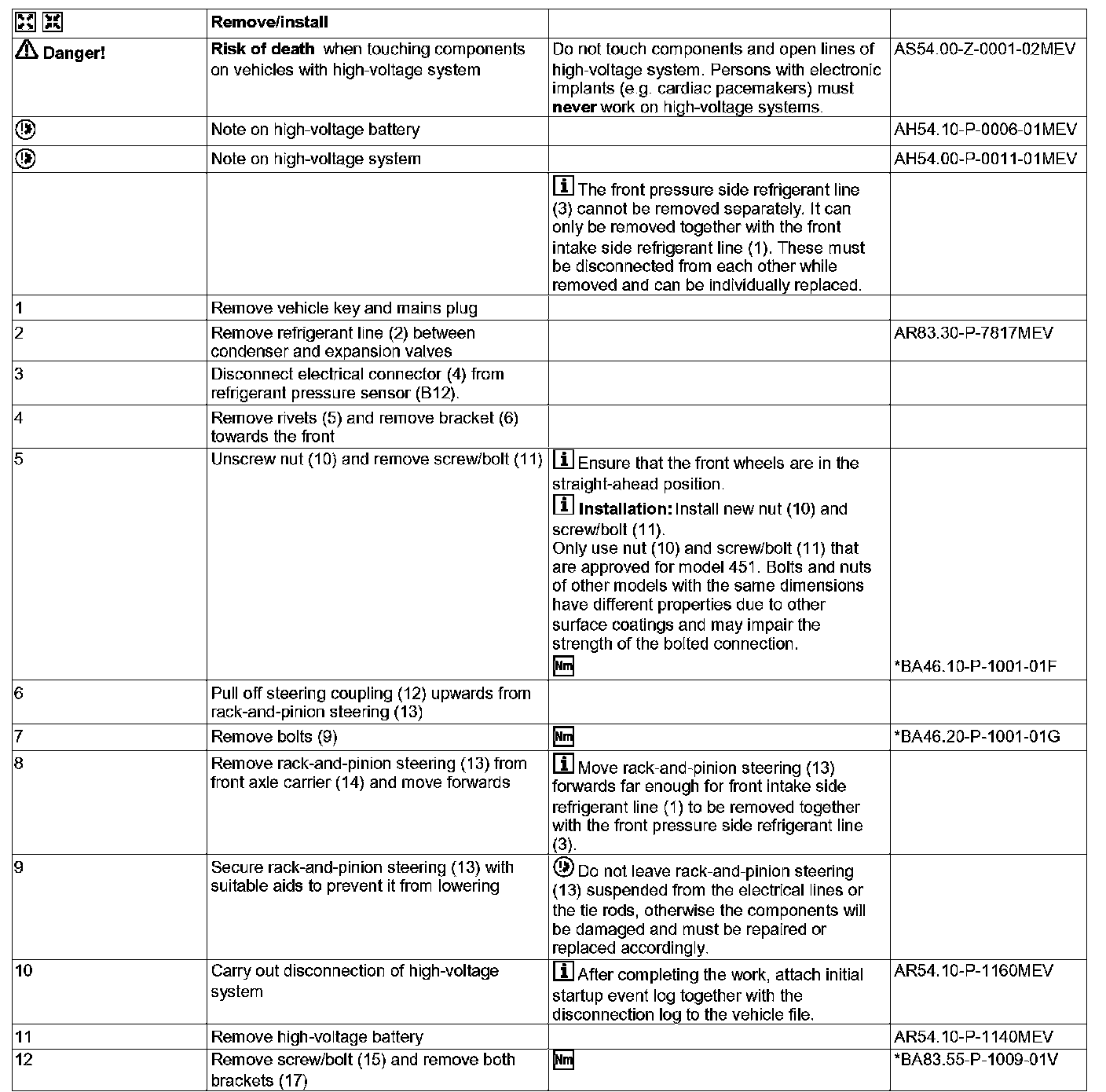

AR83.50-P-6825MEV Remove/Install Front Thrust-Side Refrigerant Line

AR83.50-P-6825MEV Remove/install Front Thrust-side Refrigerant Line
- MODEL 451.391/ 491

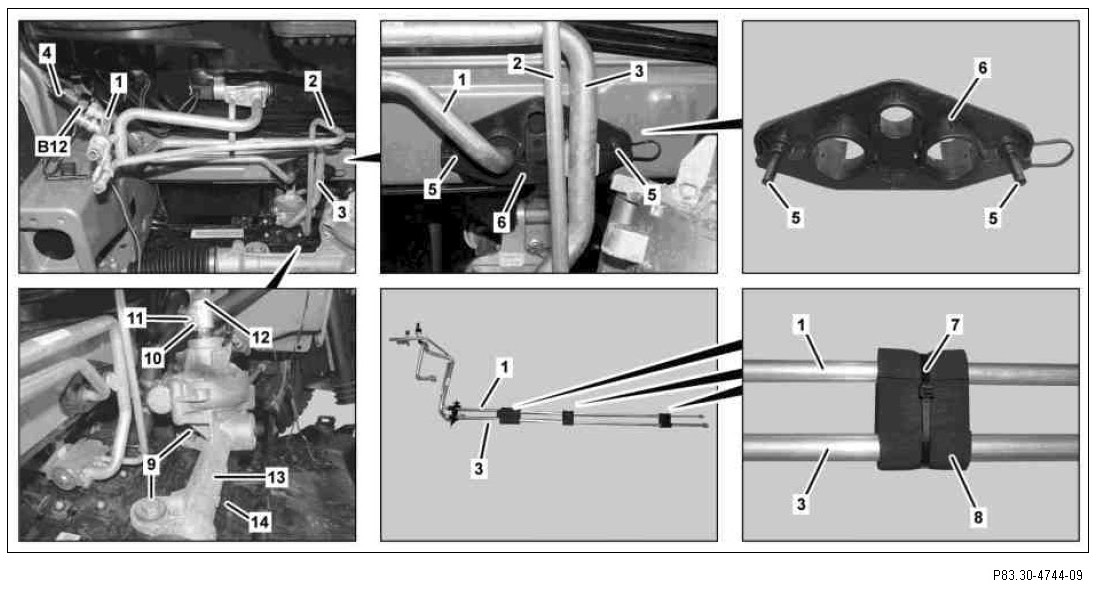

1 Front intake side refrigerant line
2 Refrigerant line
3 Front pressure side refrigerant line
4 Electrical connector
5 Rivet
6 Bracket
7 Cable tie
8 Insulating material
9 Bolts
10 Nut
11 Screw
12 Steering coupling
13 Rack-and-pinion steering
14 Front axle carrier

B12 Refrigerant pressure sensor

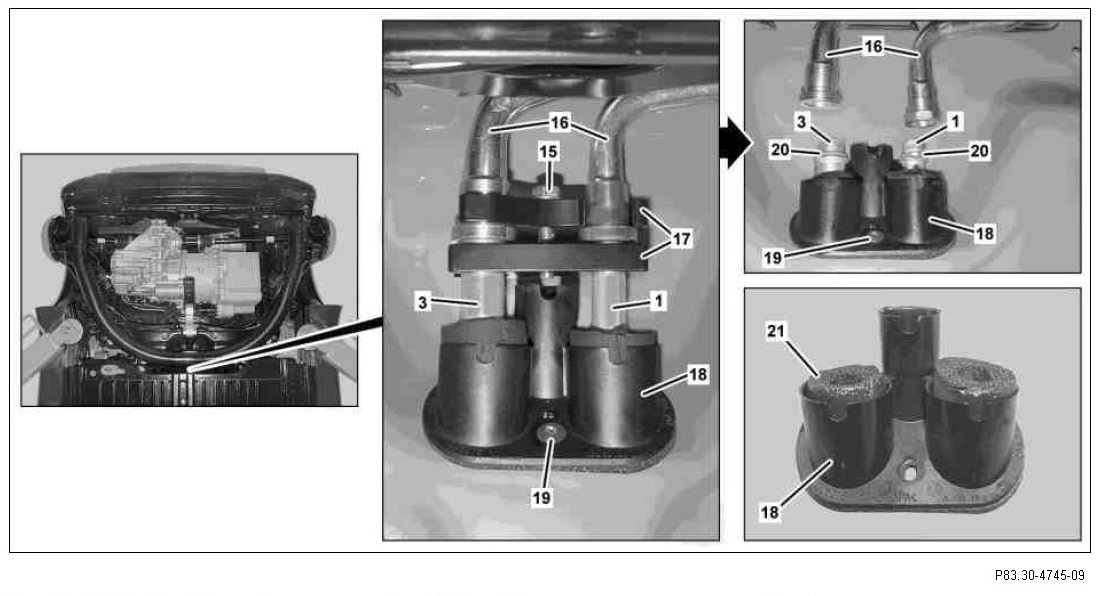

1 Front intake side refrigerant line
3 Front pressure side refrigerant line
15 Screw
16 Refrigerant lines
17 Bracket
18 Bracket
19 Screw
20 Sealing ring
21 Gasket
