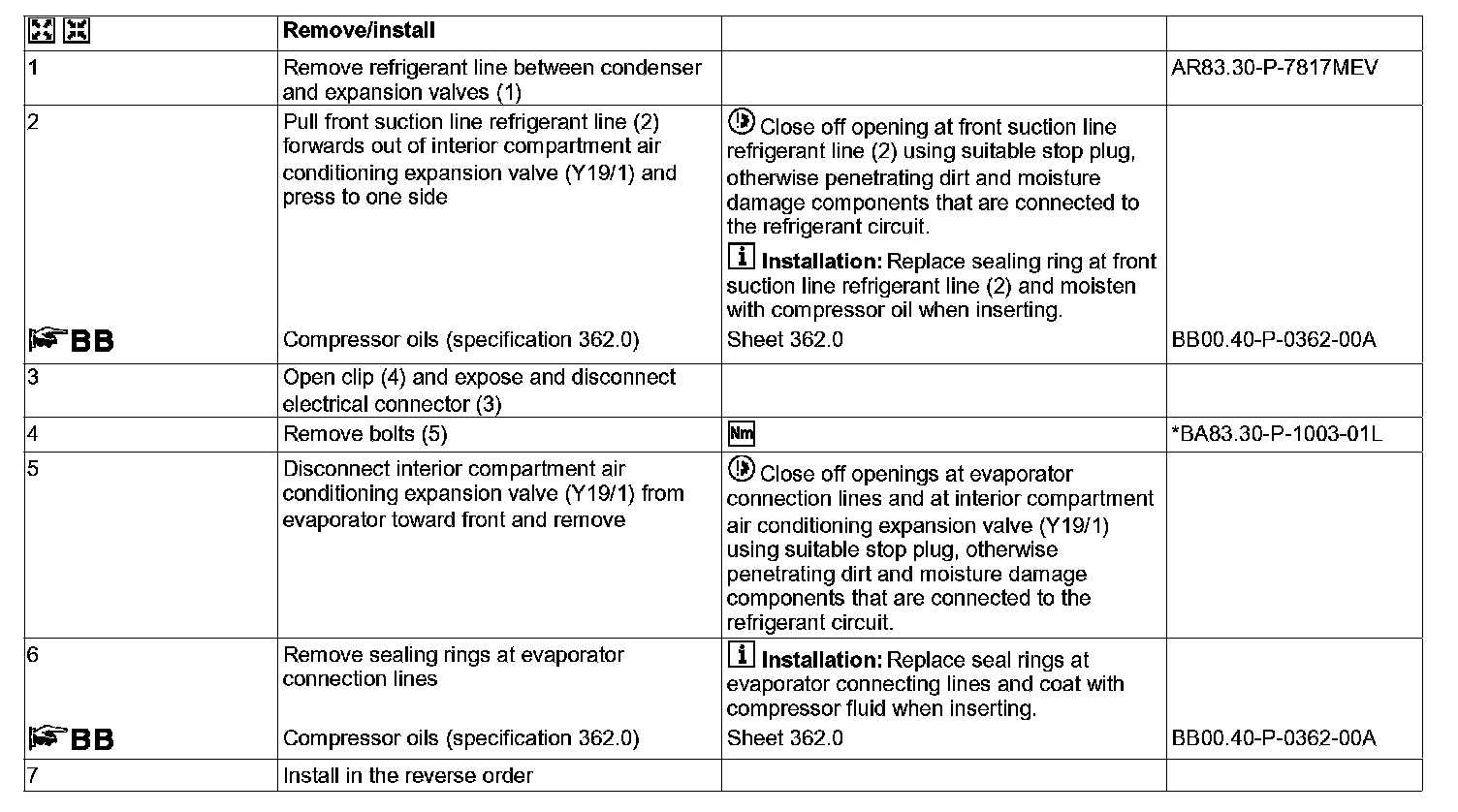

AR83.55-P-5522MEV Remove/Install Interior Compartment Expansion Valve

AR83.55-P-5522MEV Remove/install Interior Compartment Expansion Valve
- ENGINES 780.009 in MODEL 451.391 /491

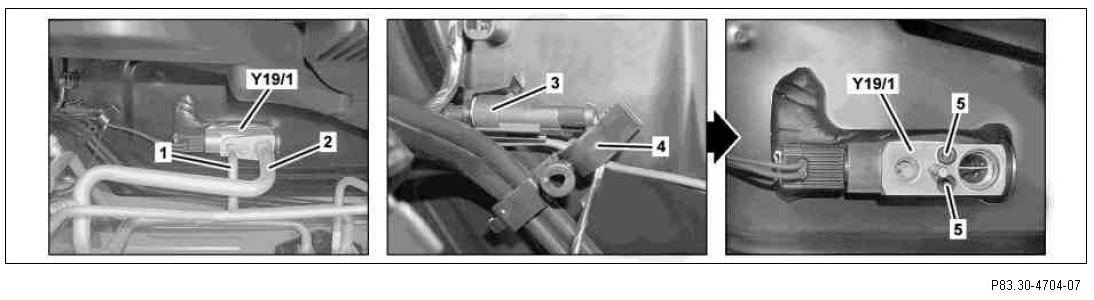

1 Refrigerant line between condenser and expansion valves
2 Front suction line refrigerant line
3 Electrical connector
4 Clip
5 Screw

Y19/1 Interior air conditioning expansion valve
