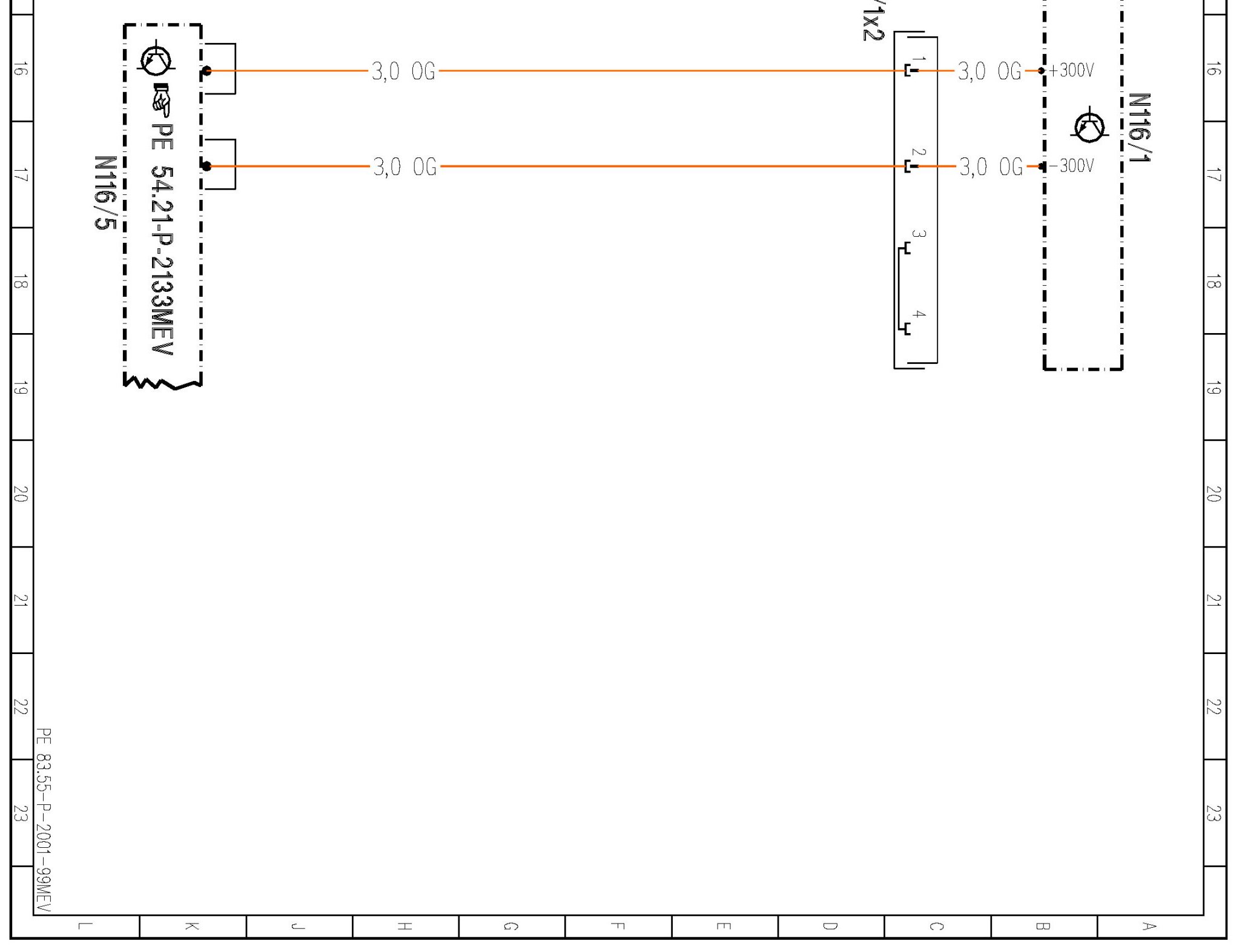

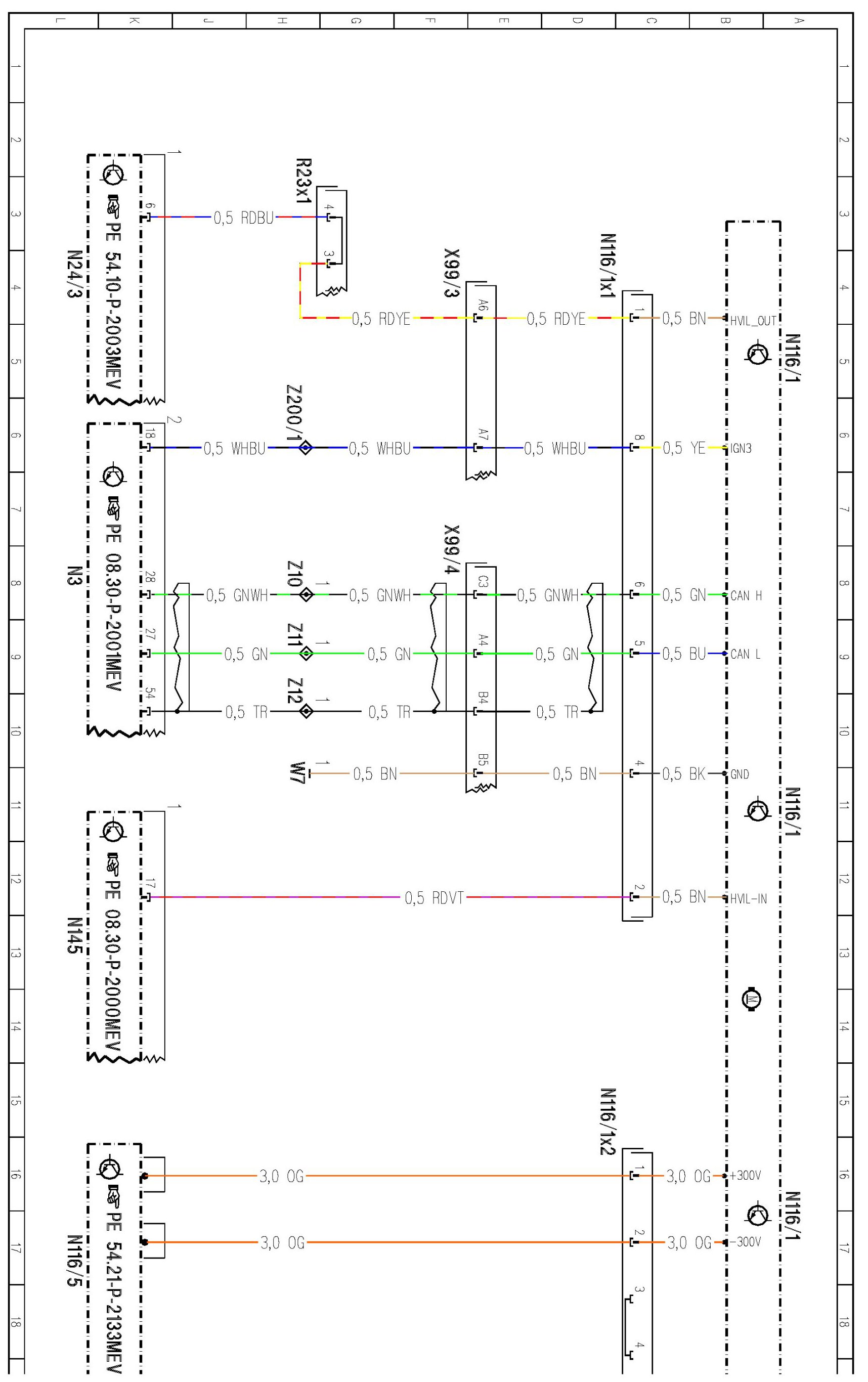

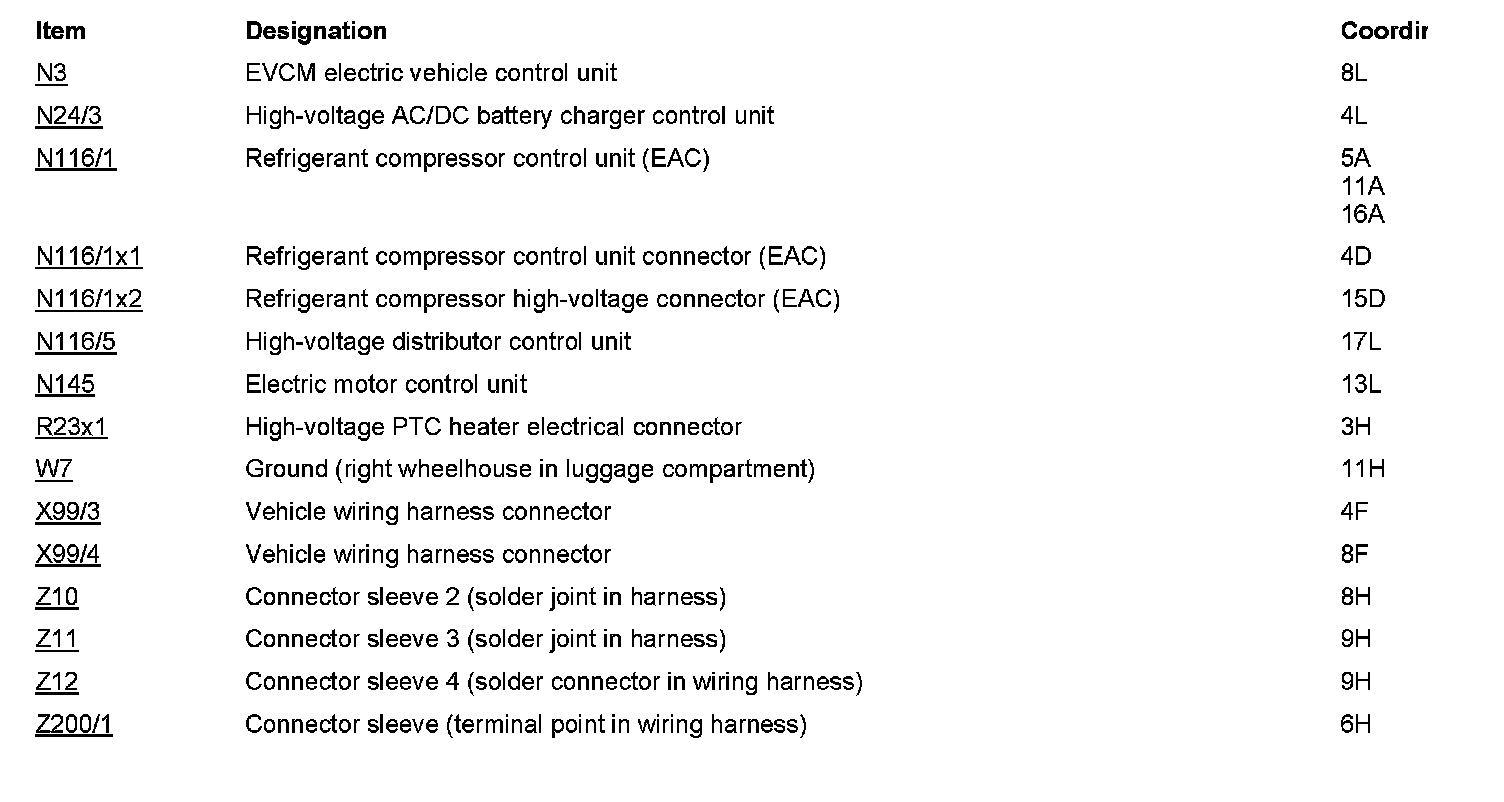

PE83.55-P-2001MEV Electric Refrigerant Compressor Control Unit



PE83.55-P-2001MEV Electric Refrigerant Compressor Control Unit

451 83 Heating and Air Conditioning
Engine 780.009 in model 451.391 /491
