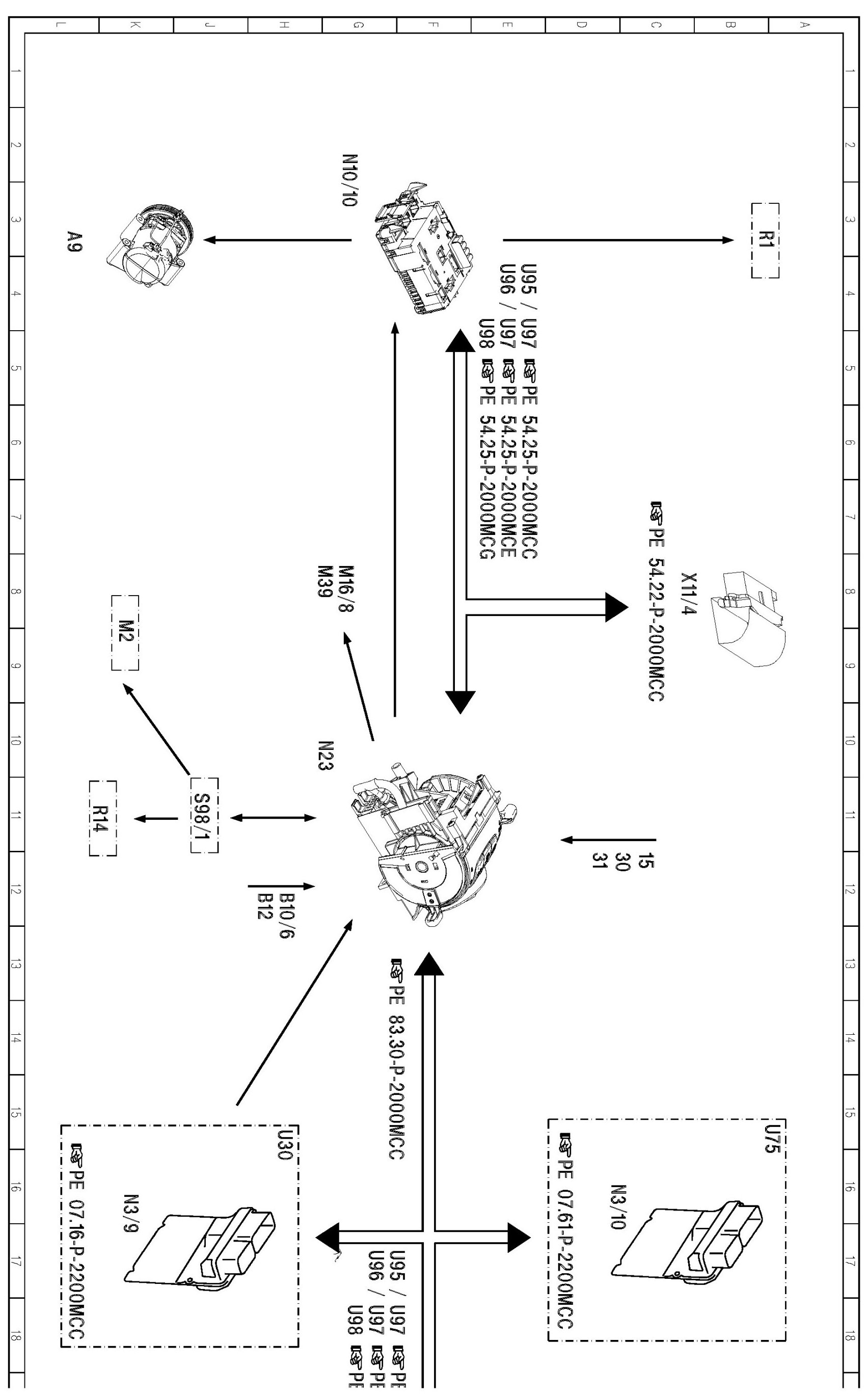

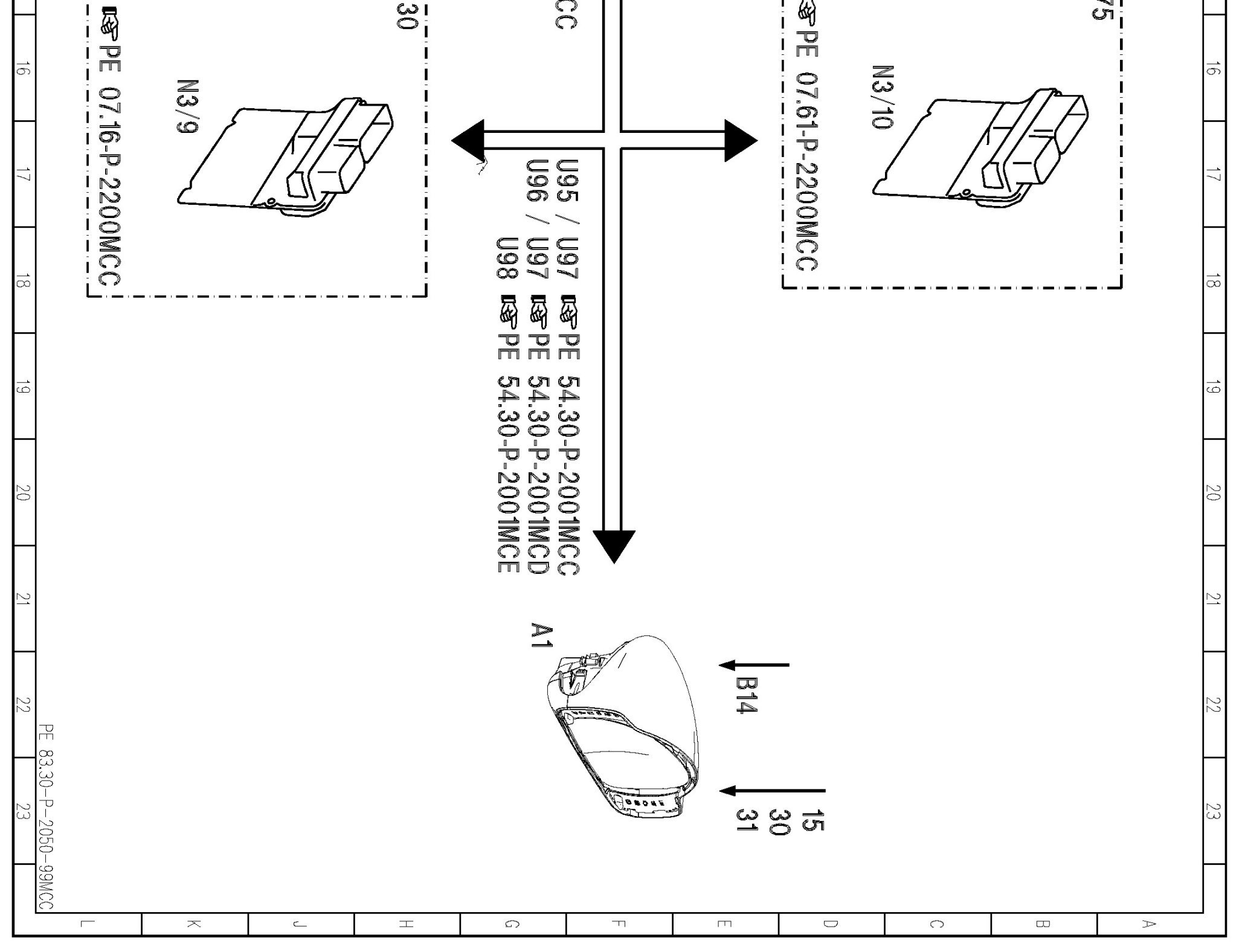

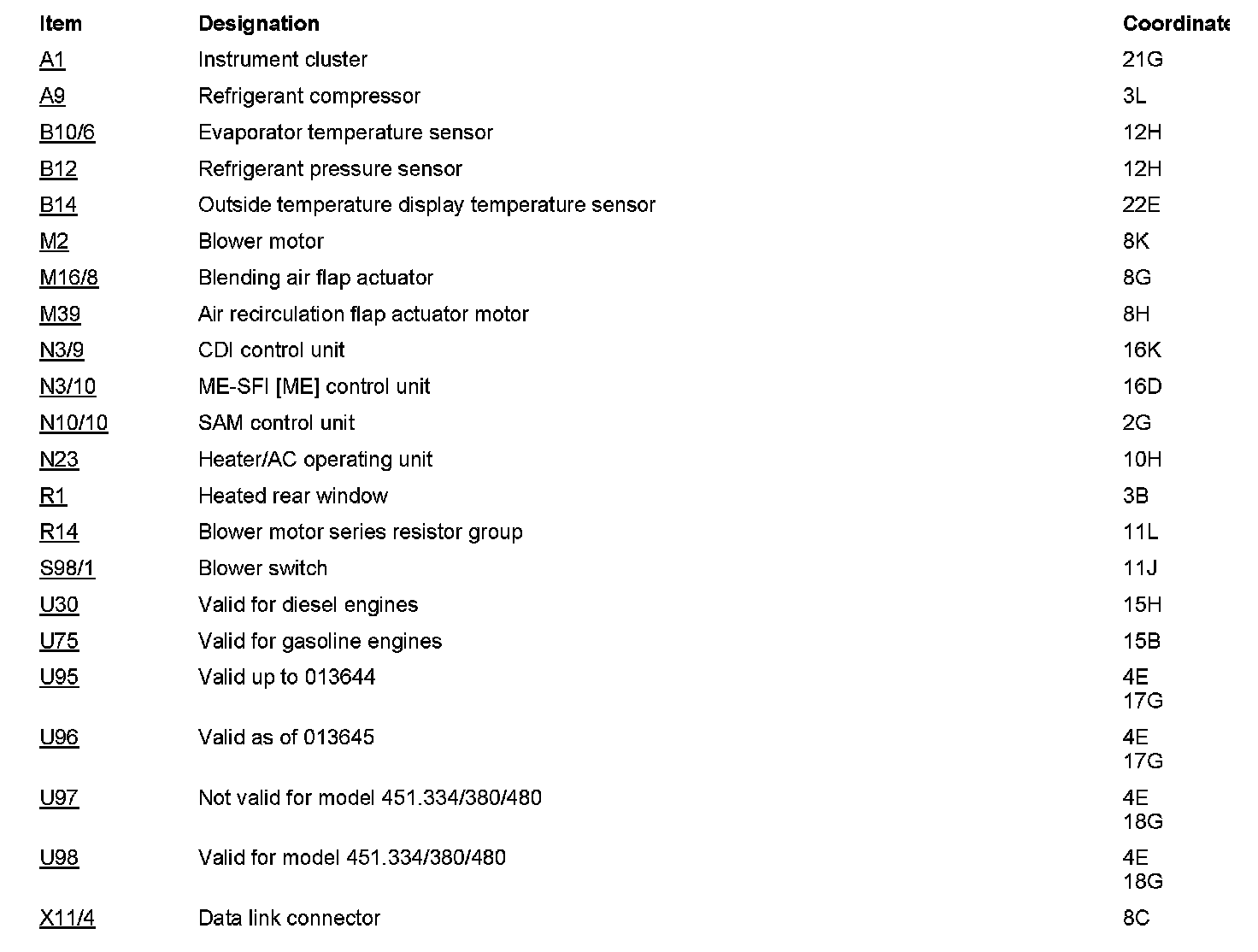

PE83.30-P-2050MCC Electrical Function Schematic For Air Conditioning



PE83.30-P-2050MCC Electrical Function Schematic For Air Conditioning

451 83 Heating and Air Conditioning
