Home >> Smart >> 2012 >> ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> PE83.30-P-2000MEV Air Conditioning

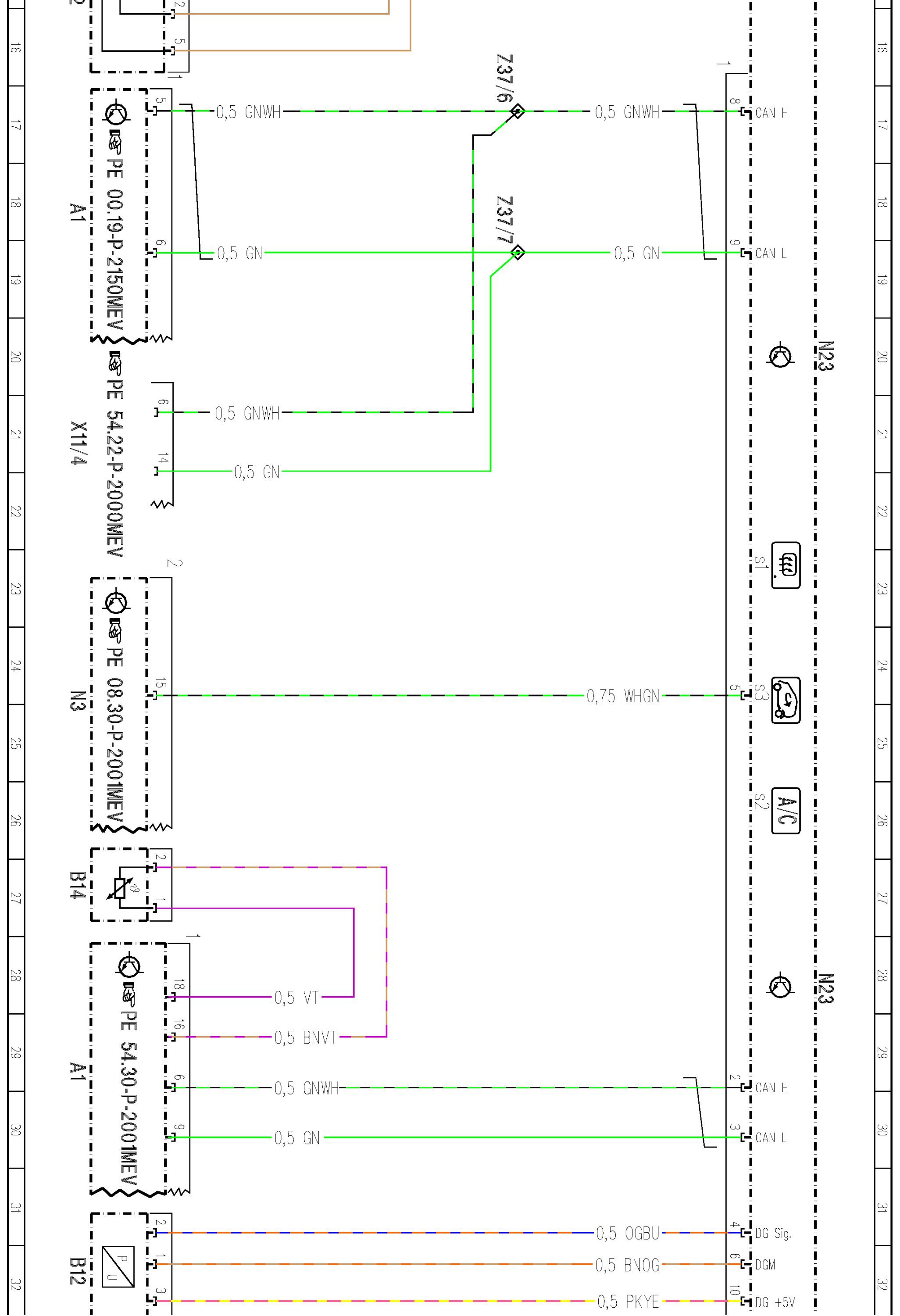

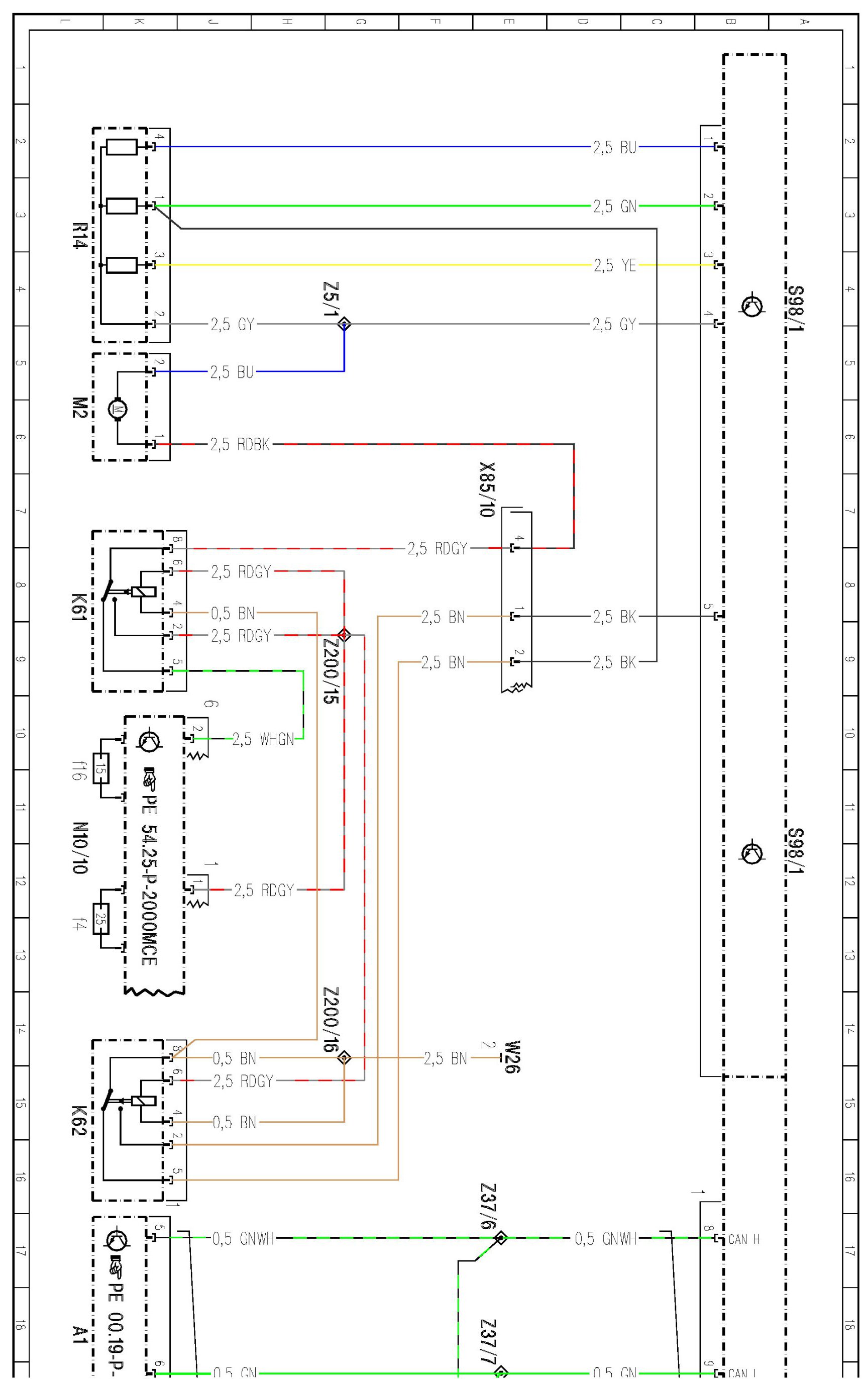

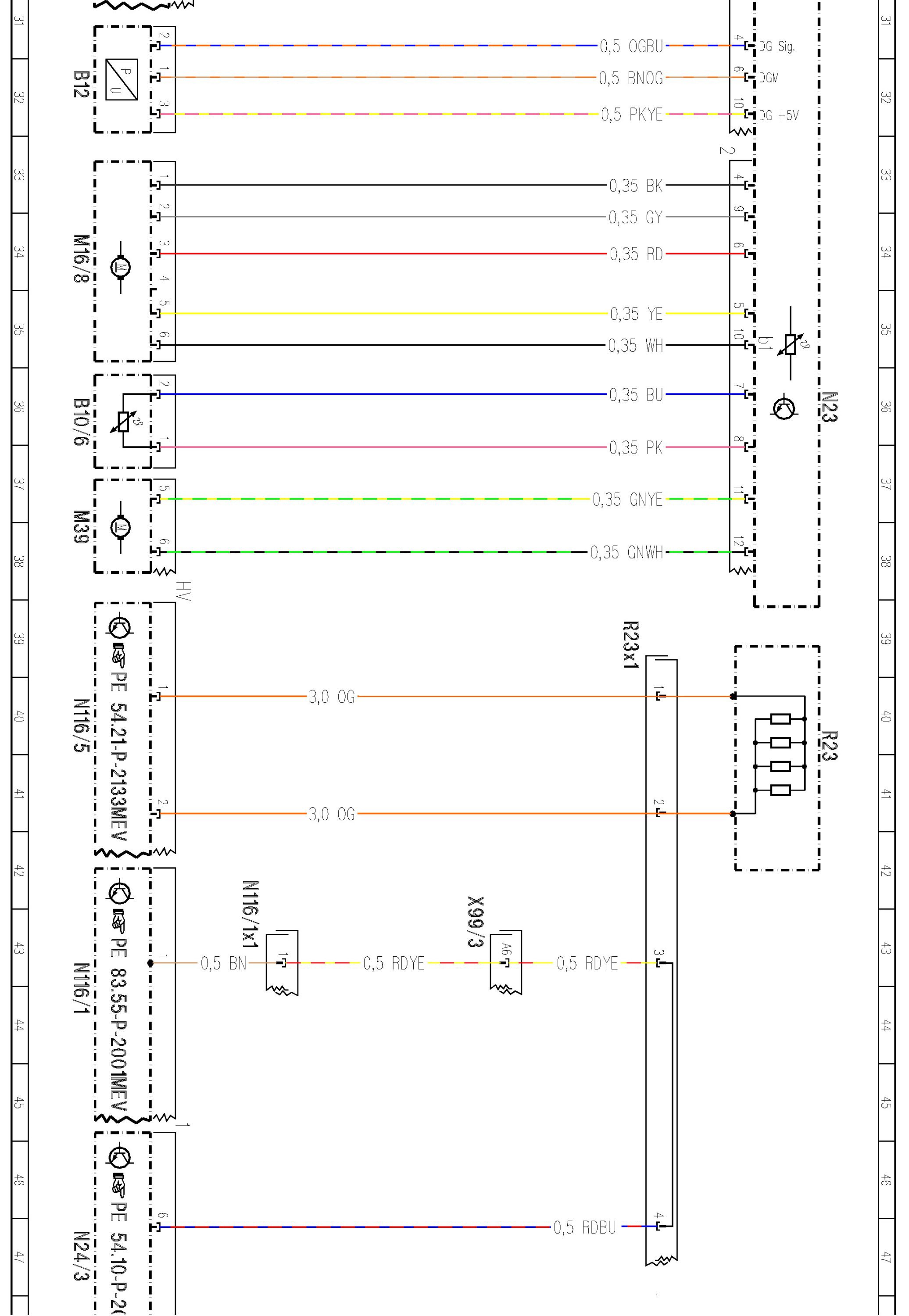

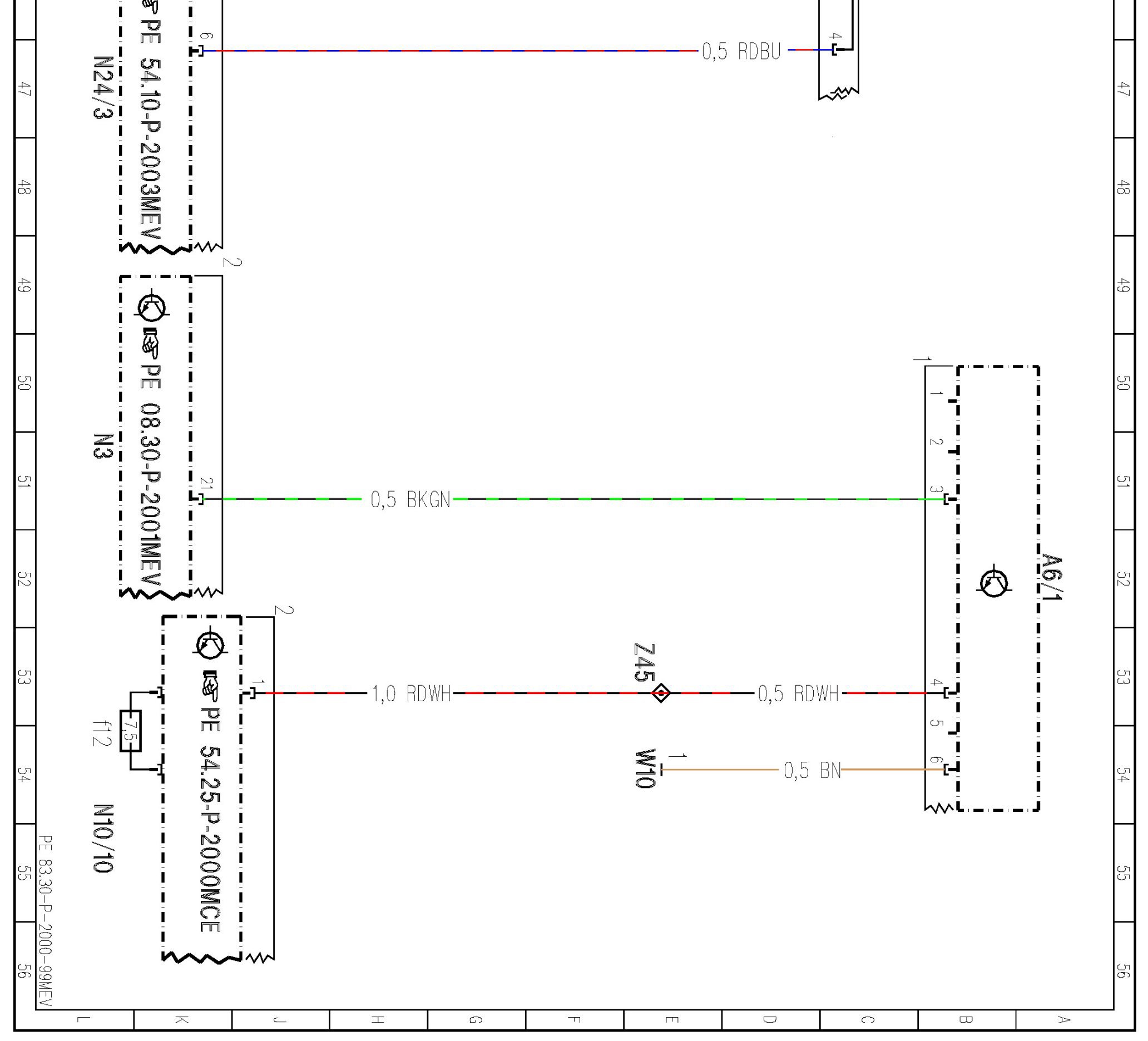

PE83.30-P-2000MEV Air Conditioning

PE83.30-P-2000MEV Air Conditioning

451 83 Heating and Air Conditioning
Model 451.391/ 491
