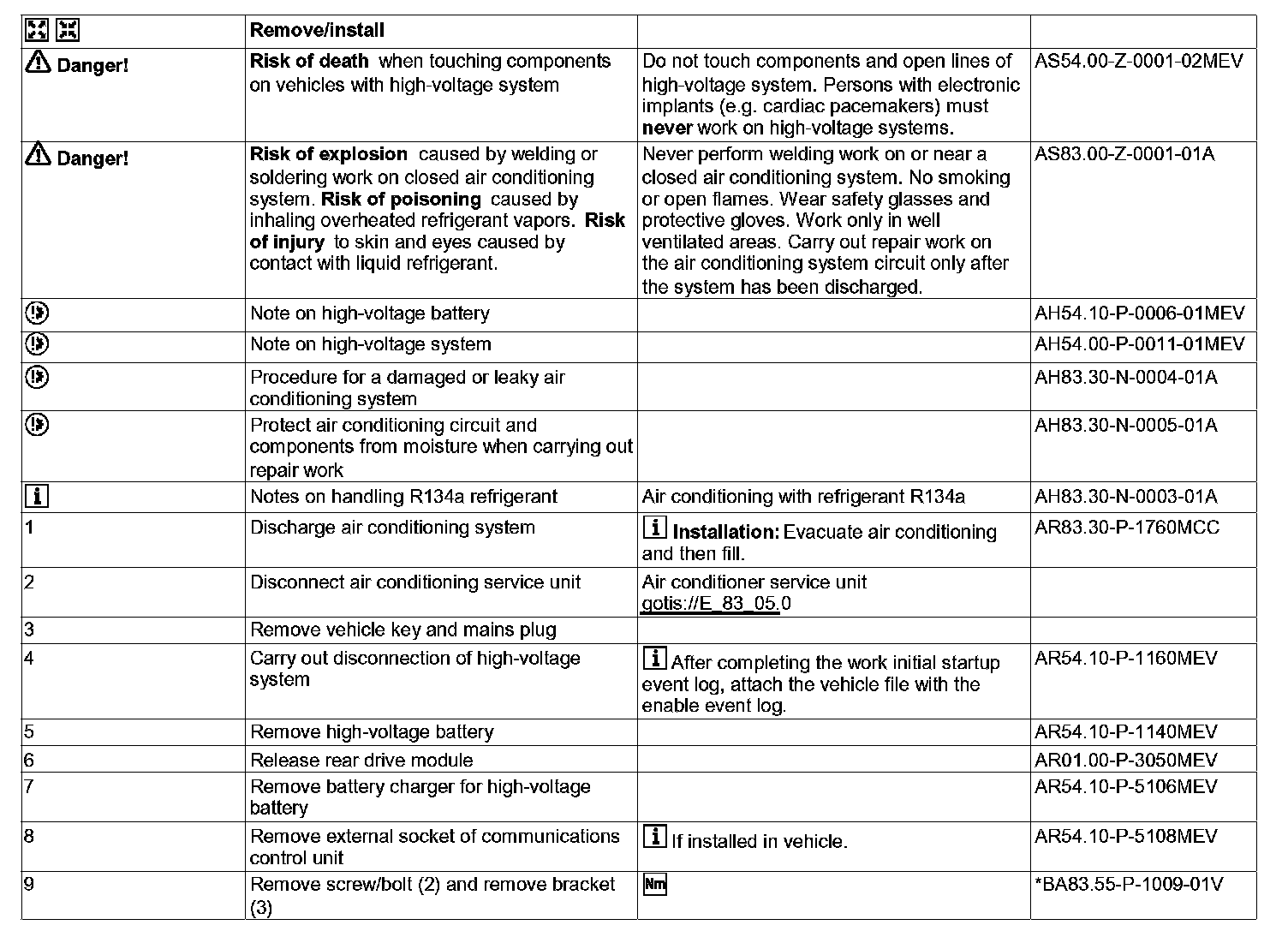

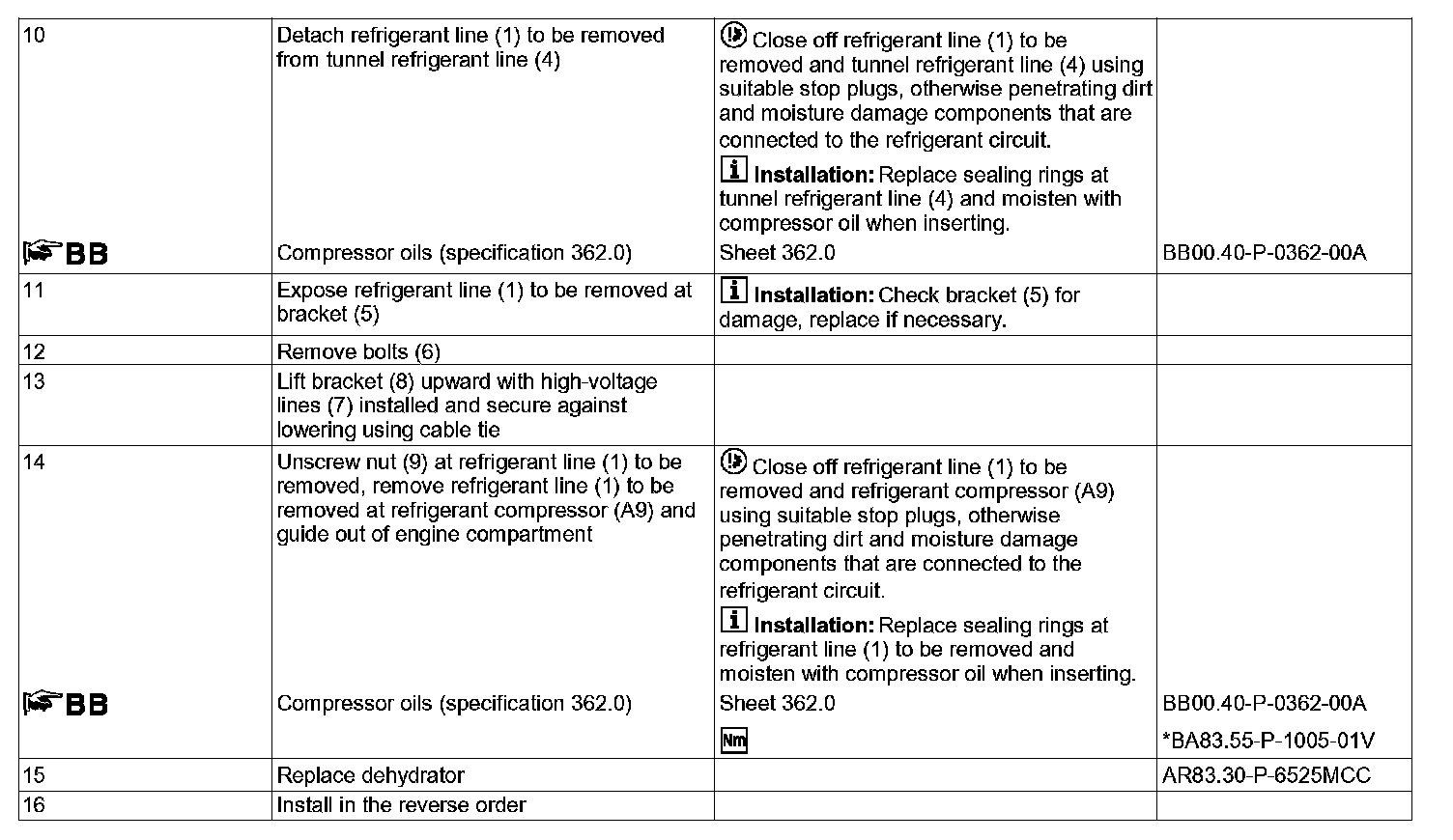

AR83.30-P-7810MEV Remove/Install Refrigerant Lines At Refrigerant Compressor

AR83.30-P-7810MEV Remove/install Refrigerant Lines At Refrigerant Compressor
- MODEL 451.391 /491 with ENGINE 780.009

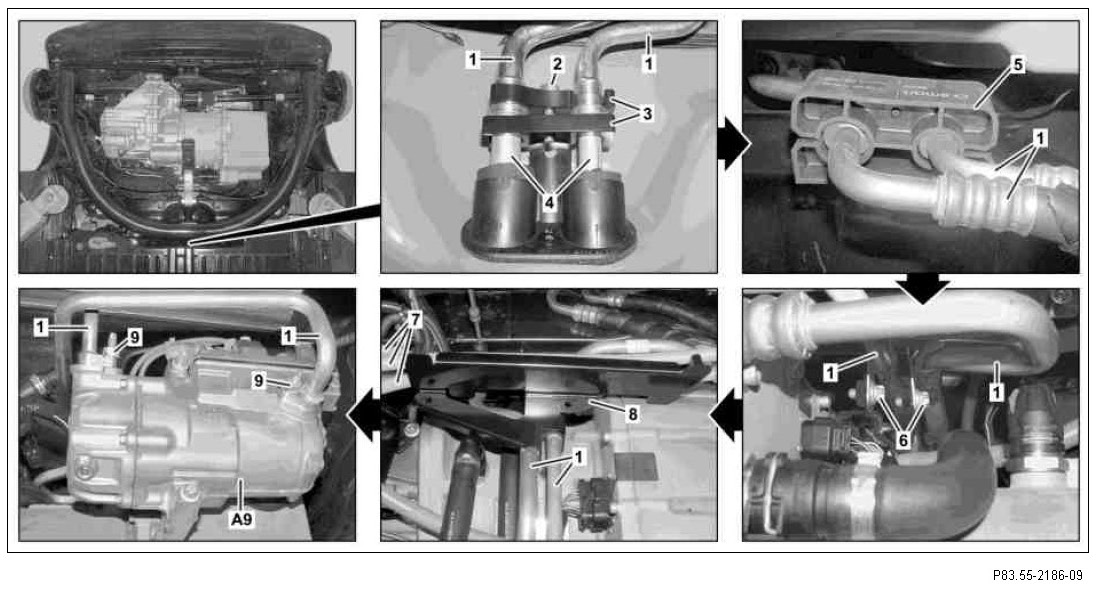

1 Refrigerant lines
2 Screw
3 Bracket
4 Tunnel refrigerant line
5 Bracket
6 Bolts
7 High-voltage lines
8 Bracket
9 Nut

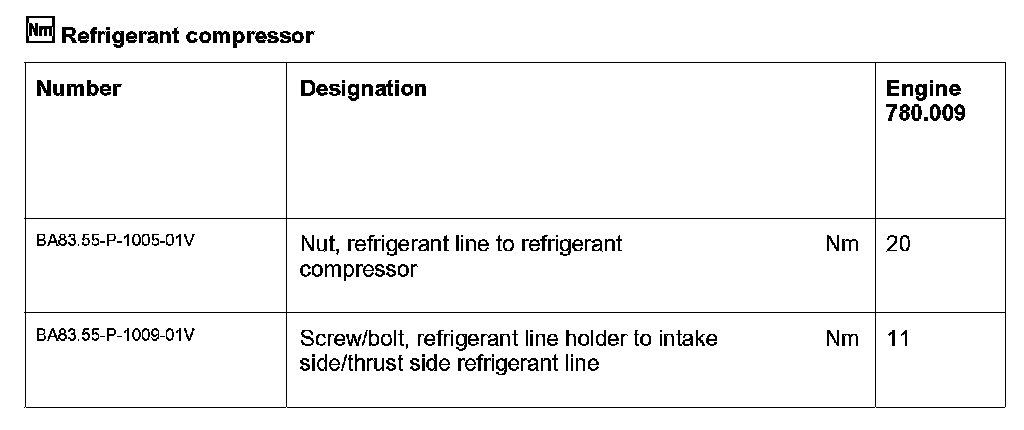

A9 Refrigerant compressor
