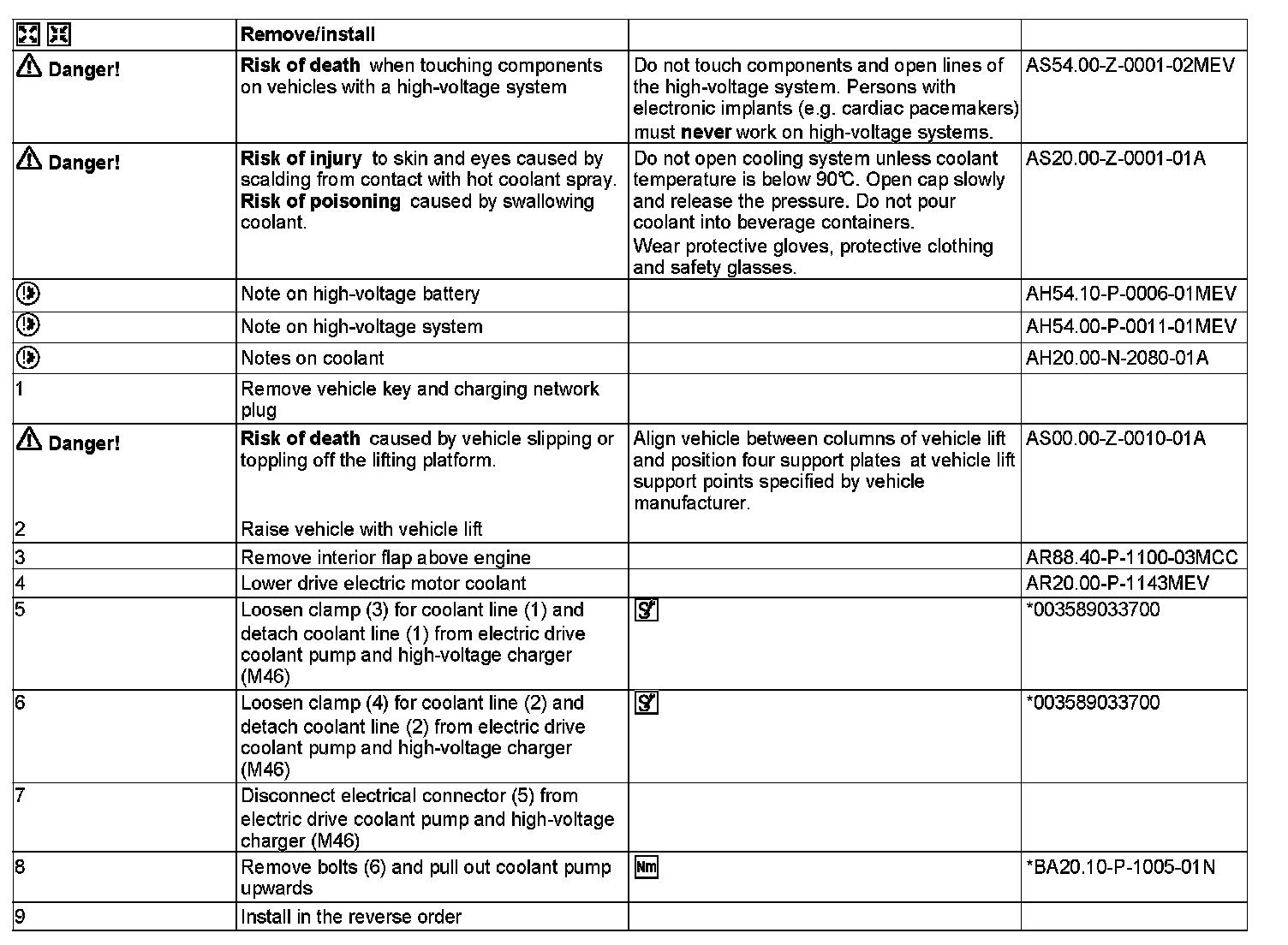

AR20.10-P-1276MEV Remove/Install Electric Motor Cooling Coolant Pump

AR20.00-P-1143-06MEV Ventilate Drive Electric Motor Cooling System

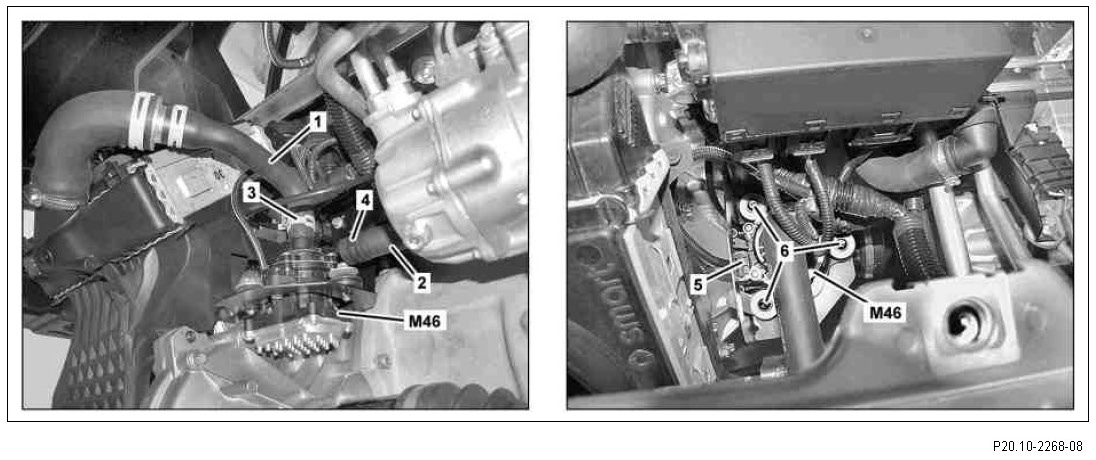

1 Coolant line
2 Coolant line
3 Hose clamp
4 Hose clamp
5 Electrical connector
6 Bolts

M46 Electric drive coolant pump and high-voltage charger
