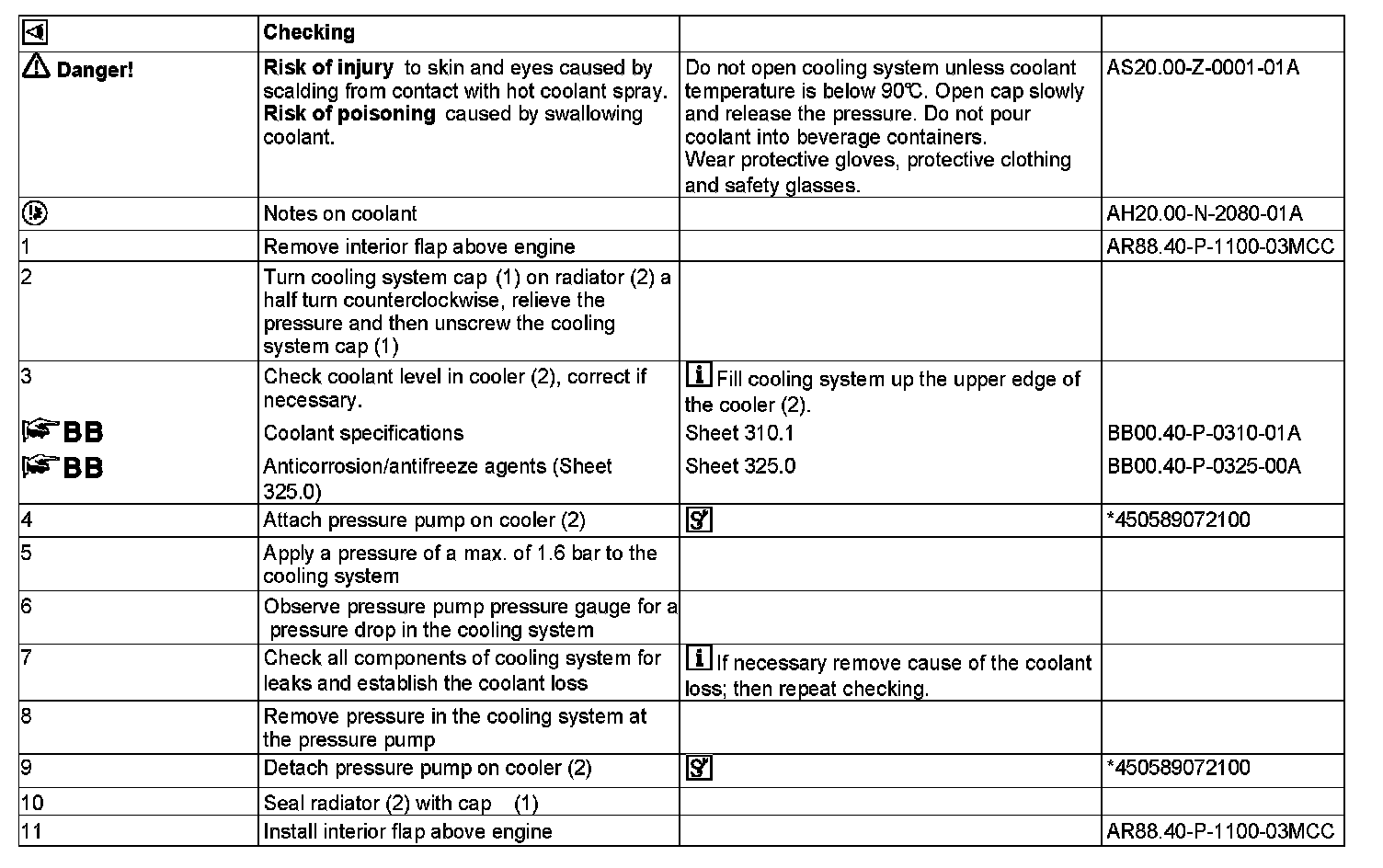

AR20.00-P-1010MEV Inspect Cooling System For Leaks




AR20.00-P-1010MEV Inspect Cooling System For Leaks
- ENGINE 780.009 in MODEL 451.391 /491

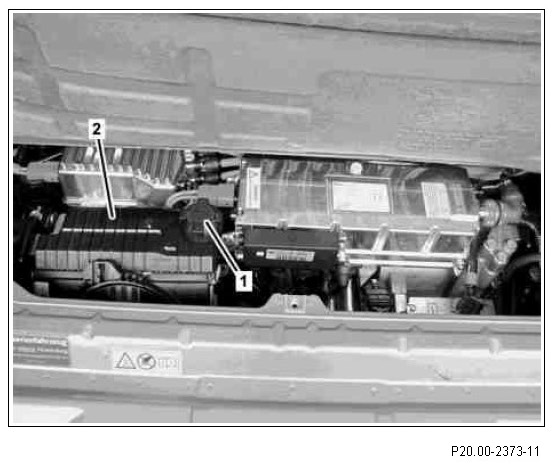

Coolant circuit electric motor







1 Cap
2 Radiator
