AR20.20-P-3865MEV Remove/Install Radiator

AR20.20-P-3865MEV Remove/install Radiator
- ENGINE 780.009 in MODEL 451.391 /491

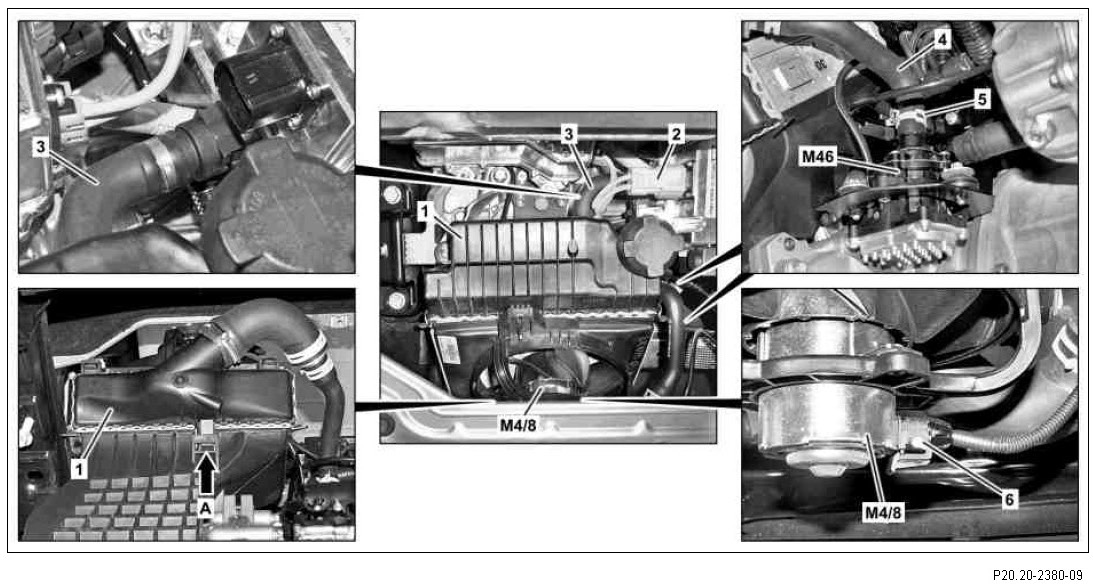

1 Radiator
2 High voltage connector
3 Coolant line
4 Coolant line
5 Hose clamp
6 Electrical connector

M4/8 Electric drive fan motor and high-voltage charger
M46 Electric drive coolant pump and high-voltage charger







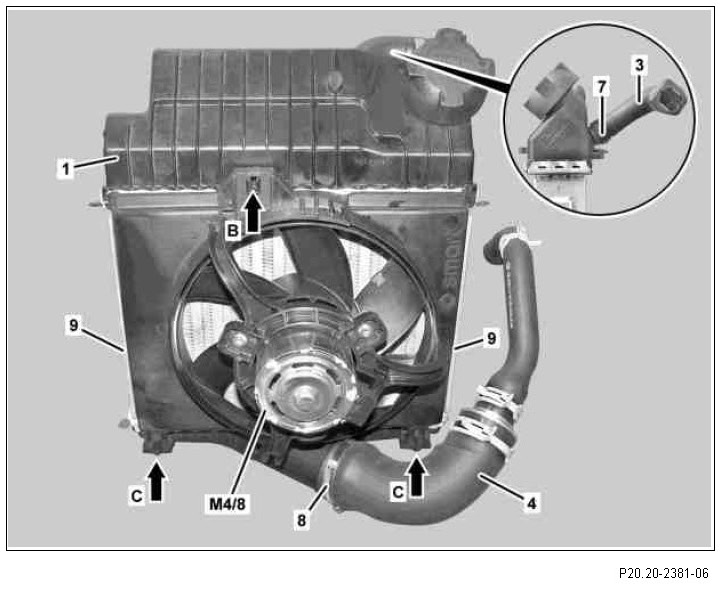

1 Radiator
3 Coolant line
4 Coolant line
7 Hose clamp
8 Screw clamp
9 Gasket

M4/8 Electric drive fan motor and high-voltage charger
