AP20.00-P-2080MEV Replace Coolant




AP20.00-P-2080MEV Replace Coolant
- ENGINES 780.009 in MODEL 451.391 /491

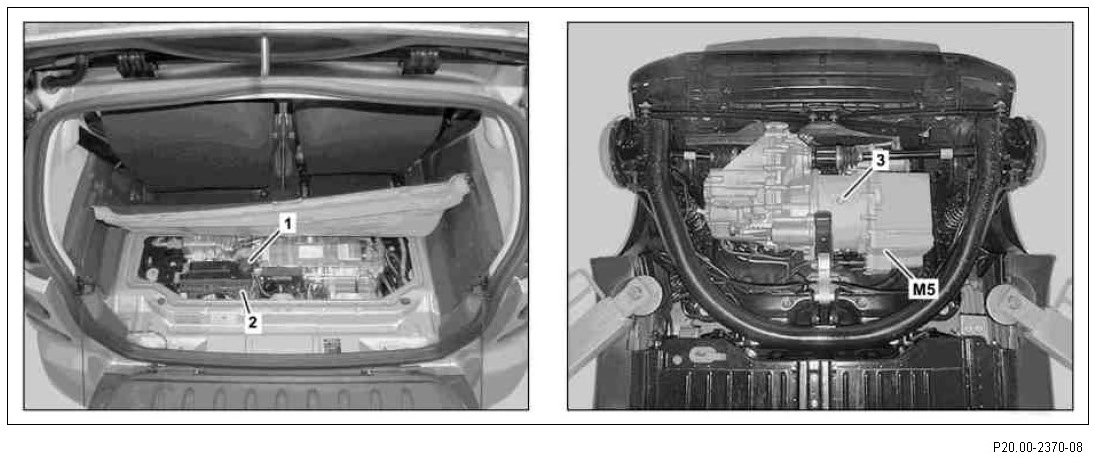

- Electric motor coolant circuit







1 Cap
2 Radiator
3 Coolant drain plug

M5 Electric drive motor
