Electric Drive Systems: Testing and Inspection

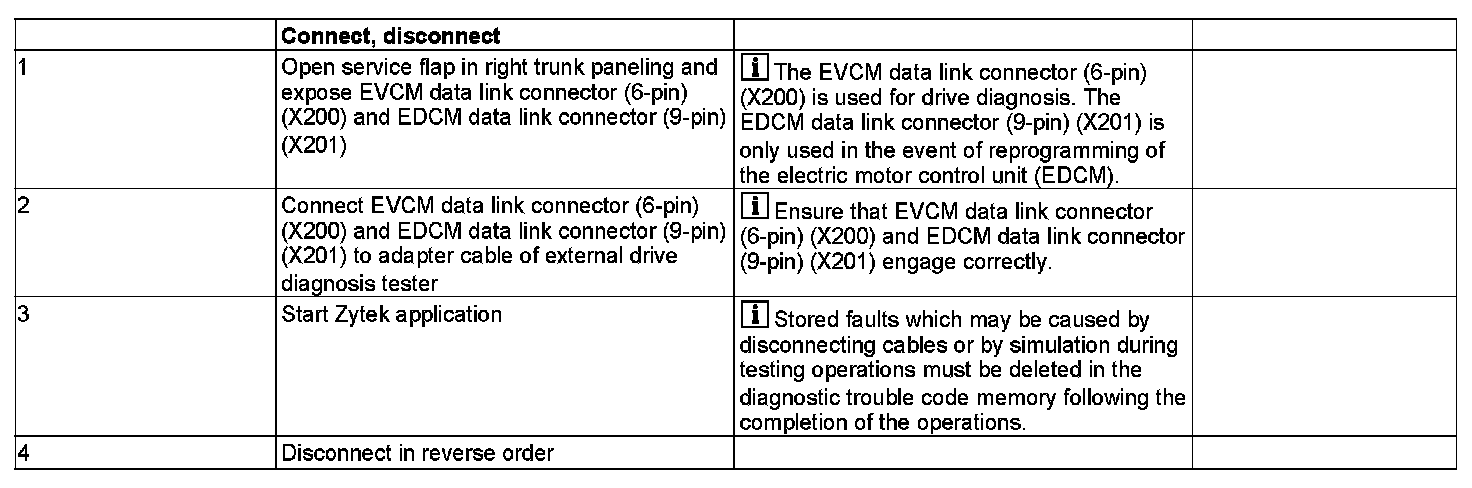

AD00.00-P-2003MEV Connect Diagnosis Testing Equipment
- MODEL 451.391 /491 with ENGINE 780.009

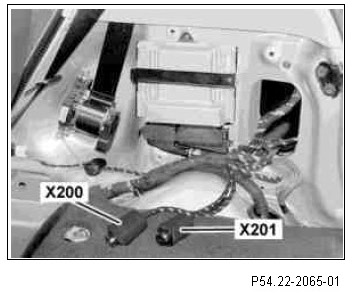

Shown on removed paneling

X200 EVCM data link connector (6-pin)
X201 EDCM data link connector (9-pin)
