AR08.20-P-0020MEV Remove/Install Air Electric Drive Control Unit

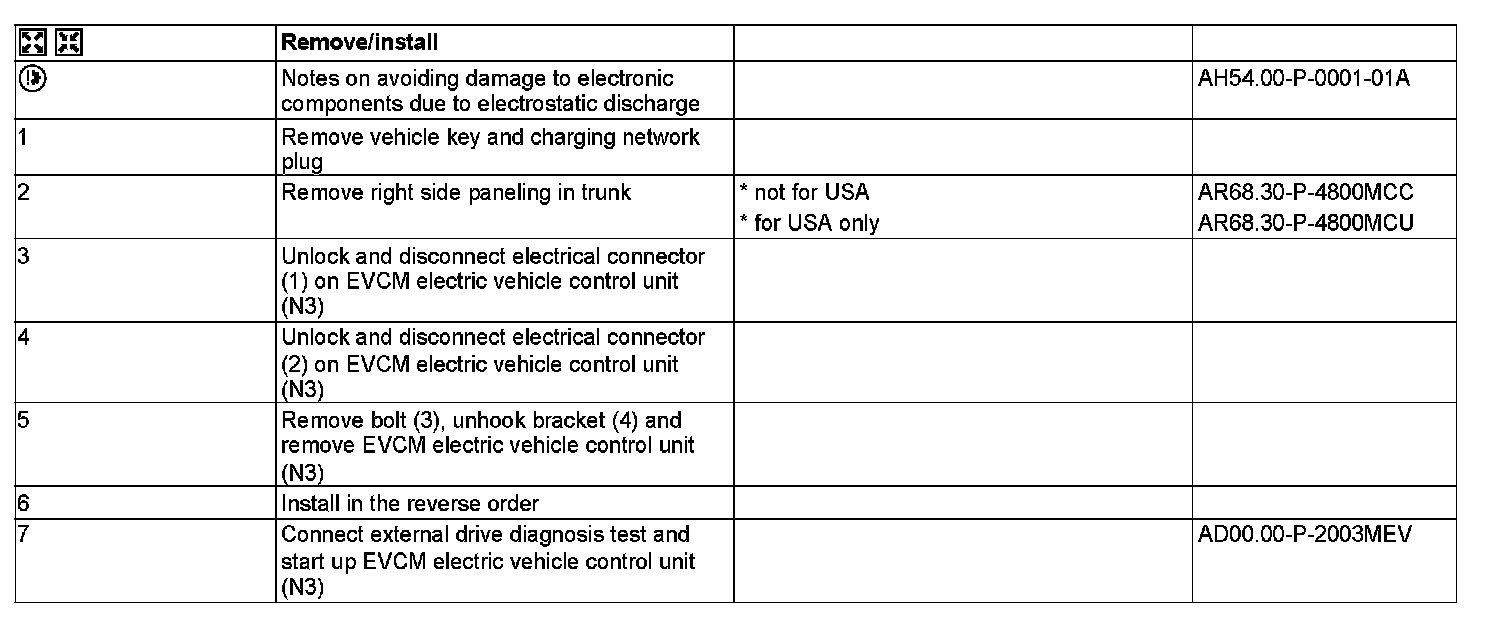

AR08.20-P-0020MEV Remove/install Air Electric Drive Control Unit
- ENGINE 780.009 in MODEL 451.391 /491

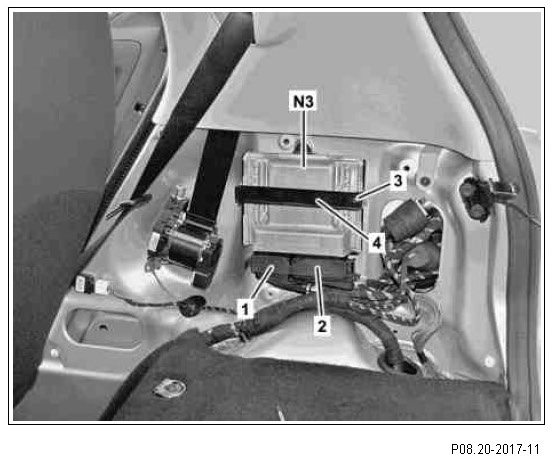

1 Electrical connector
2 Electrical connector
3 Bolt
4 Bracket

N3 EVCM electric vehicle control unit
