Drive Motor / Generator: Service and Repair

AR01.00-P-3050MEV Release And Position Rear Drive Module
- ENGINES 780.009 in MODEL 451.391 /491

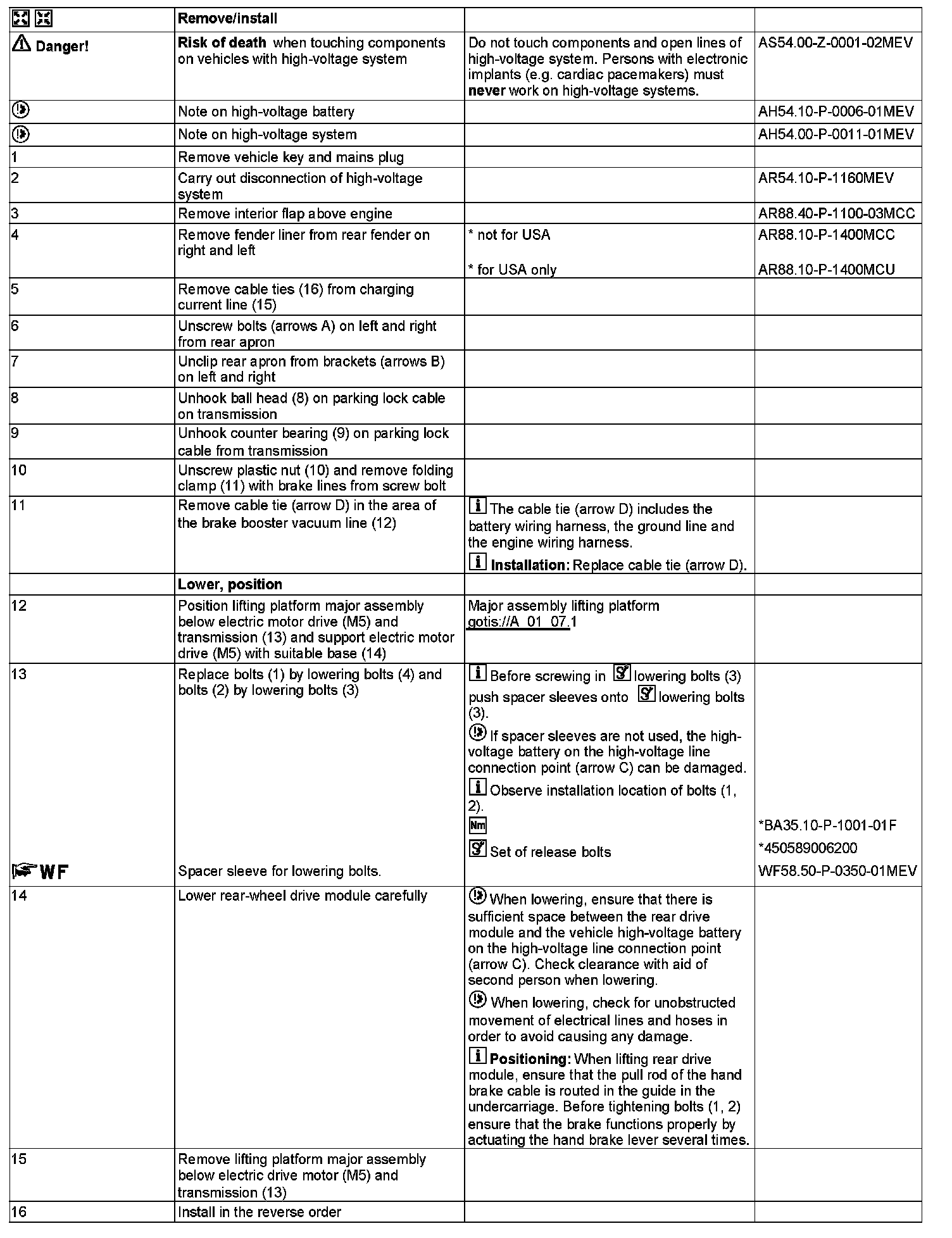

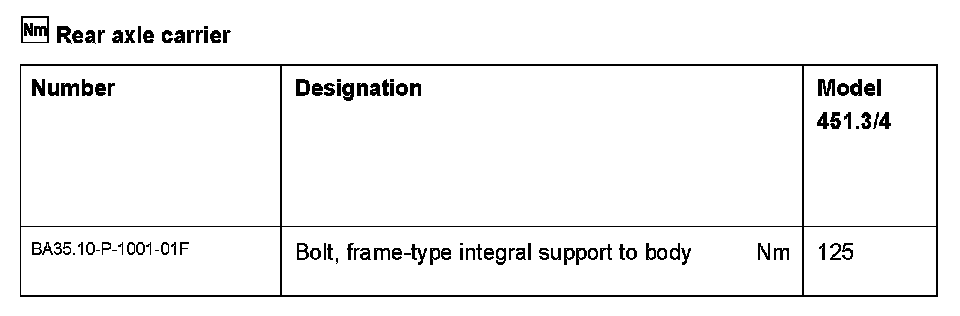

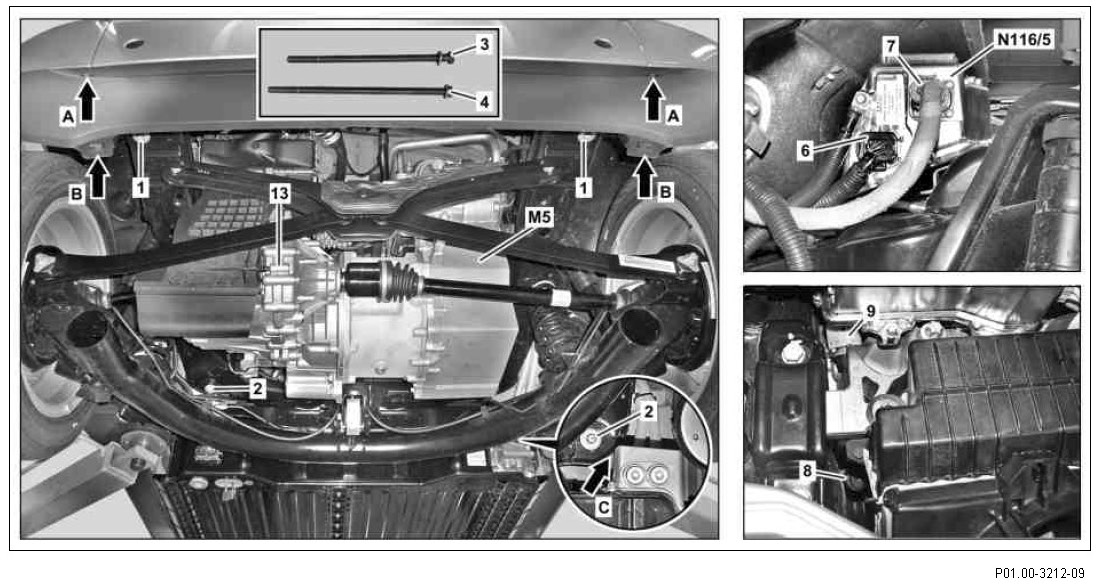

1 Bolt
2 Bolt
3 Release bolts
4 Release bolts
6 Electrical connector
7 High-voltage line
8 Ball head
9 Thrust bearing

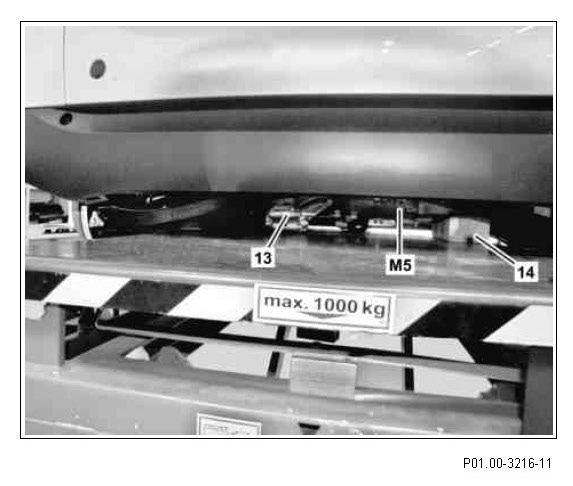

13 Transmission

M5 Electric drive motor
N116/5 PDU high-voltage distributor control unit

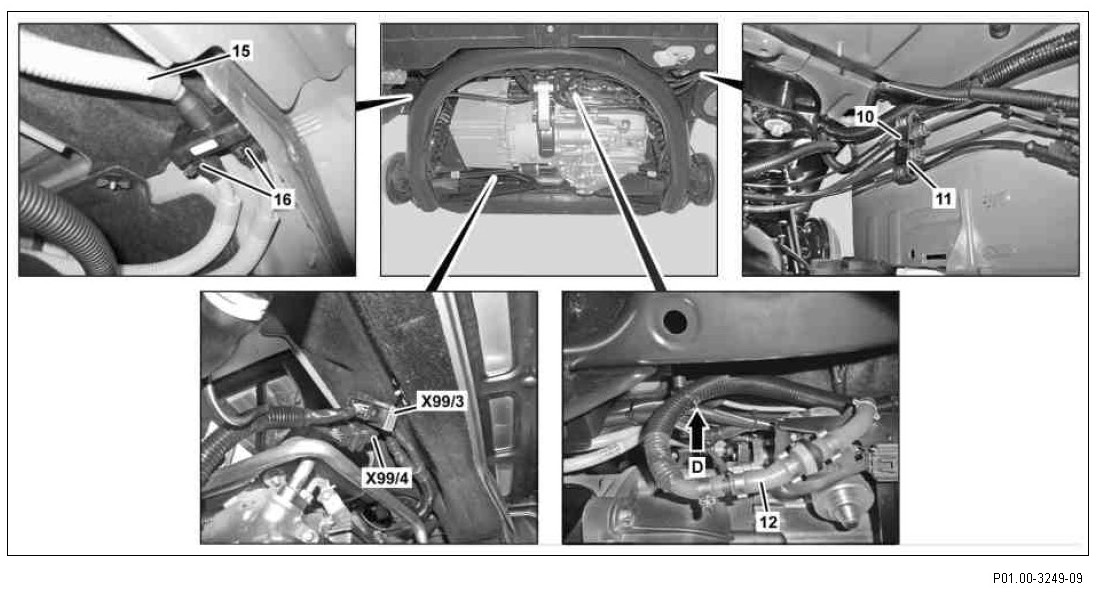

10 Plastic nuts
11 Folding clamp
12 Brake booster vacuum line
15 Charge current line
16 Cable tie

X99/3 Vehicle wiring harness connector
X99/4 Vehicle wiring harness connector







13 Transmission
14 Washer

M5 Electric drive motor
