Drive Motor Rotor: Service and Repair

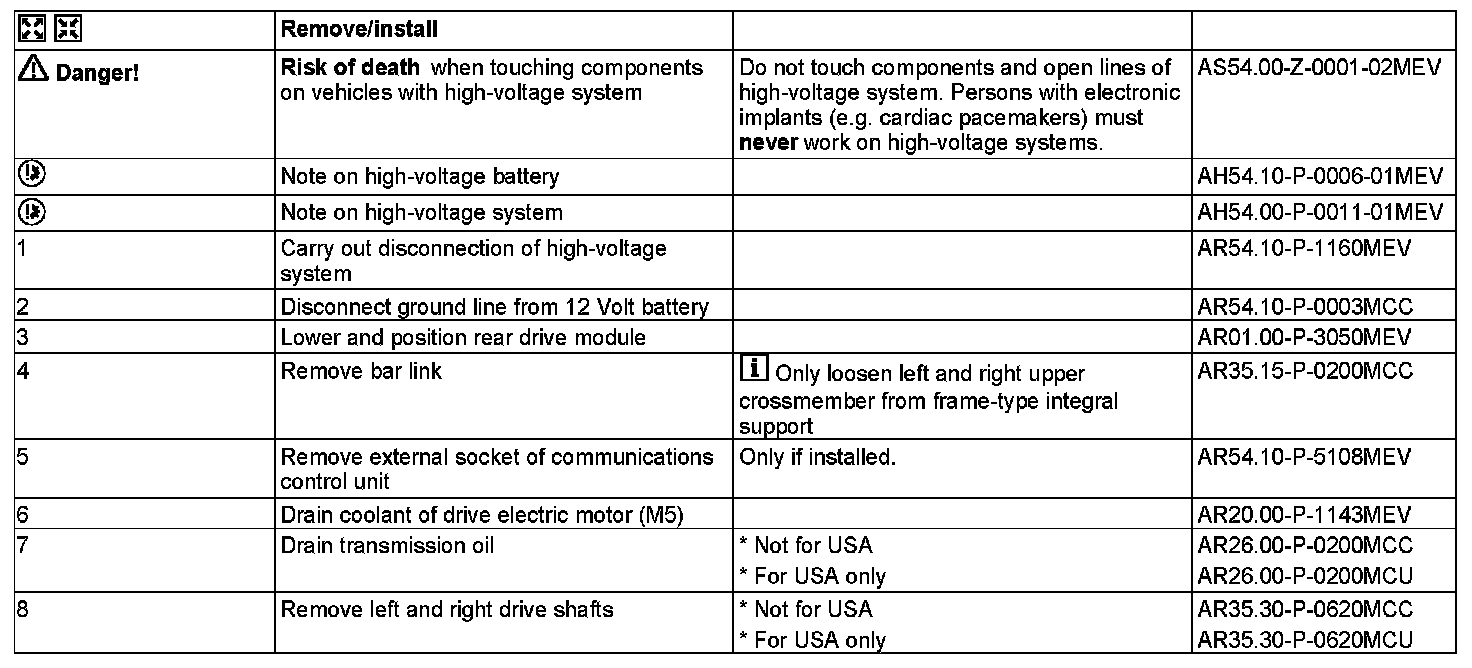

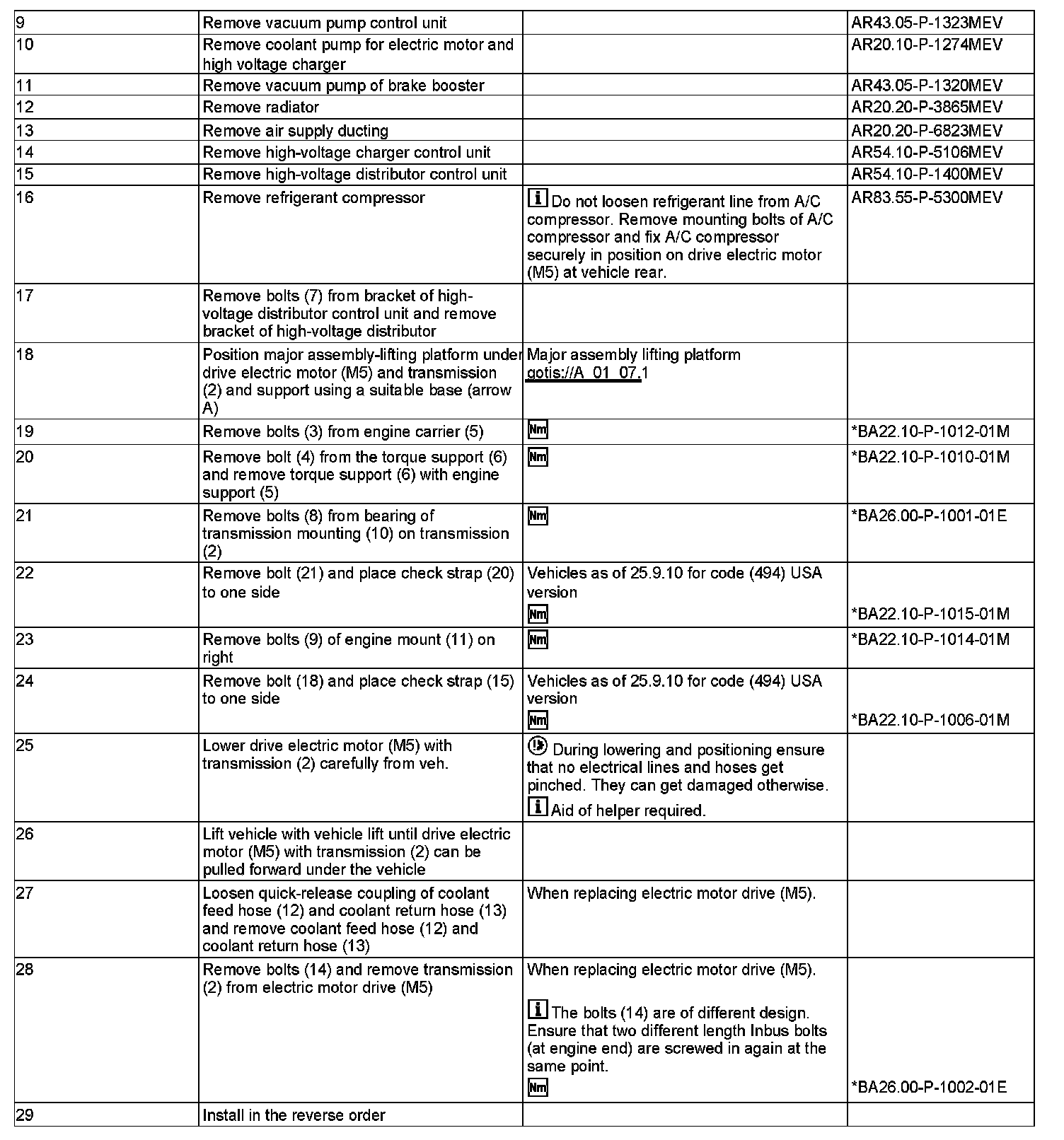

AR08.10-P-0010MEV Remove/install Electric Motor
- ENGINES 780.009 in MODEL 451.391 /491







2 Transmission

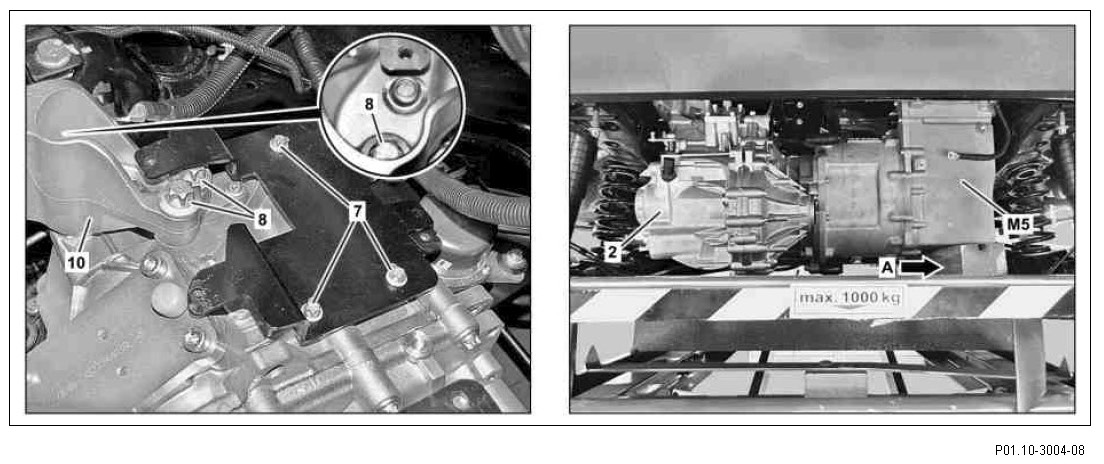

7 Bolts
8 Bolts
10 Mount for transmission mounting

M5 Electric drive motor

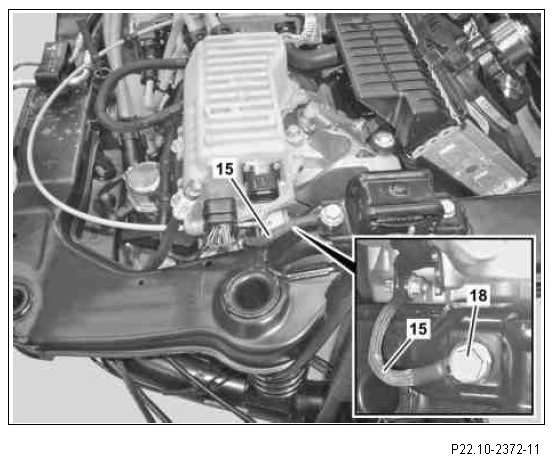

15 Check strap (as of 25.9.10 for code (494) USA version)
18 Screw

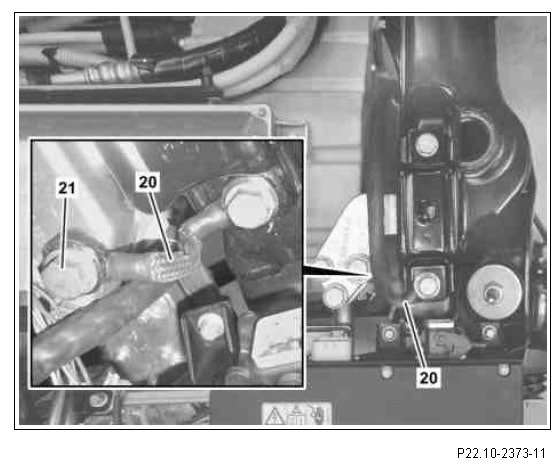

20 Check strap (as of 25.9.10 for code (494) USA version)
21 Screw

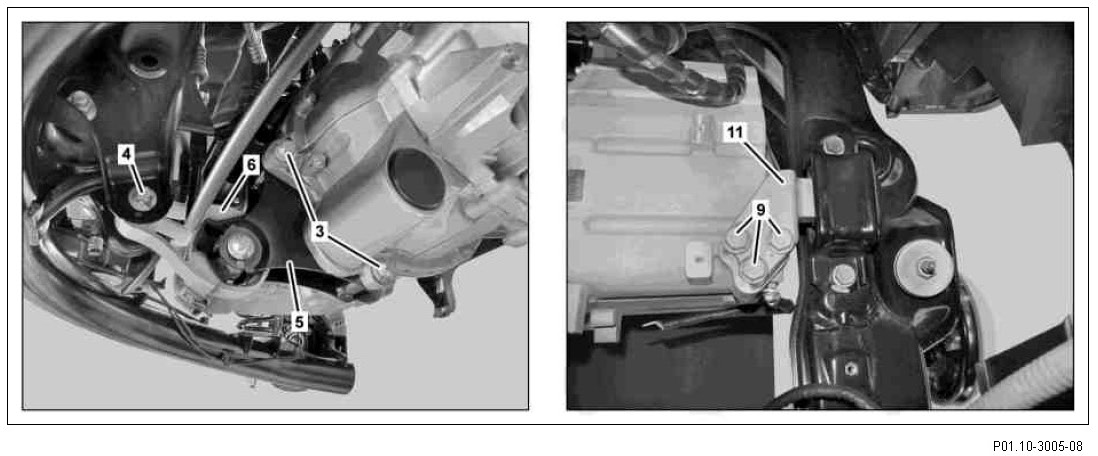

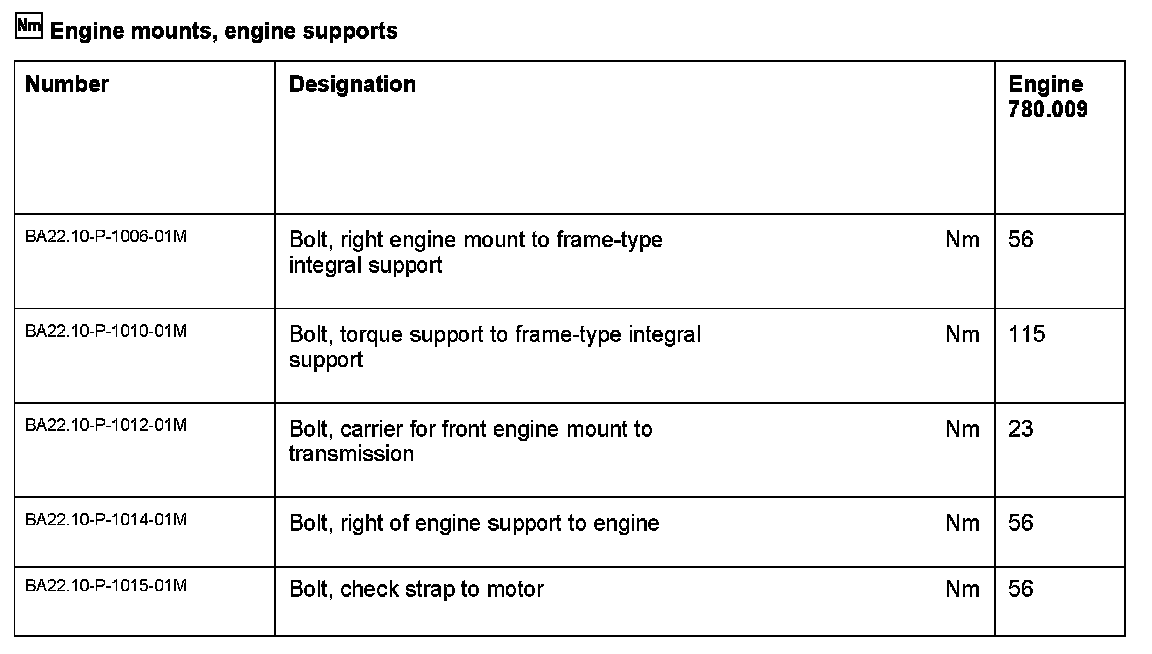

3 Bolts
4 Bolt
5 Engine support
6 Torque support
9 Bolts
11 Engine mount







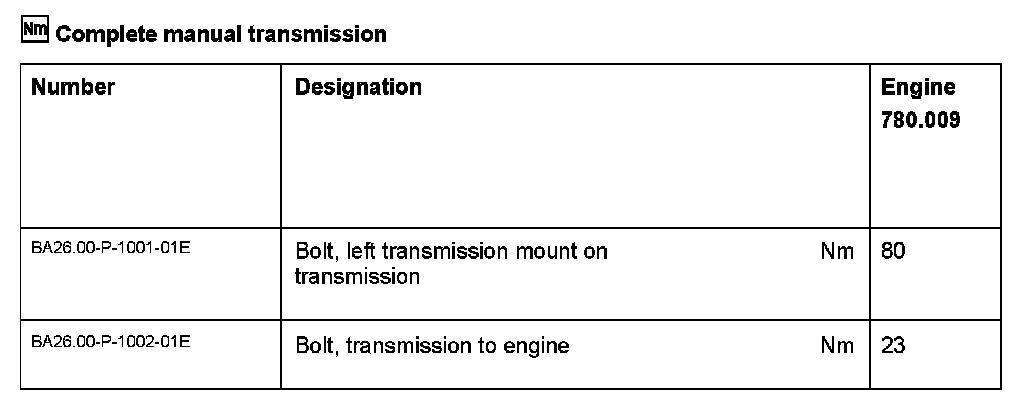

2 Transmission
12 Coolant feed hose
13 Coolant return flow hose
14 Bolts

M5 Electric drive motor
