Motor Mount Bracket: Service and Repair

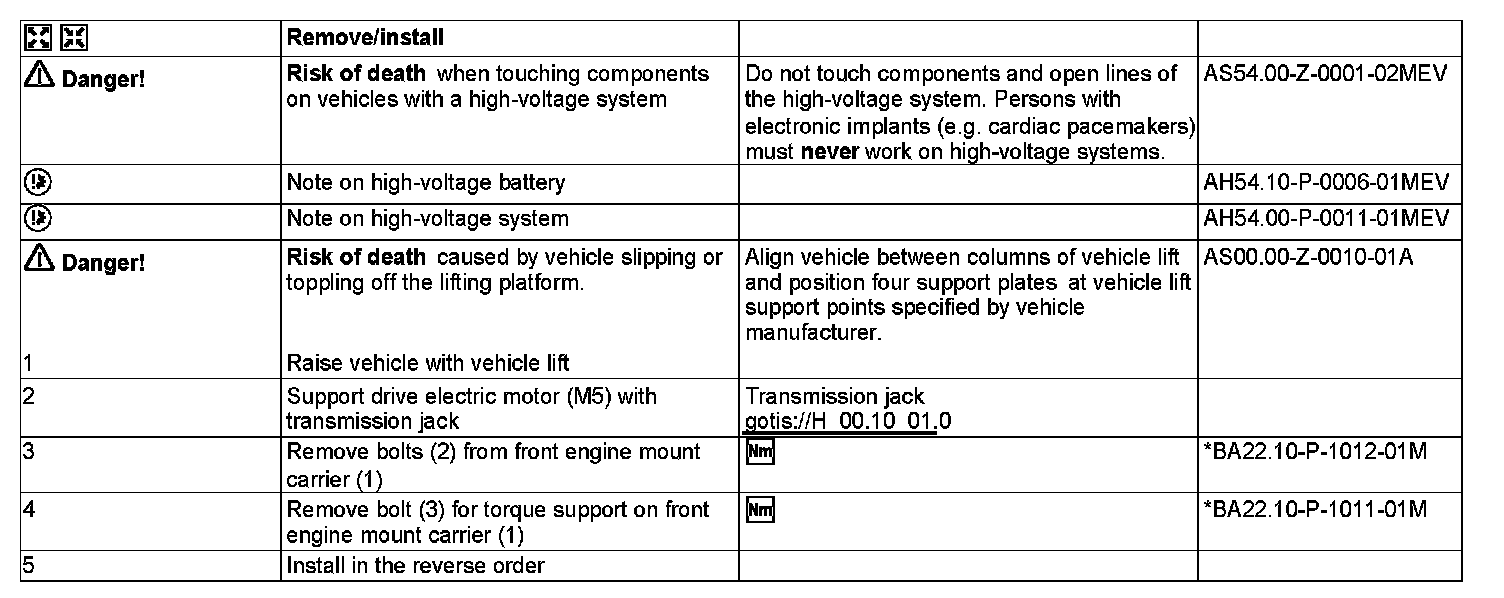

AR22.10-P-1001MEV Remove/install Carrier For Engine Mount
- ENGINE 780.009 in MODEL 451.391 /491

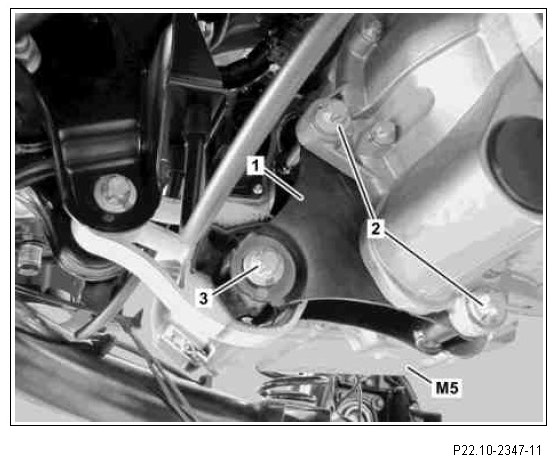

1 Carrier for front engine mount
2 Bolts
3 Bolt

M5 Electric drive motor
