Removal and Replacement

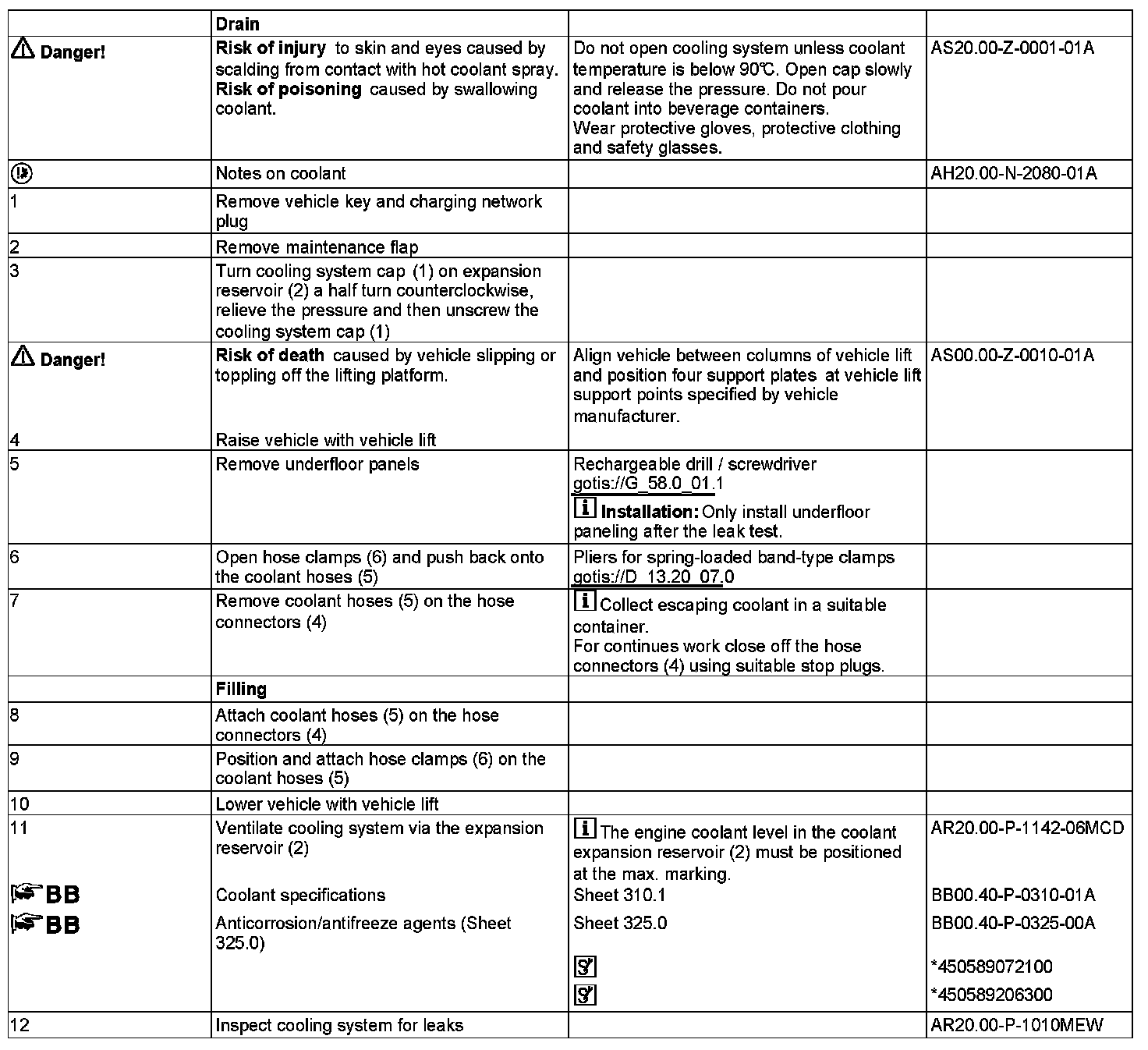

AR20.00-P-1142MEV Drain/fill In Coolant
- MODEL 451.391 /491 with ENGINE 780.009

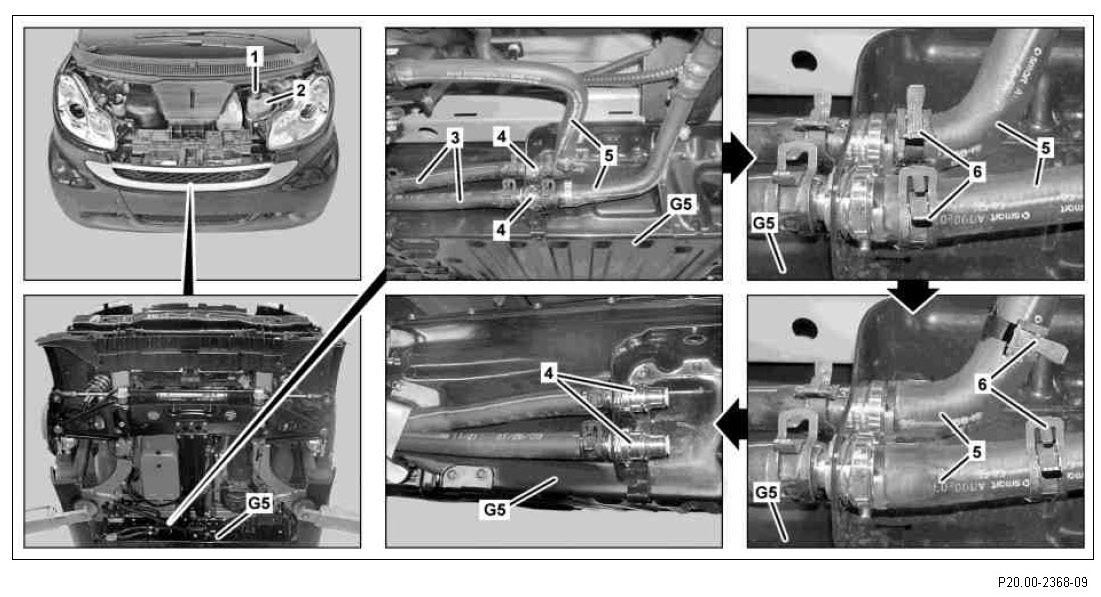

High-voltage battery coolant circuit







1 Cap
2 Expansion reservoir
3 Coolant hoses
4 Hose connector
5 Coolant hoses
6 Hose clamps

G5 High-voltage battery
