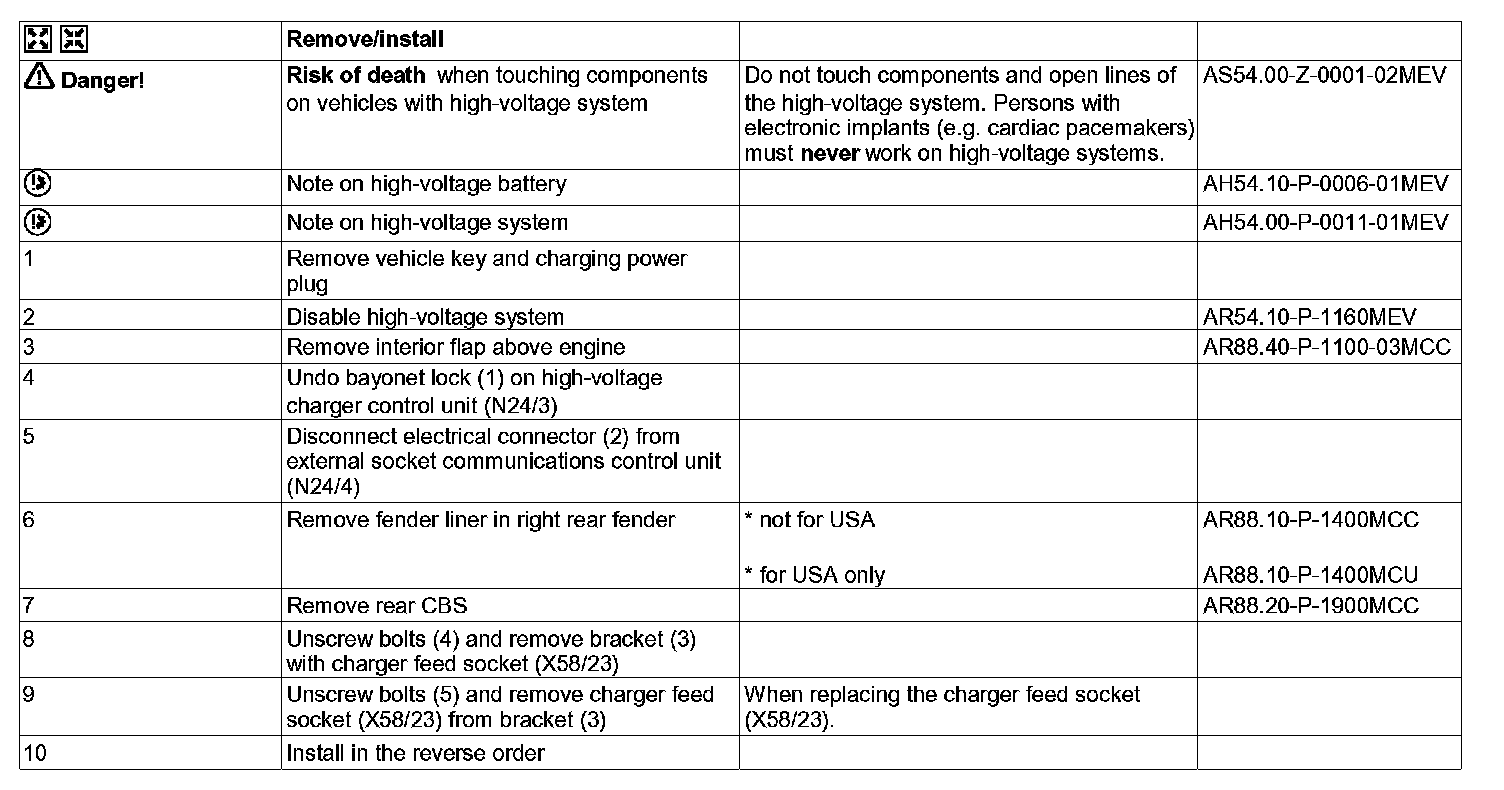

AR54.10-P-5109MEV Remove/Install Charger Feed Socket

AR54.10-P-5109MEV Remove/install Charger Feed Socket
- MODEL 451.391 /491 with ENGINE 780.009

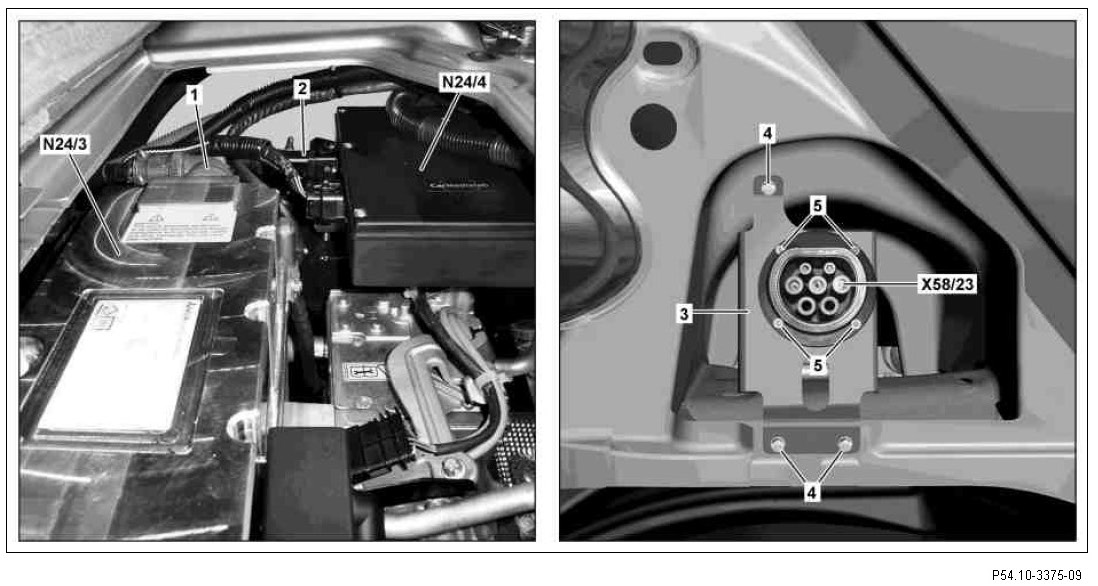

1 Bayonet fitting
2 Electrical connector
3 Bracket
4 Bolts
5 Bolts

N24/3 High-voltage charger control unit
N24/4 External socket communications control unit
X58/23 Charger feed-in socket
