Procedures

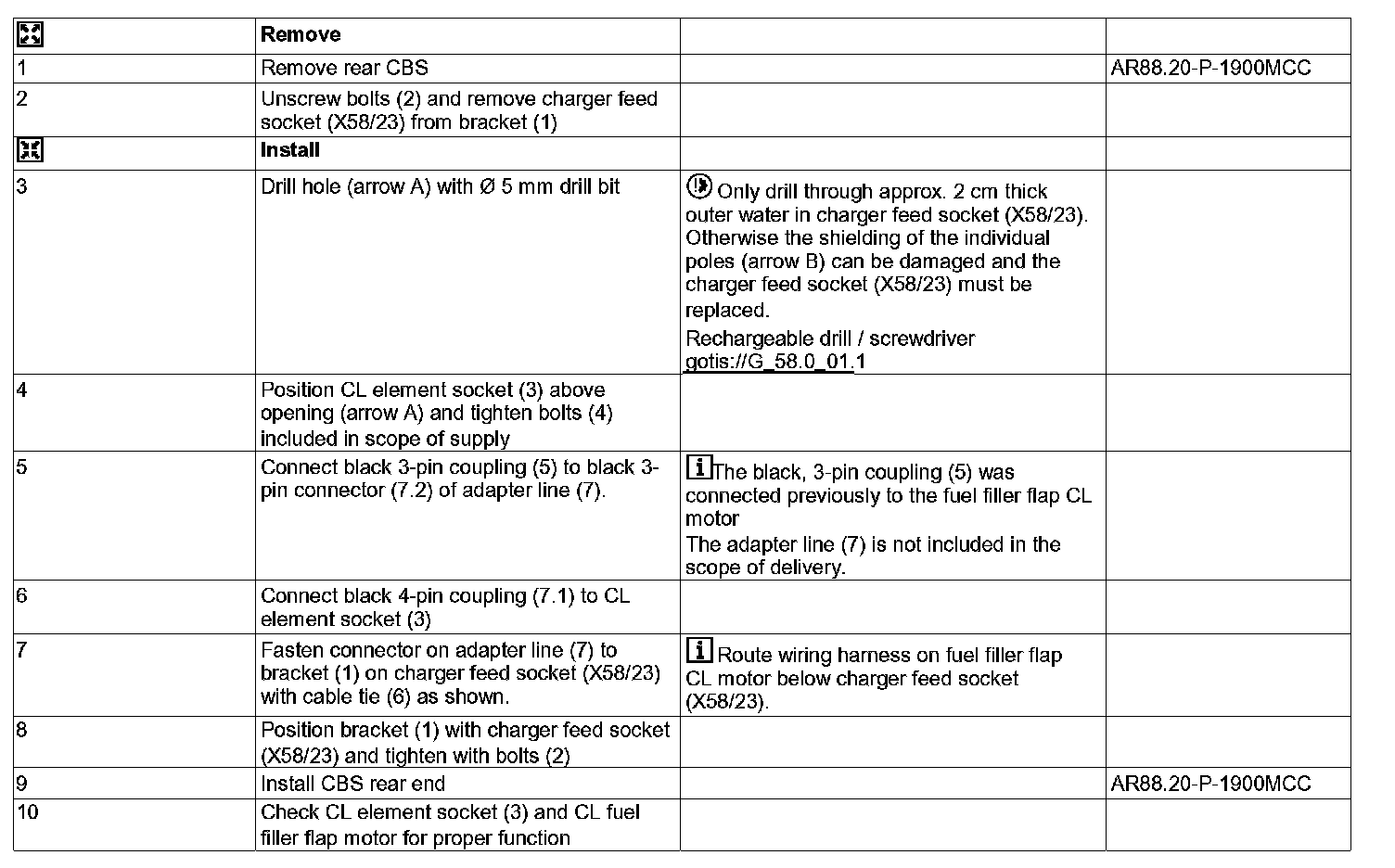

AZ80.20-P-0100MCC Retrofit CL Element On Socket For Charger Feed
- MODEL 451.391/ 491







1 Bracket
2 Bolts
3 Central locking (CL) element socket
4 Bolts
5 Black 3-pin coupling
6 Cable tie
7 Adapter line
7.1 Black 4-pin coupling
7.2 Black 3-pin plug
7.3 Black 3-pin coupling

X58/23 Charger feed-in socket
