Procedures

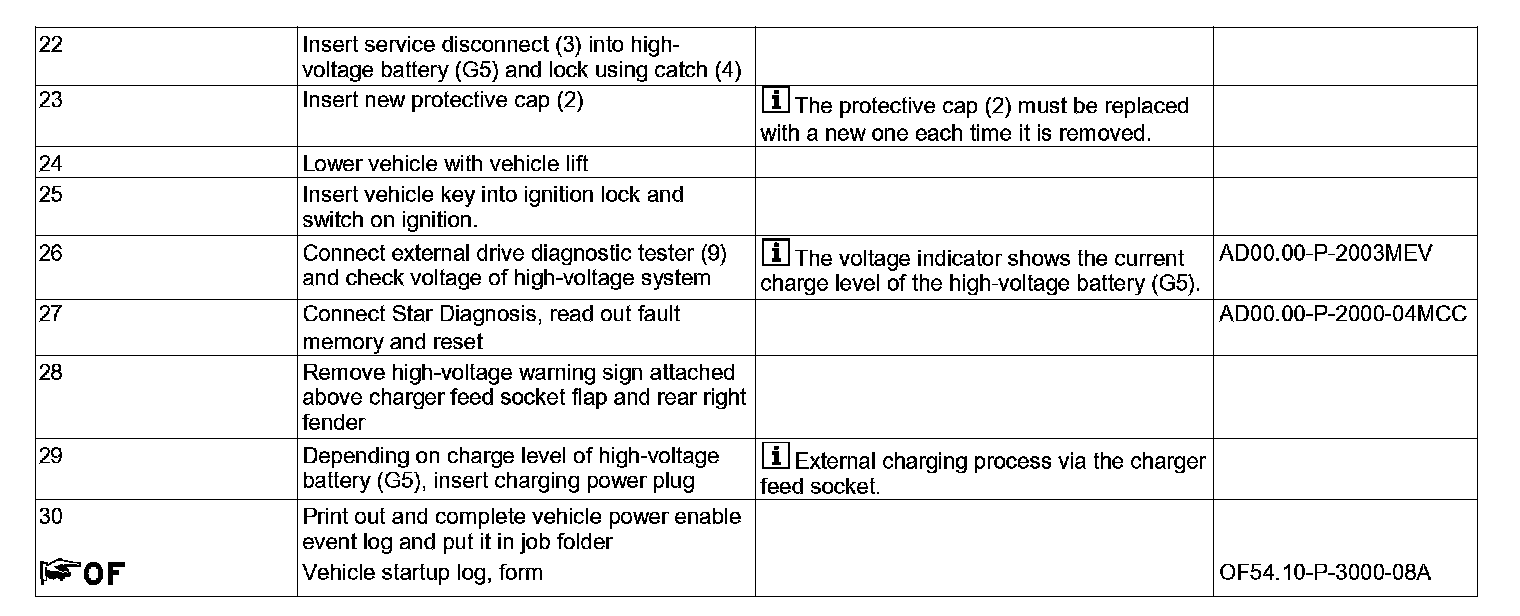

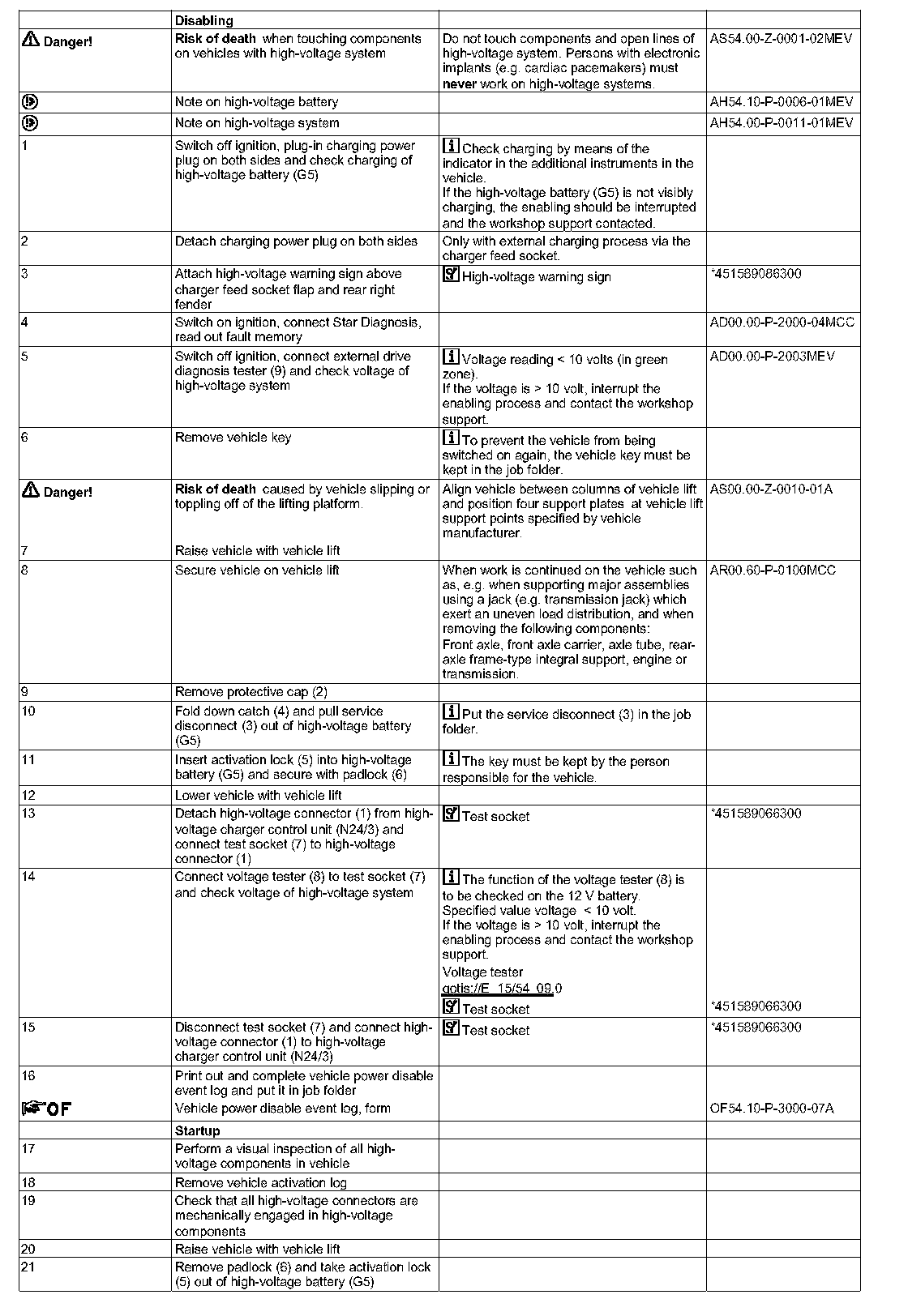

AR54.10-P-1160MEV Disable/enable High-voltage System
- MODEL 451.391 /491 with ENGINE 780.009

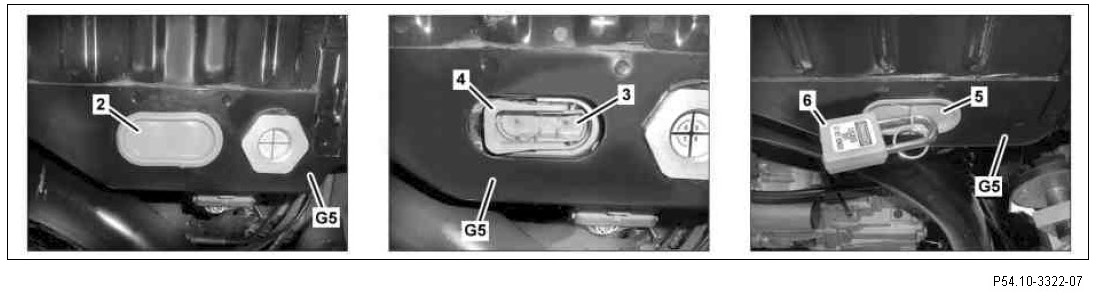

2 Protective cap
3 Service Disconnect
4 Striker
5 Activation lock
6 Padlock

G5 High-voltage battery







9 External drive diagnostic tester

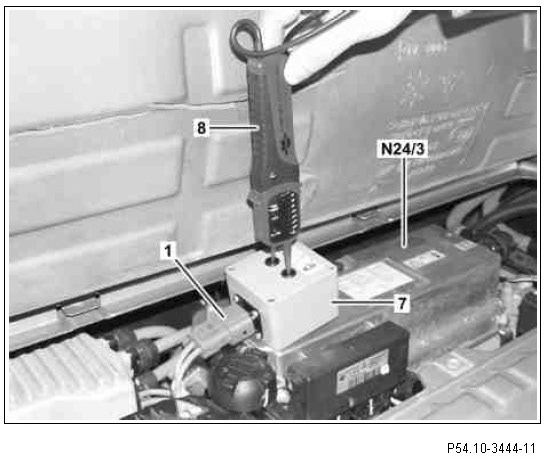

1 High-voltage connector
7 Test socket
8 Voltage tester

N24/3 High-voltage charger control unit
