Wiper and Washer Systems

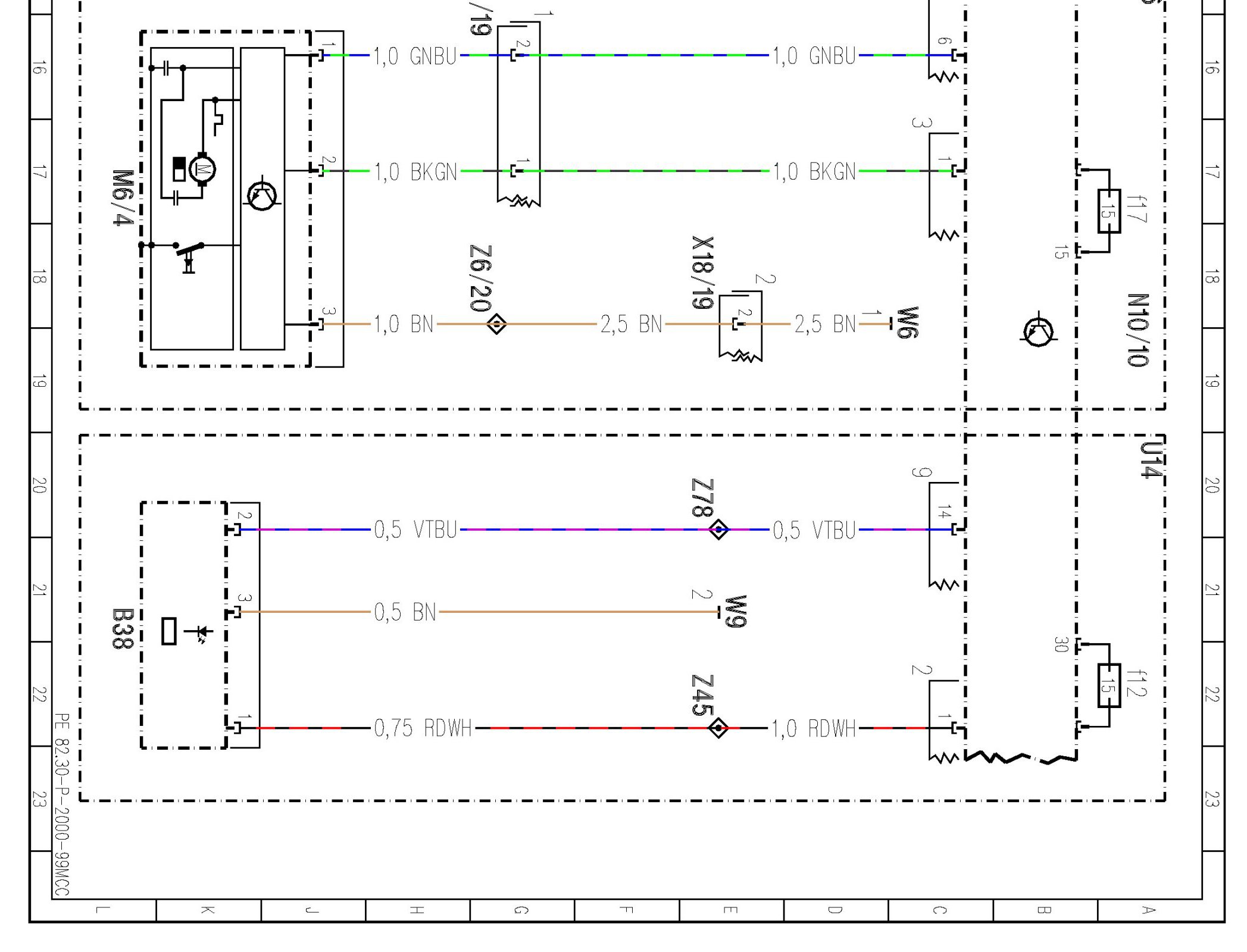

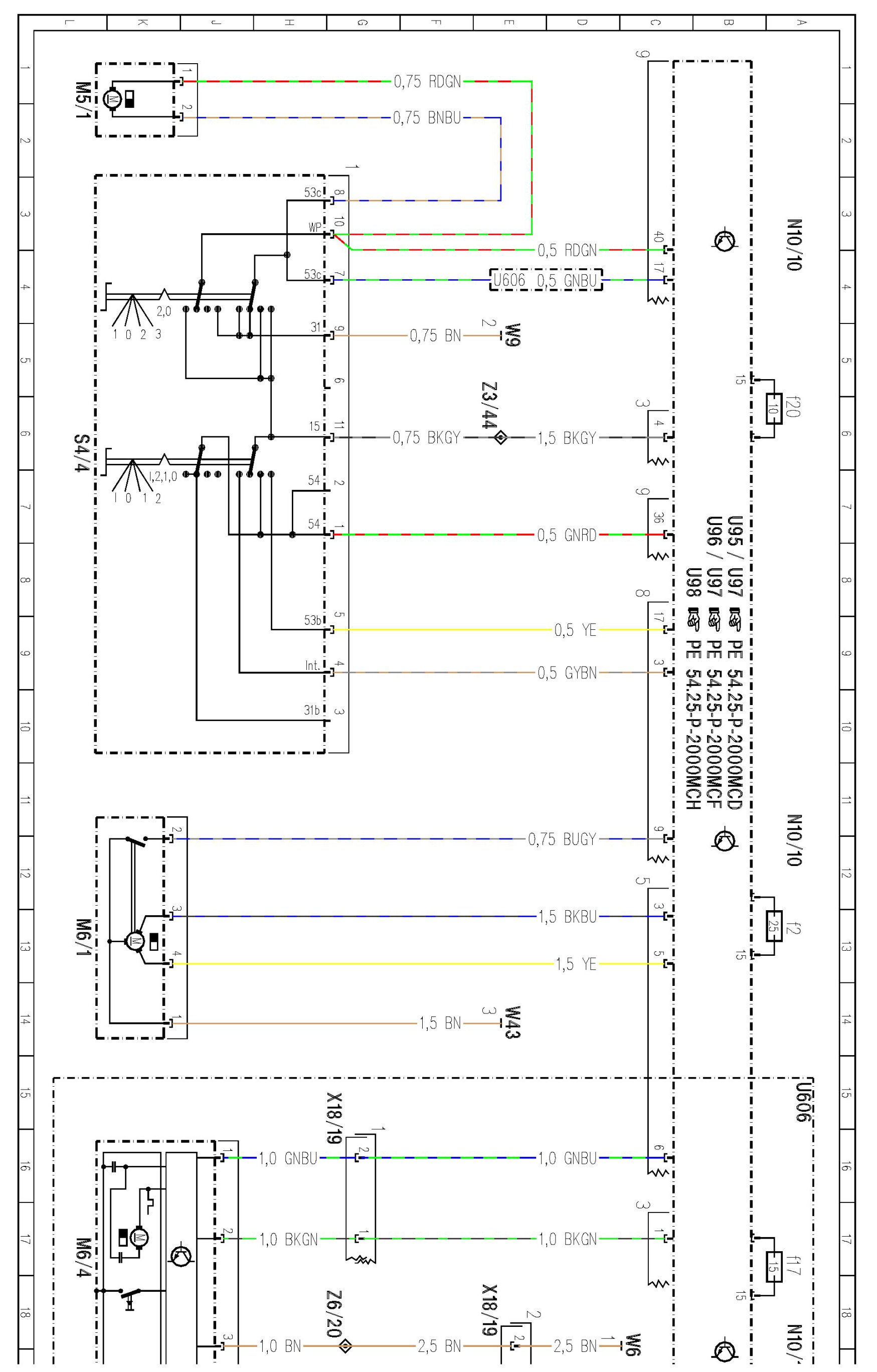

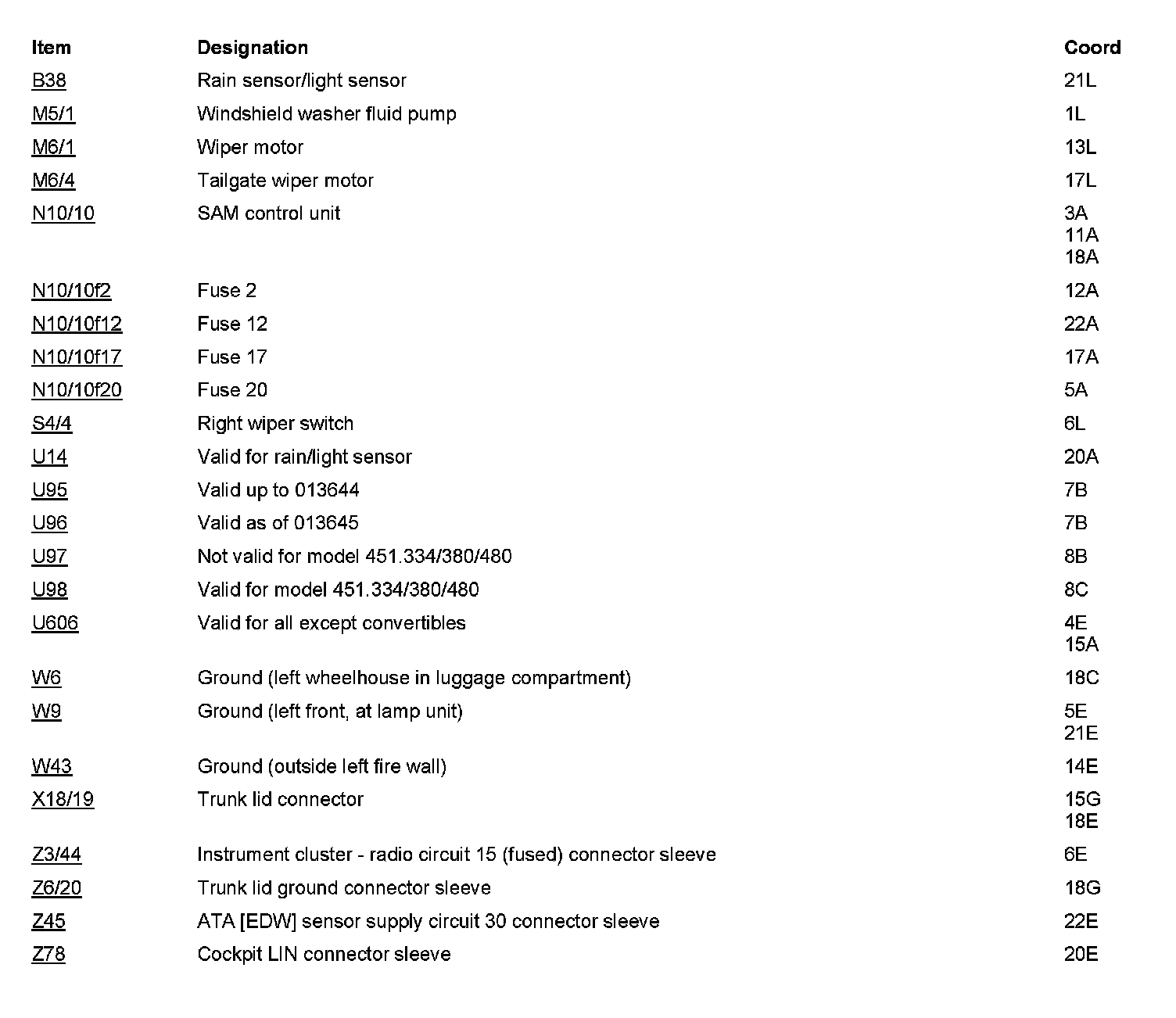

PE82.30-P-2000MCC Windscreen Wiper

451 82 Electrical Systems - Body
MODEL 451
