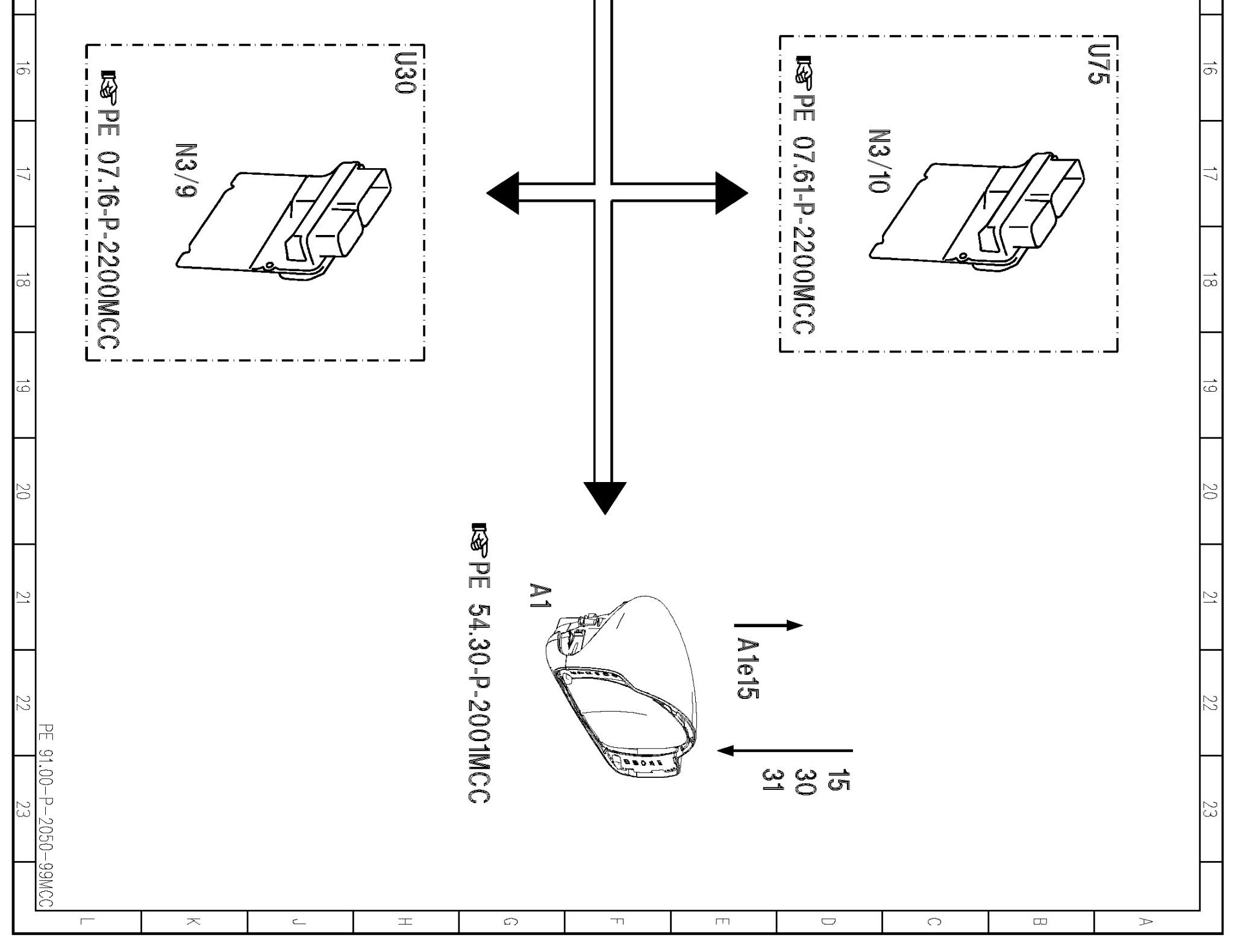

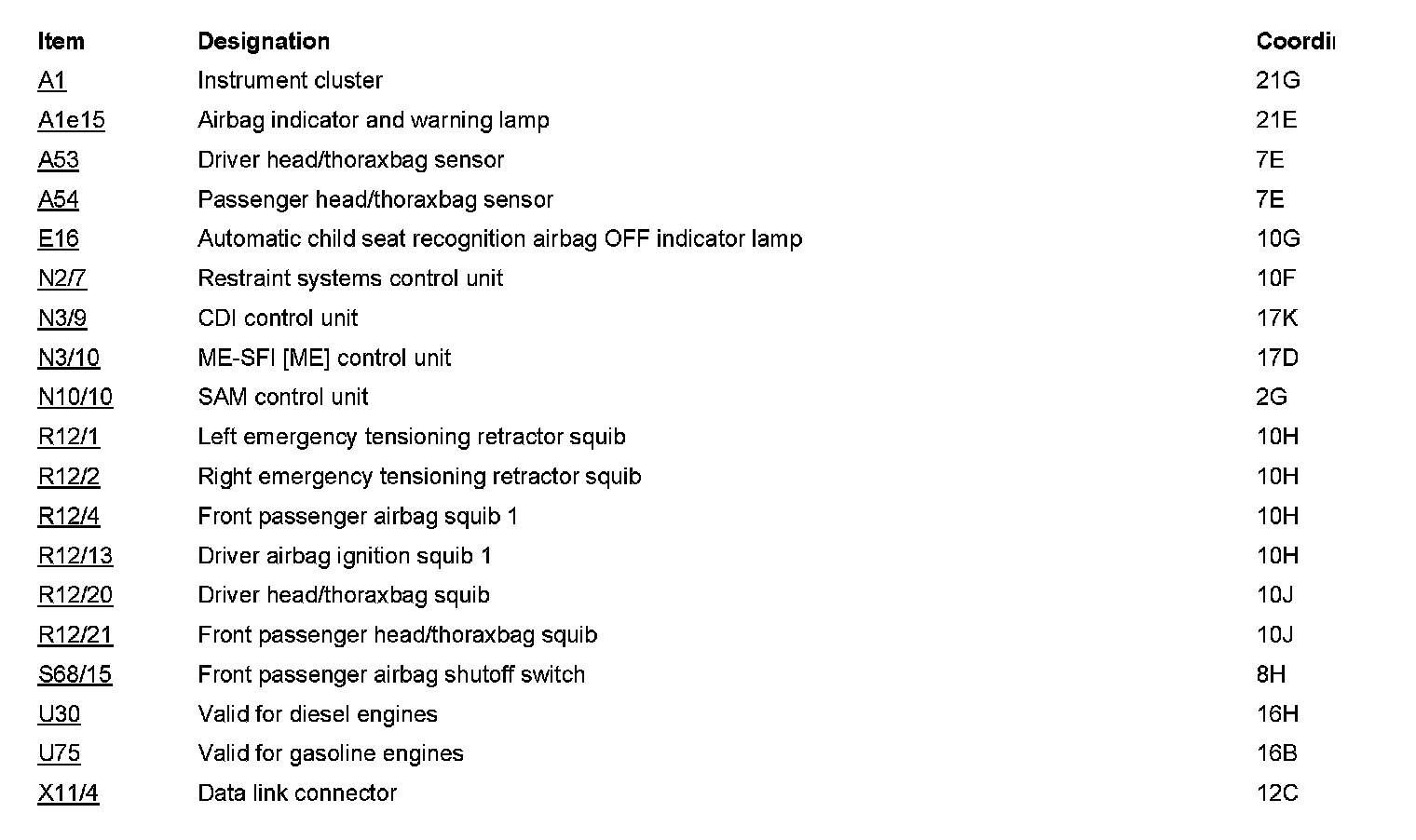

PE91.00-P-2050MCC Electrical Function Schematic For Airbag (AB), Emergency Tensioning Retractor (ETR)



PE91.00-P-2050MCC Electrical Function Schematic For Airbag (AB), Emergency Tensioning Retractor (ETR)

451 91 Seats, SRS
MODEL 451 to 013644
