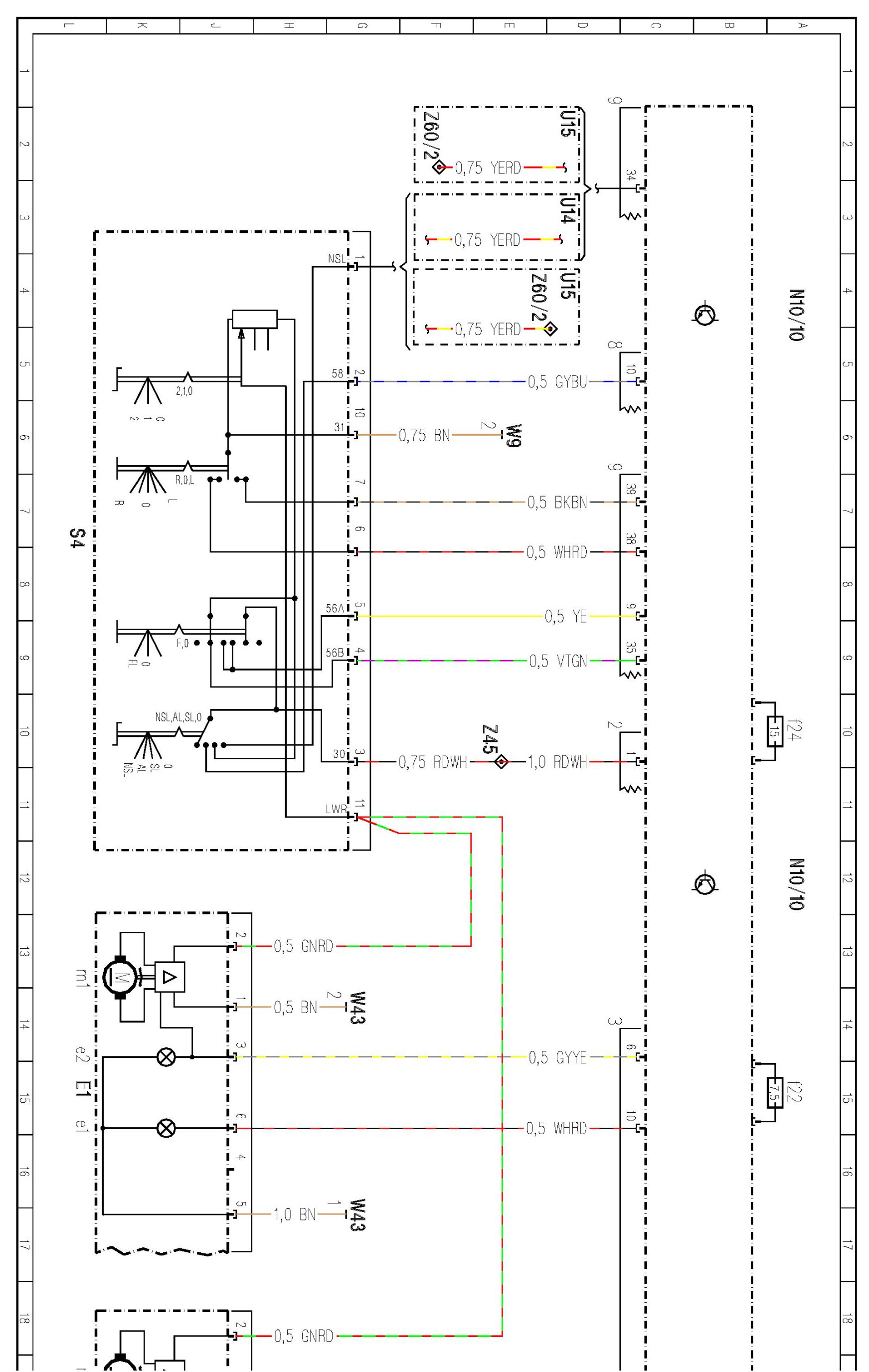

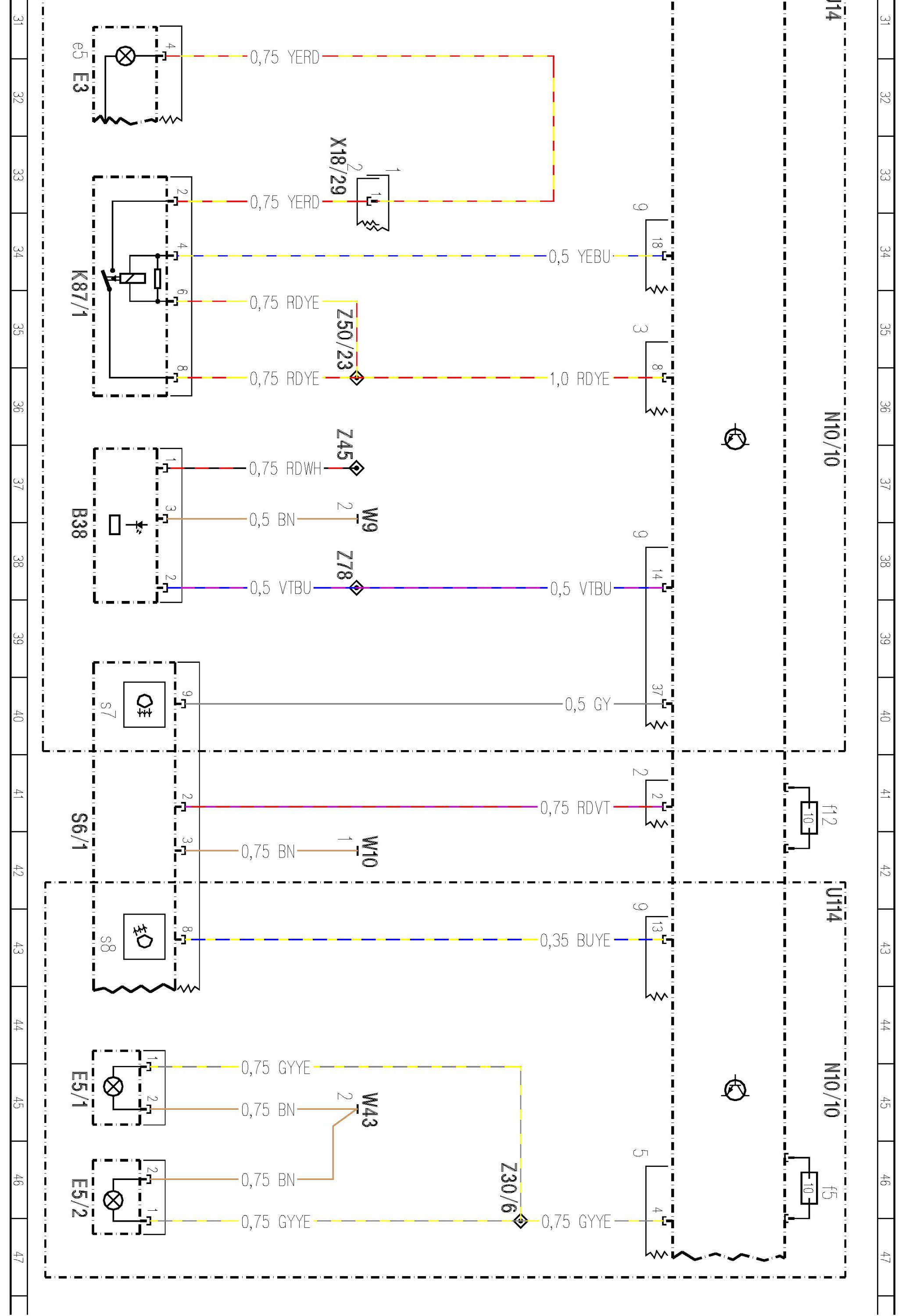

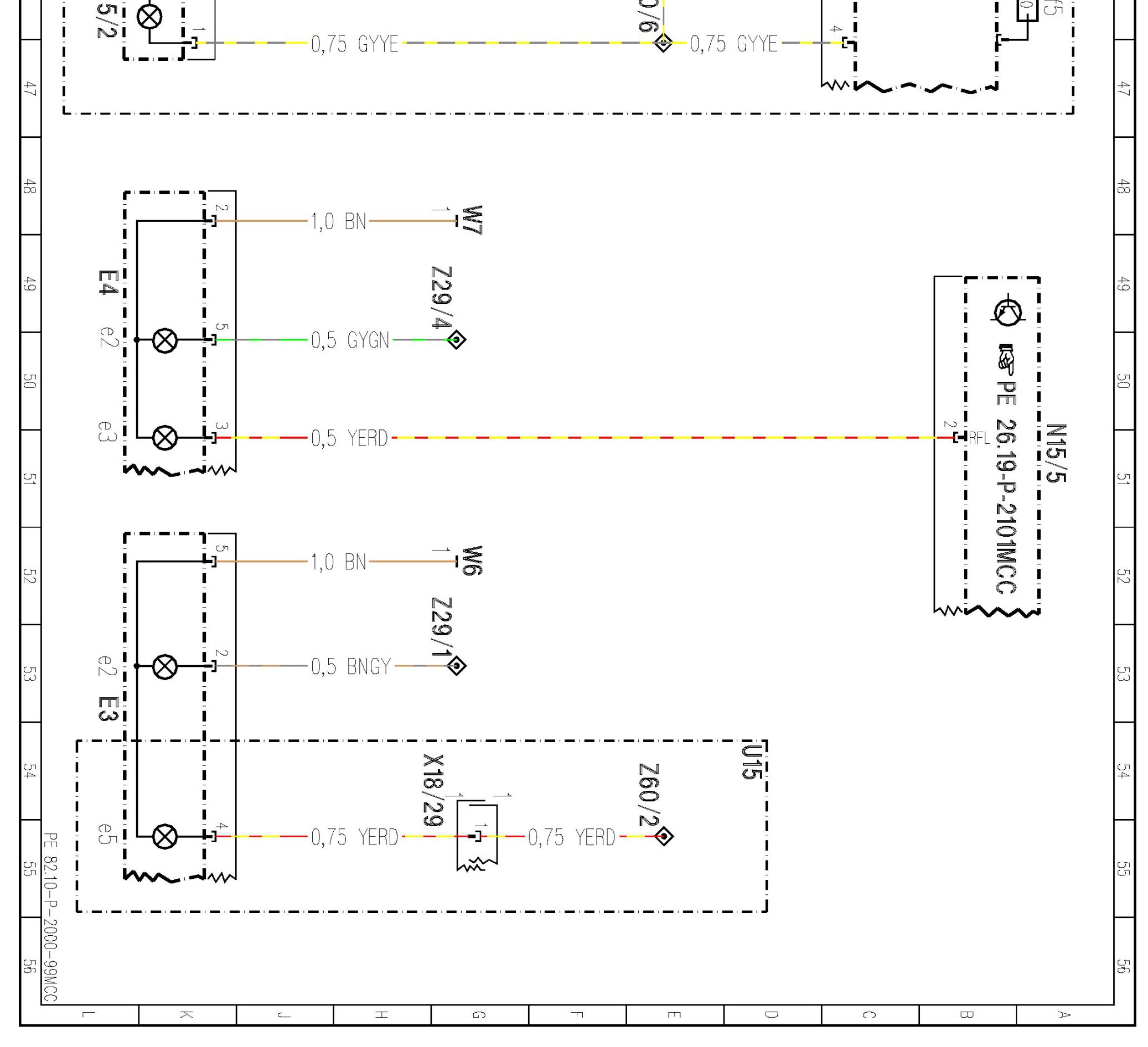

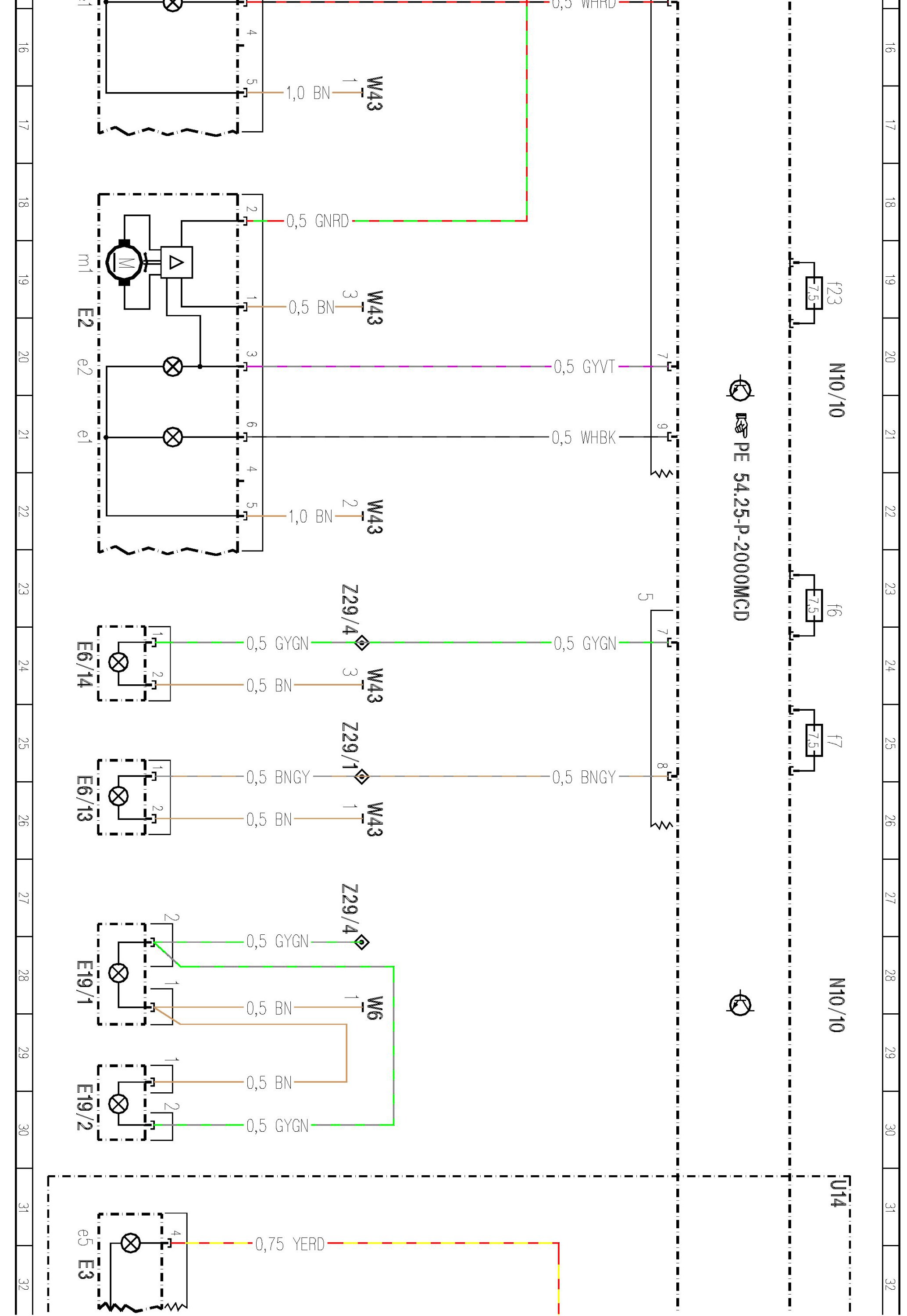

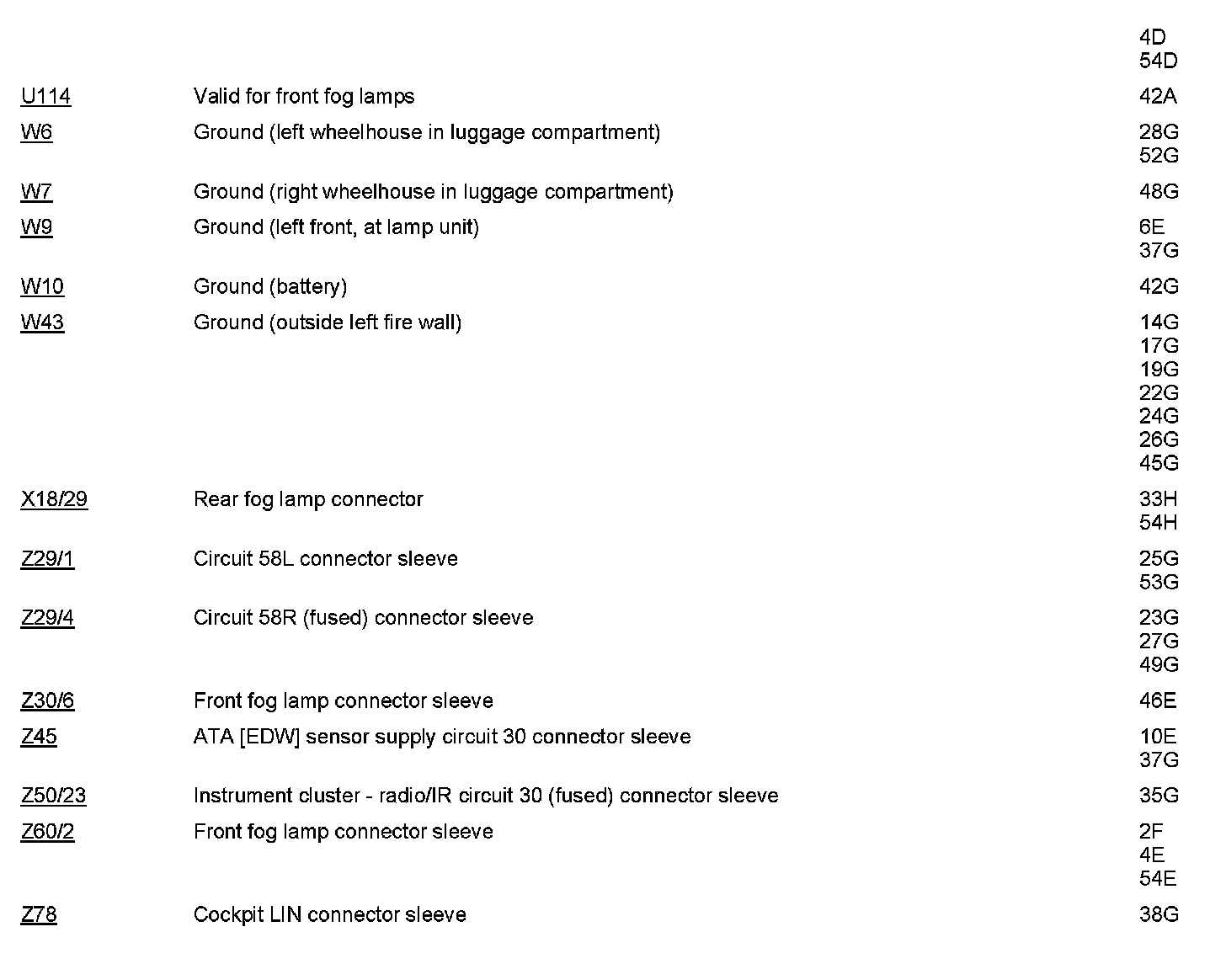

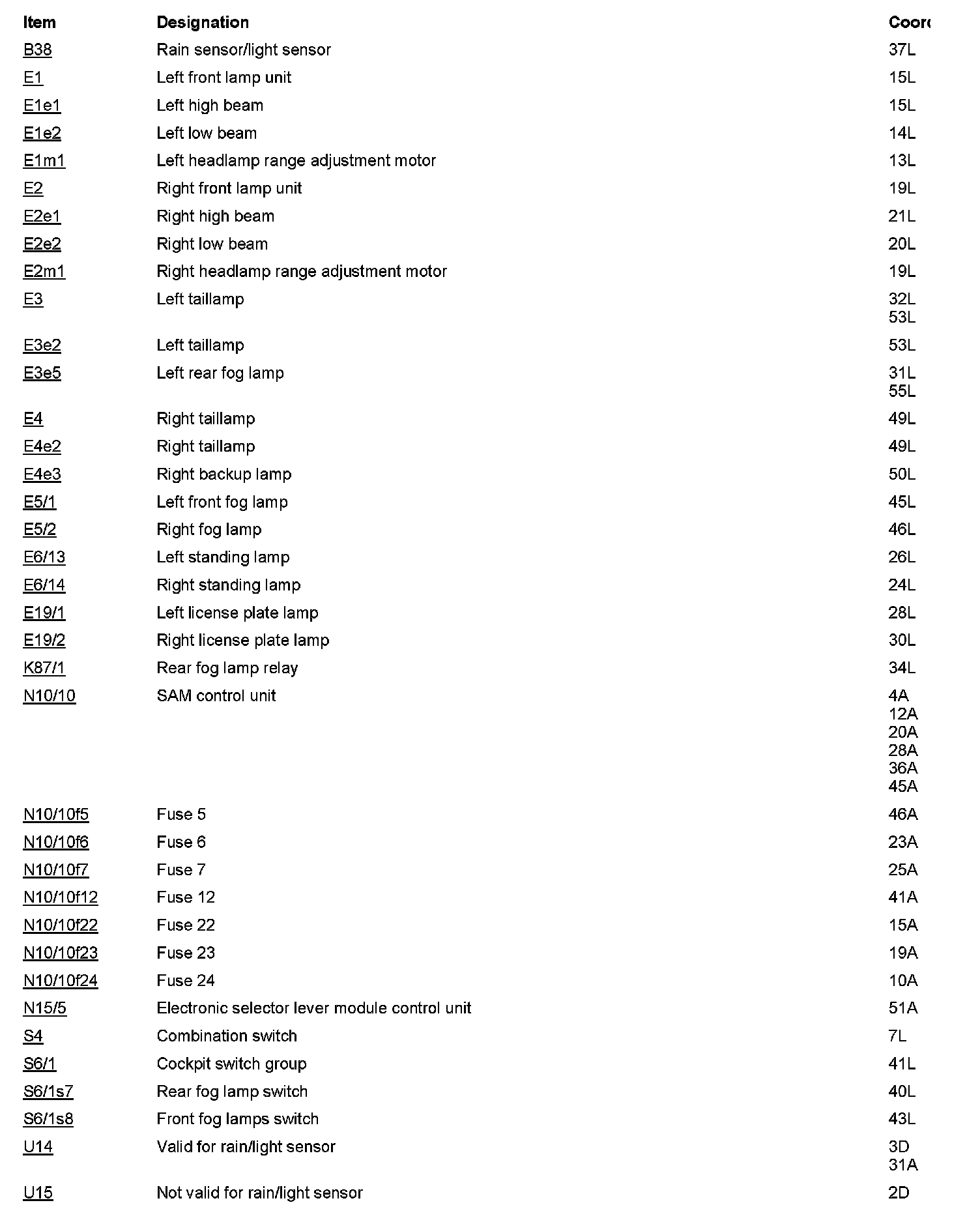

PE82.10-P-2000MCC Exterior Lights Wiring Diagram



PE82.10-P-2000MCC Exterior Lights Wiring Diagram

451 82 Electrical Systems - Body
MODEL 451 to 013644
