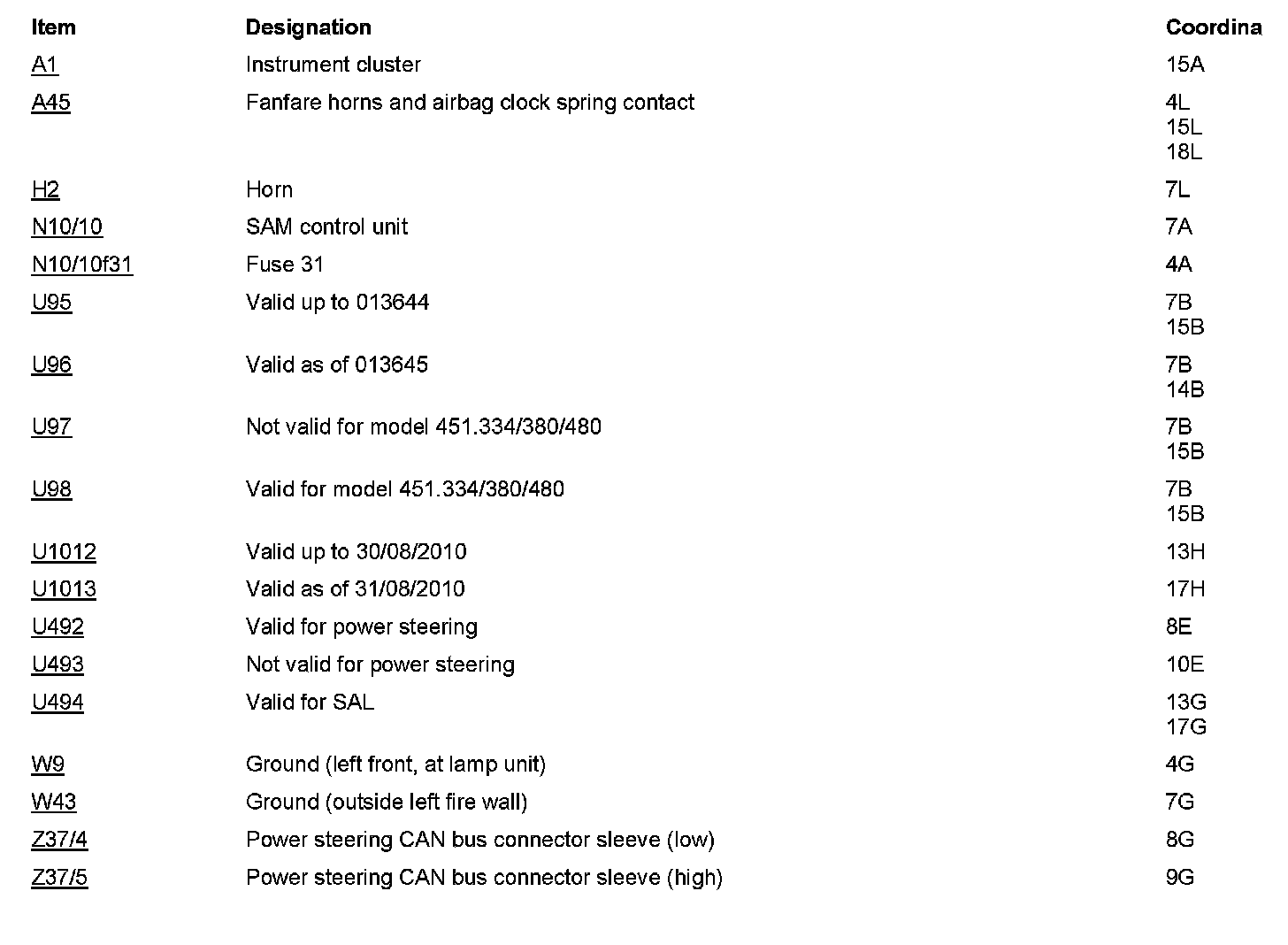

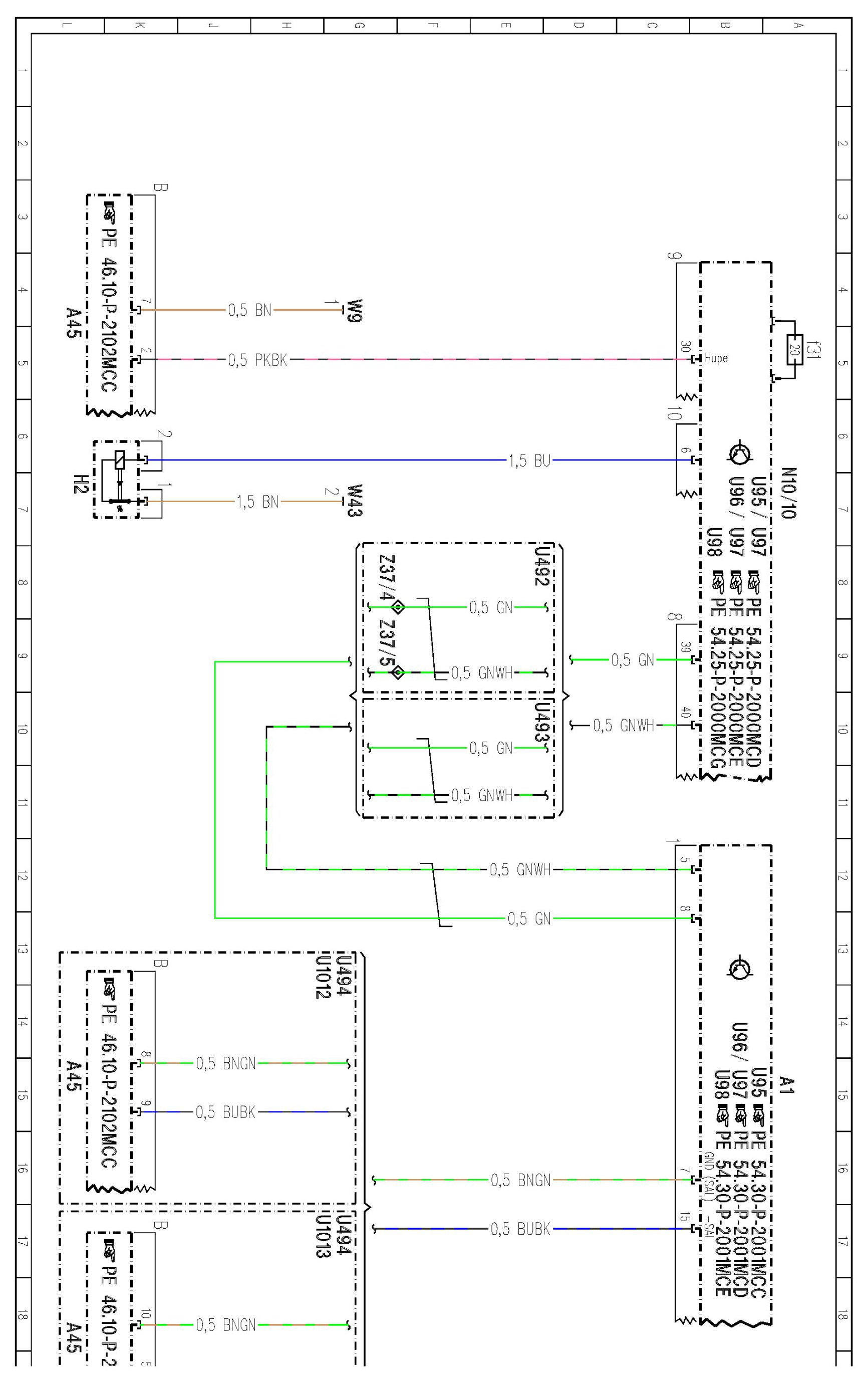

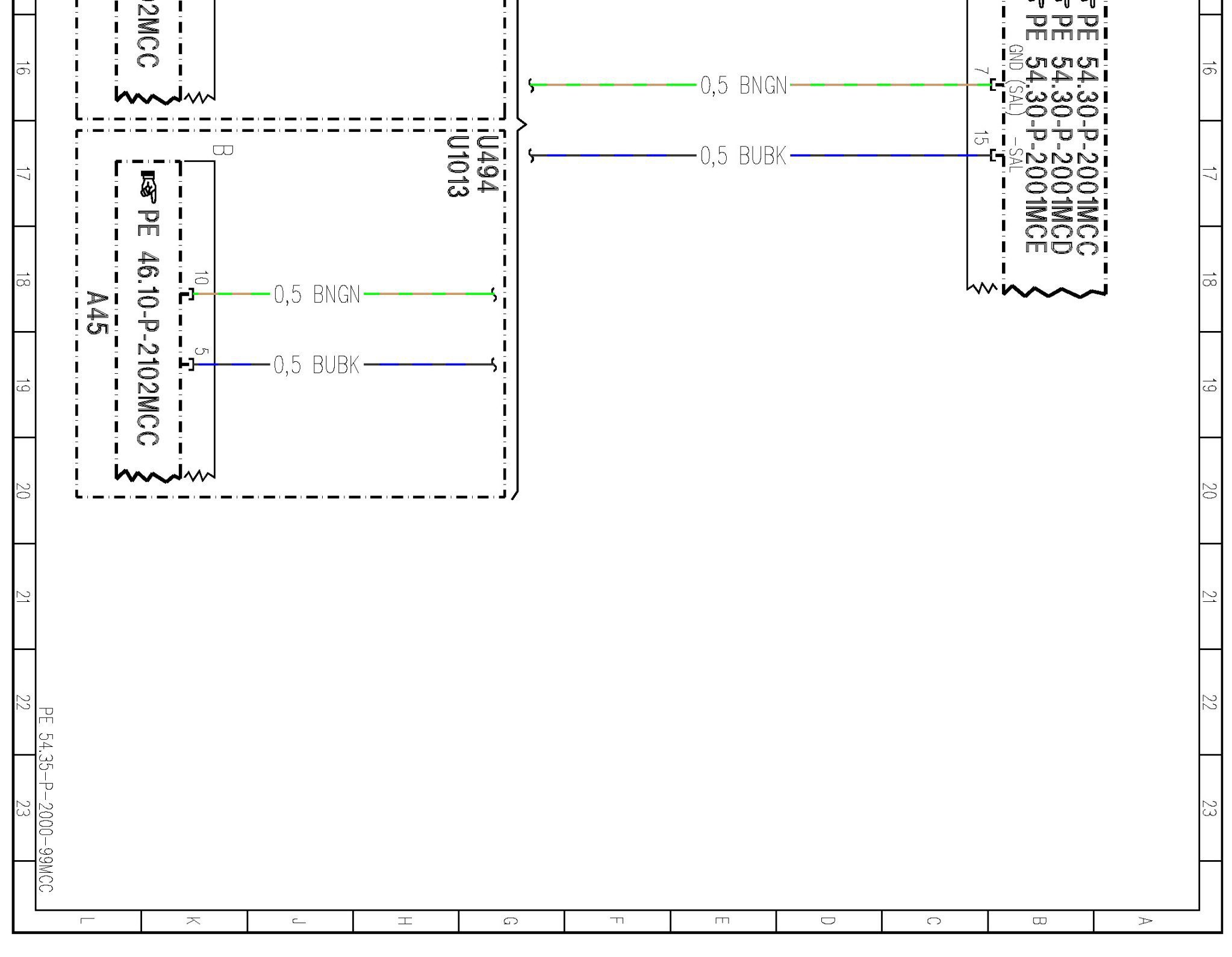

PE54.35-P-2000MCC Signaling System
PE54.35-P-2000MCC Signaling System
PE54.35-P-2000MCC Signaling System
451 54 Electrical Systems - Equipment and Instruments
MODEL 451
