Home >> Smart >> 2012 >> ForTwo Elec. Coupe (451.391) ELE-Electric Engine (780.009) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Information Bus

Information Bus

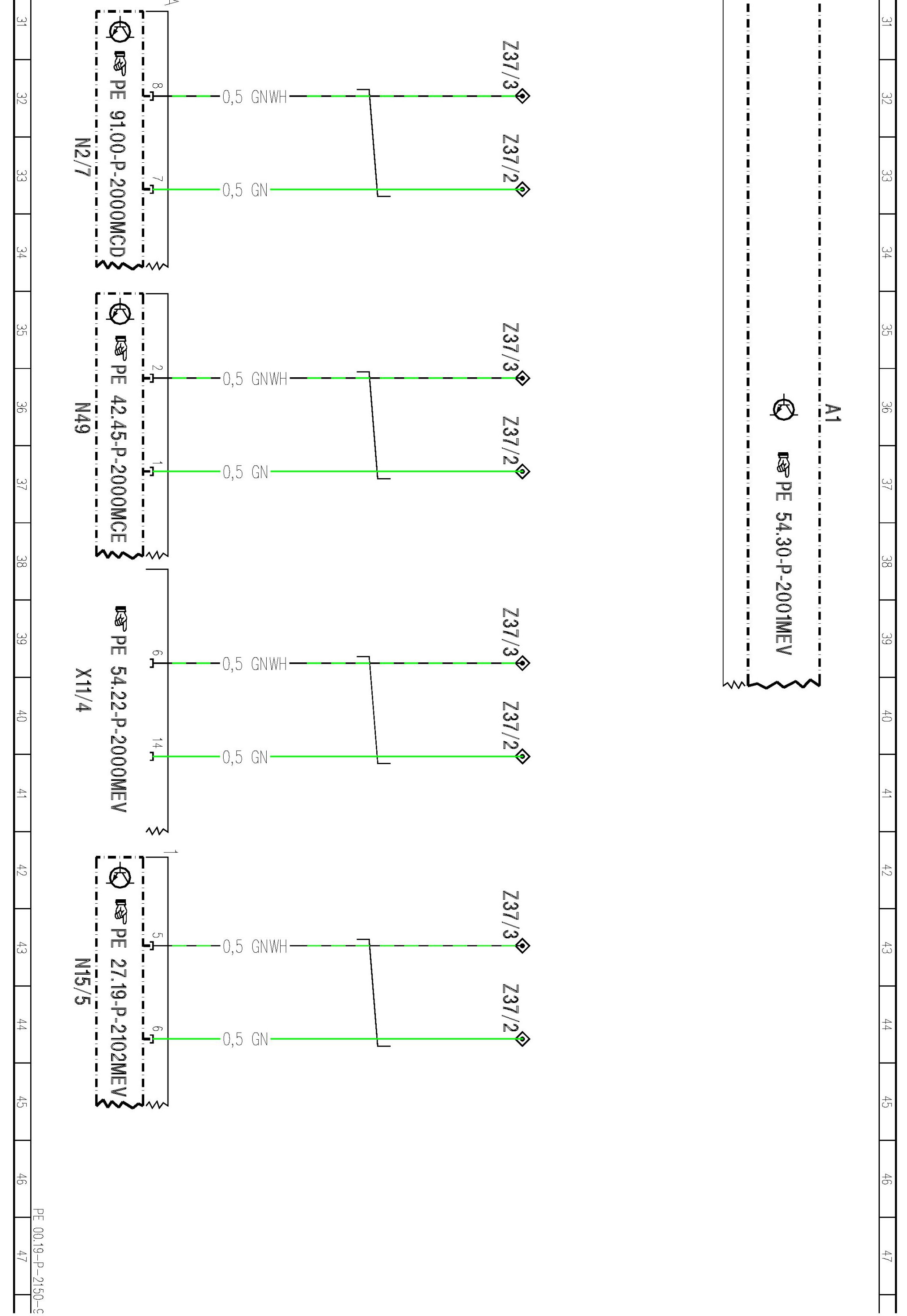

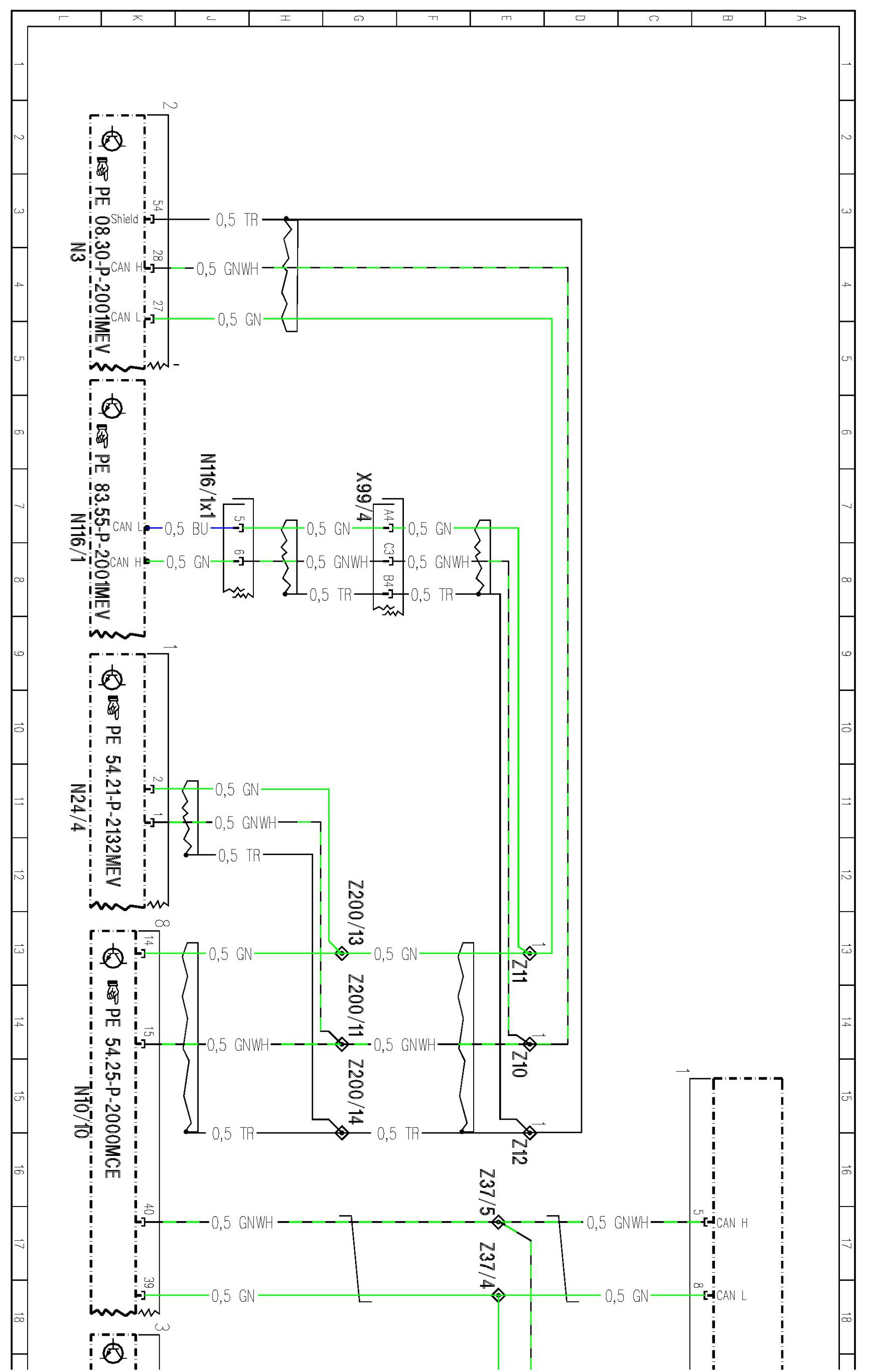

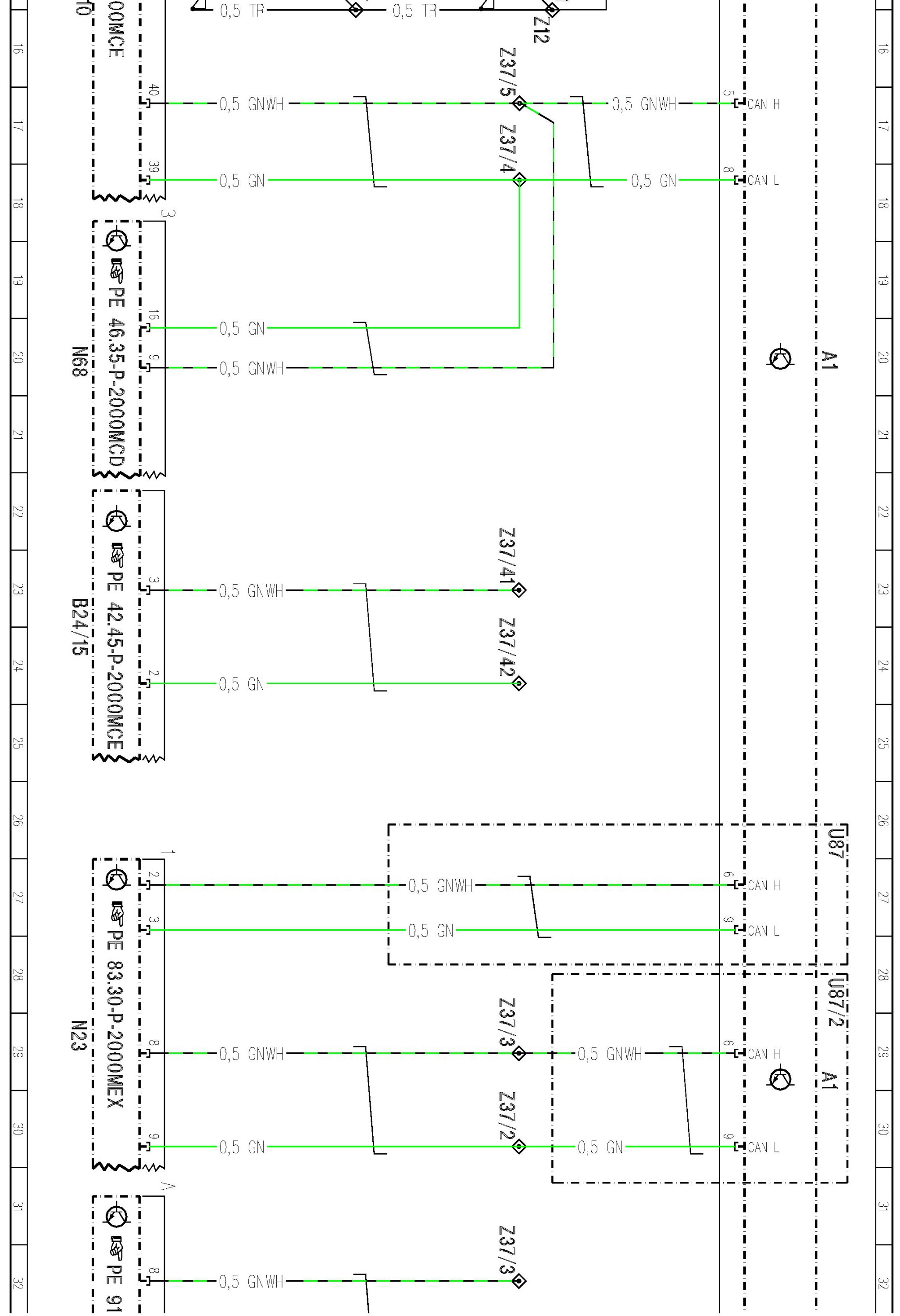

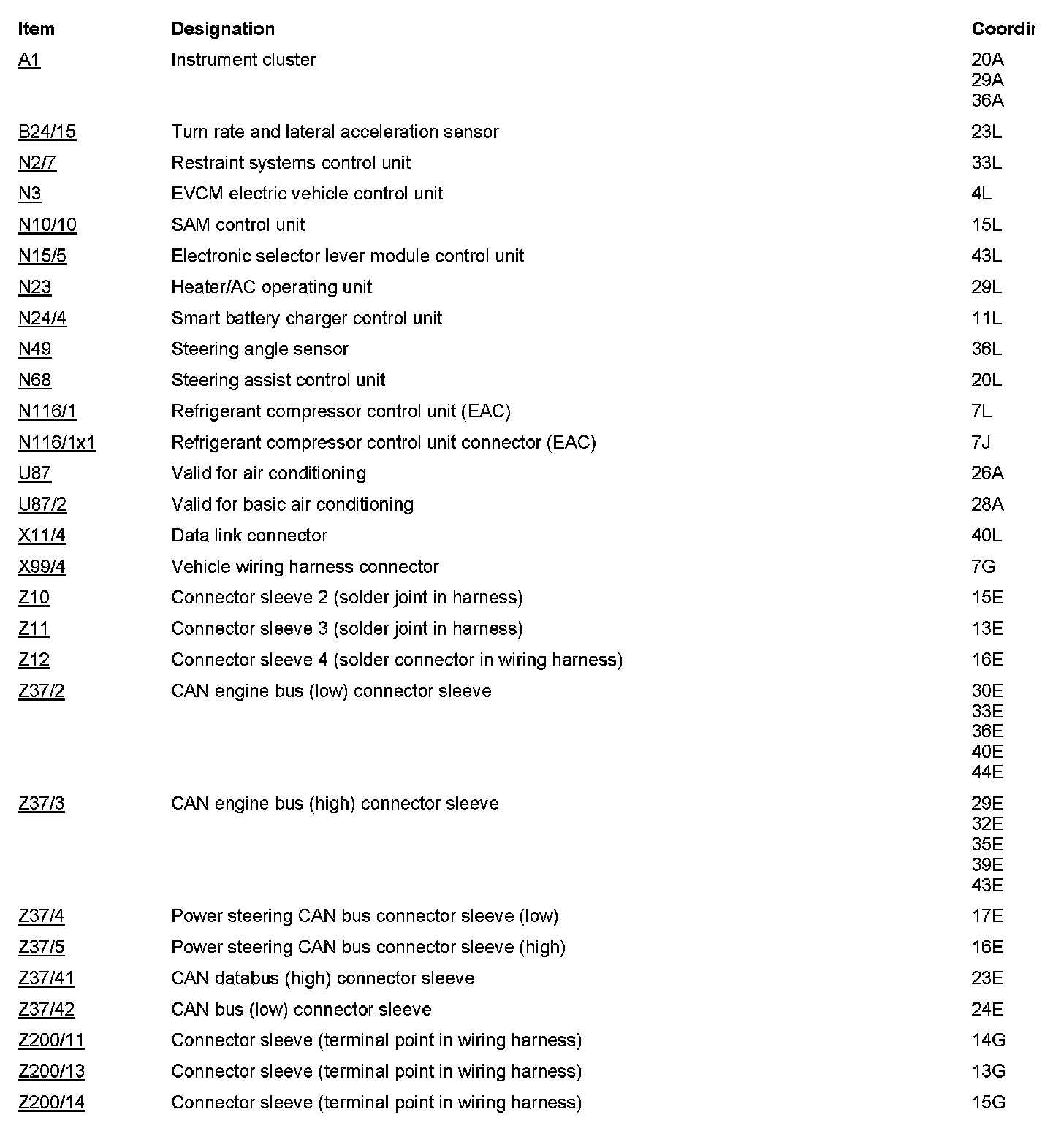

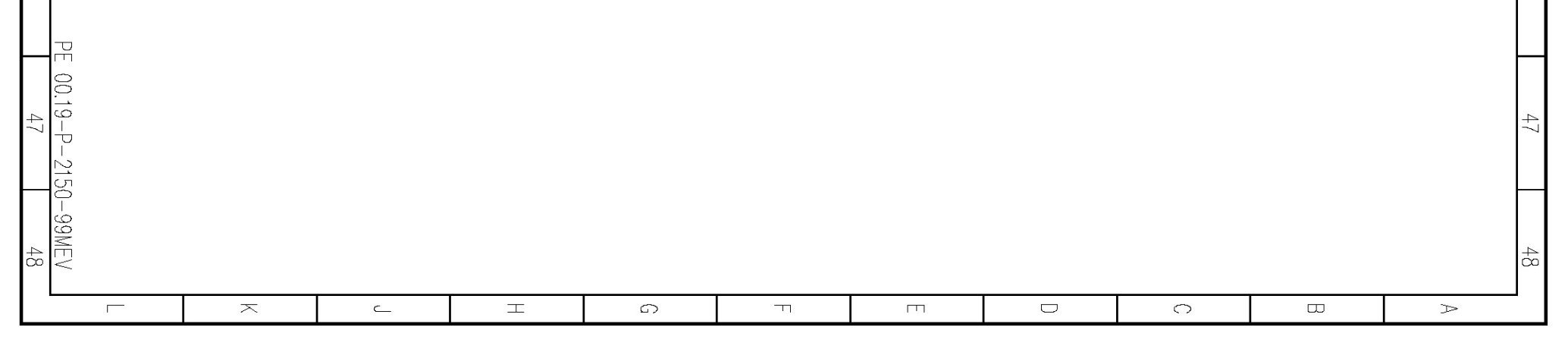

PE00.19-P-2150MEV CAN Bus

451 00 Multi-function Circuits
Model 451.391/ 491
